SN74AS286D

SN74AS286D Overview

This product is manufactured by Texas Instruments. This product has 1 circuit. Number of bits: 9 The product uses the 74AS logic family. SOIC-14 package/case type is utilized by this product. This product has a - 15 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 48 mA The propagation delay time is 15 ns. Supply Voltage - Max: 5.5 V Supply Voltage - Min: 4.5 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. Tube packaging for easy dispensing The height of the product is 1.58 mm. 8.65 mm long Texas Instruments is a trusted brand for quality electronics The product can operate at a maximum temperature of SMD/SMT. 4.5 V to 5.5 V operating supply voltage range Parity Functions product type 50 of 100 Logic ICs as subcategory 1. 0.004564 oz of Unit Weight

SN74AS286D Image

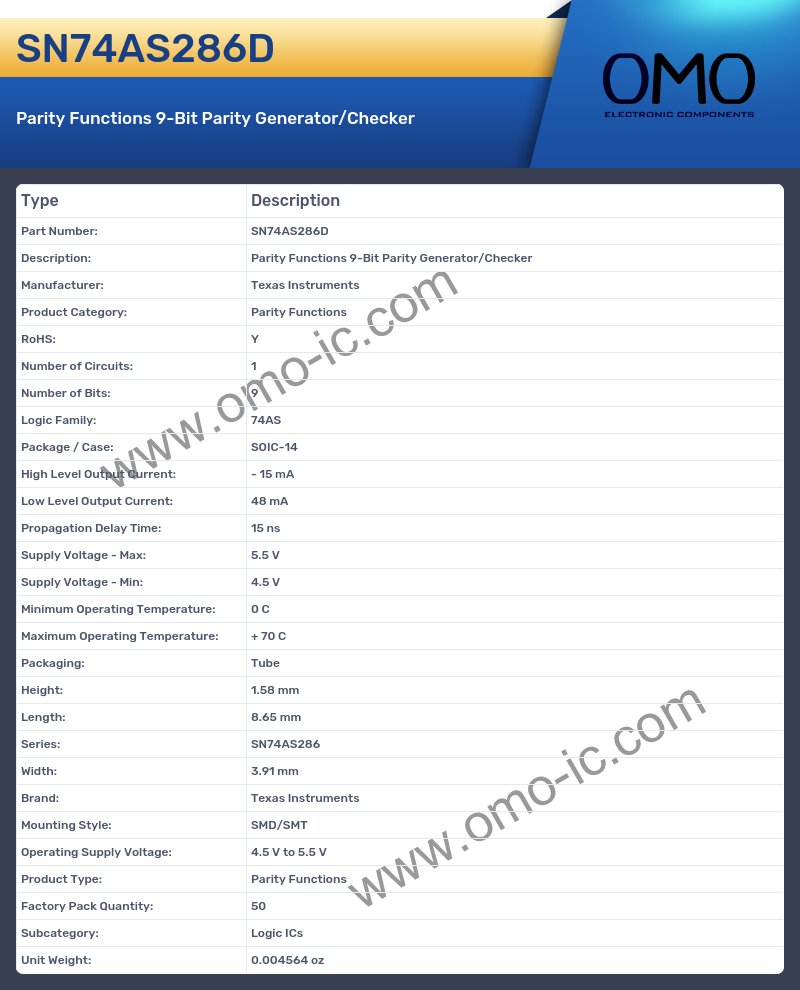

SN74AS286D Specifications

• Manufacturer: Texas Instruments
• Product Category: Parity Functions
• RoHS: Y
• Number of Circuits: 1
• Number of Bits: 9
• Logic Family: 74AS
• Package / Case: SOIC-14
• High Level Output Current: - 15 mA
• Low Level Output Current: 48 mA
• Propagation Delay Time: 15 ns
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 4.5 V
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Packaging: Tube
• Height: 1.58 mm
• Length: 8.65 mm
• Series: SN74AS286
• Width: 3.91 mm
• Brand: Texas Instruments
• Mounting Style: SMD/SMT
• Operating Supply Voltage: 4.5 V to 5.5 V
• Product Type: Parity Functions
• Factory Pack Quantity: 50
• Subcategory: Logic ICs
• Unit Weight: 0.004564 oz
