SN74F109DRE4

SN74F109DRE4 Overview

This product is manufactured by Texas Instruments. This product has 2 circuit. The product uses the F logic family. J-K Type Flip-Flop. Polarity type: Inverting/Non-Inverting TTL input type The output type is TTL. The propagation delay time is 8 ns. This product has a - 1 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 20 mA Supply Voltage - Min: 4.5 V Supply Voltage - Max: 5.5 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. The product can operate at a maximum temperature of SMD/SMT. SOP-16 package/case type is utilized by this product. Reel packaging for easy dispensing t's a J-K Type The height of the product is 1.58 mm. 9.9 mm long Texas Instruments is a trusted brand for quality electronics This product is equipped with 2 for efficient performance. 4.5 V to 5.5 V operating supply voltage range Flip Flops product type Set, Reset Reset Type 2500 of 100 Logic ICs as subcategory 1. 0.004998 oz of Unit Weight

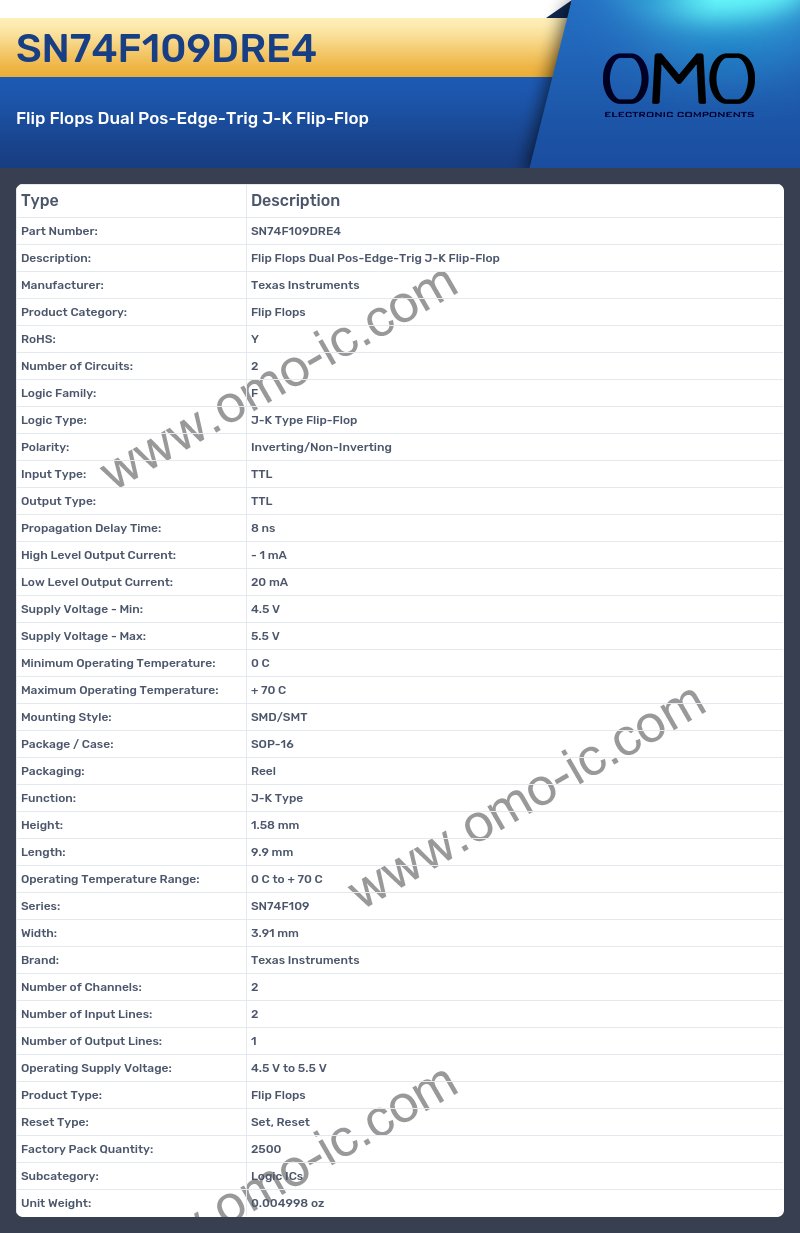

SN74F109DRE4 Image

SN74F109DRE4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Flip Flops
• RoHS: Y
• Number of Circuits: 2
• Logic Family: F
• Logic Type: J-K Type Flip-Flop
• Polarity: Inverting/Non-Inverting
• Input Type: TTL
• Output Type: TTL
• Propagation Delay Time: 8 ns
• High Level Output Current: - 1 mA
• Low Level Output Current: 20 mA
• Supply Voltage - Min: 4.5 V
• Supply Voltage - Max: 5.5 V
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Mounting Style: SMD/SMT
• Package / Case: SOP-16
• Packaging: Reel
• Function: J-K Type
• Height: 1.58 mm
• Length: 9.9 mm
• Operating Temperature Range: 0 C to + 70 C
• Series: SN74F109
• Width: 3.91 mm
• Brand: Texas Instruments
• Number of Channels: 2
• Number of Input Lines: 2
• Number of Output Lines: 1
• Operating Supply Voltage: 4.5 V to 5.5 V
• Product Type: Flip Flops
• Reset Type: Set, Reset
• Factory Pack Quantity: 2500
• Subcategory: Logic ICs
• Unit Weight: 0.004998 oz
