SN74GTLPH306DW

SN74GTLPH306DW Overview

This product is manufactured by Texas Instruments. The propagation delay time is 7.5 ns. Supply Voltage - Max: 3.45 V Supply Voltage - Min: 3.15 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-24 package/case type is utilized by this product. Tube packaging for easy dispensing The output type is 3-State. Texas Instruments is a trusted brand for quality electronics The product uses the GTLP logic family. CMOS. This product has a - 24 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 50 mA Translation - Voltage Levels product type 25 of 100 Logic ICs as subcategory 1. 0.022025 oz of Unit Weight

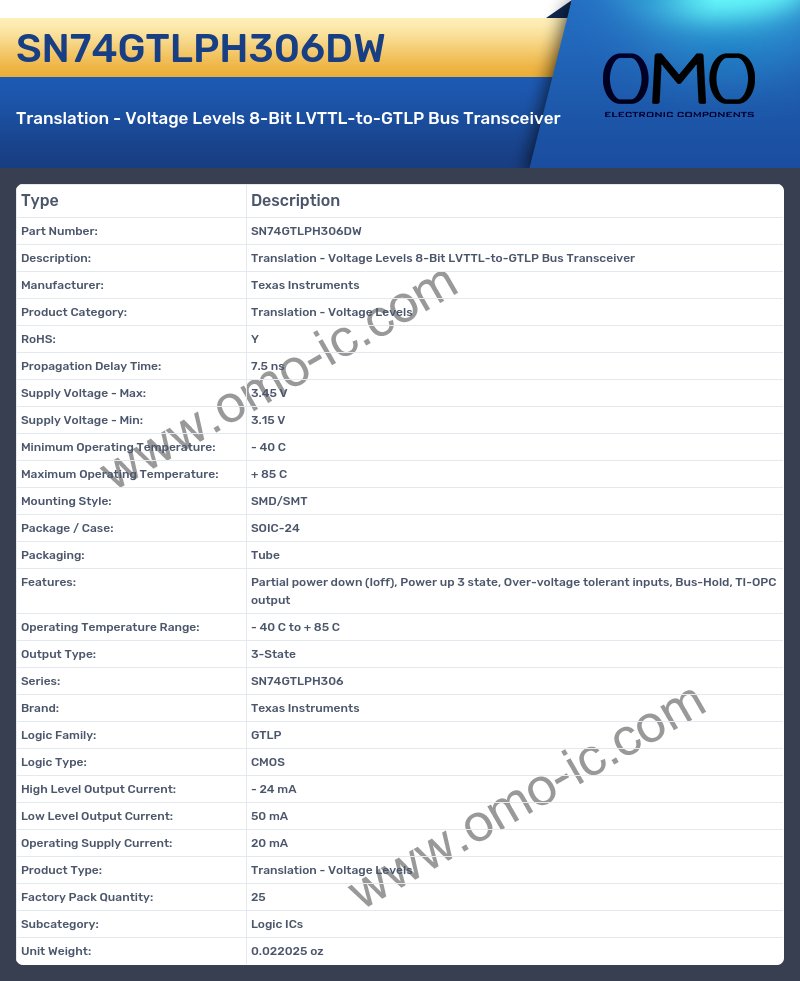

SN74GTLPH306DW Image

SN74GTLPH306DW Specifications

• Manufacturer: Texas Instruments
• Product Category: Translation - Voltage Levels
• RoHS: Y
• Propagation Delay Time: 7.5 ns
• Supply Voltage - Max: 3.45 V
• Supply Voltage - Min: 3.15 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-24
• Packaging: Tube
• Features: Partial power down (Ioff), Power up 3 state, Over-voltage tolerant inputs, Bus-Hold, TI-OPC output
• Operating Temperature Range: - 40 C to + 85 C
• Output Type: 3-State
• Series: SN74GTLPH306
• Brand: Texas Instruments
• Logic Family: GTLP
• Logic Type: CMOS
• High Level Output Current: - 24 mA
• Low Level Output Current: 50 mA
• Operating Supply Current: 20 mA
• Product Type: Translation - Voltage Levels
• Factory Pack Quantity: 25
• Subcategory: Logic ICs
• Unit Weight: 0.022025 oz
