SN74HC08PWT

SN74HC08PWT Overview

This product is manufactured by Texas Instruments. Single-Function Gate AND logic function The product uses the HC logic family. The product boasts a whopping 4 Gate gates for unparalleled processing power. This product has a - 5.2 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 5.2 mA The propagation delay time is 8 ns at 6 V. Supply Voltage - Max: 6 V Supply Voltage - Min: 2 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. TSSOP-14 package/case type is utilized by this product. Reel packaging for easy dispensing t's a AND The height of the product is 1.15 mm. CMOS input type 5 mm long Output current: 4 mA The output type is CMOS. Output Voltage is 6 V Texas Instruments is a trusted brand for quality electronics 2-Input AND. Number of bits: 4 bit 5 V operating supply voltage range Logic Gates product type 250 of 100 Logic ICs as subcategory 1. 0.002018 oz of Unit Weight

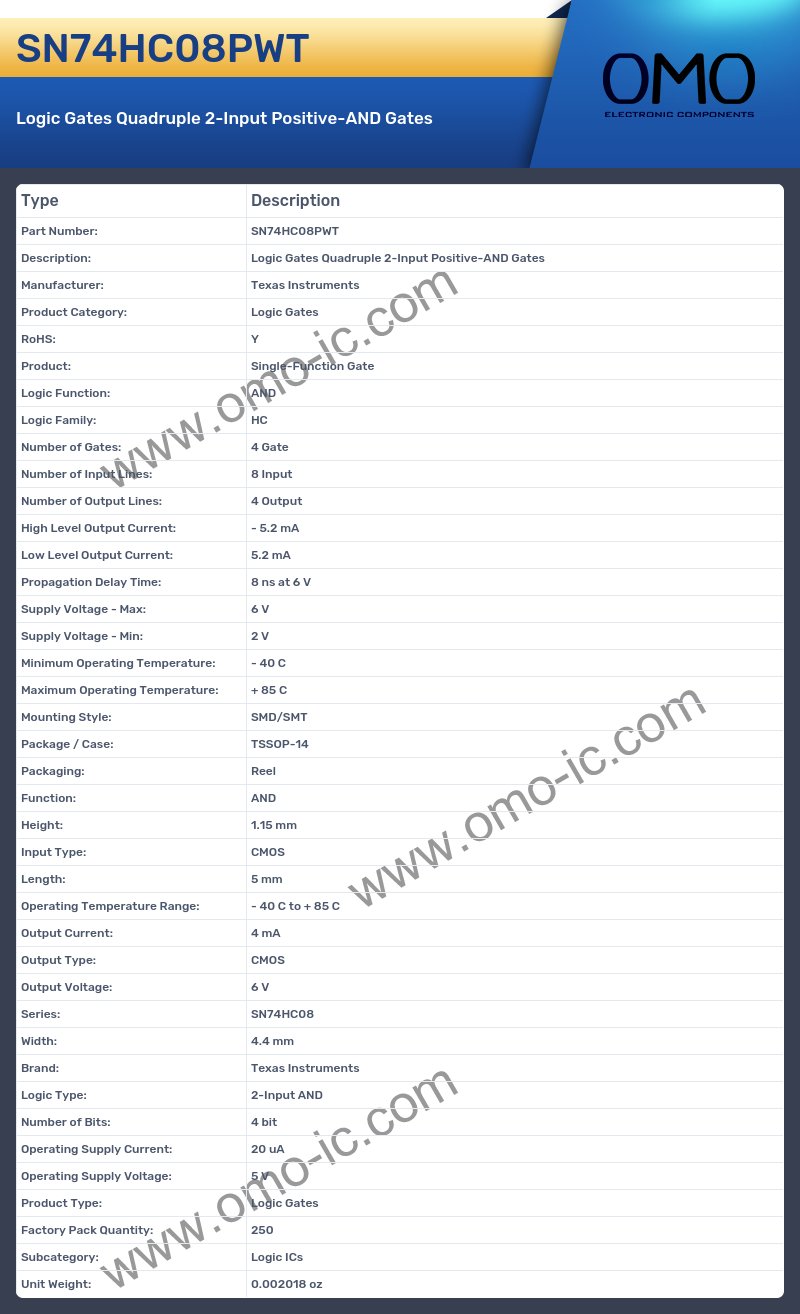

SN74HC08PWT Image

SN74HC08PWT Specifications

• Manufacturer: Texas Instruments
• Product Category: Logic Gates
• RoHS: Y
• Product: Single-Function Gate
• Logic Function: AND
• Logic Family: HC
• Number of Gates: 4 Gate
• Number of Input Lines: 8 Input
• Number of Output Lines: 4 Output
• High Level Output Current: - 5.2 mA
• Low Level Output Current: 5.2 mA
• Propagation Delay Time: 8 ns at 6 V
• Supply Voltage - Max: 6 V
• Supply Voltage - Min: 2 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-14
• Packaging: Reel
• Function: AND
• Height: 1.15 mm
• Input Type: CMOS
• Length: 5 mm
• Operating Temperature Range: - 40 C to + 85 C
• Output Current: 4 mA
• Output Type: CMOS
• Output Voltage: 6 V
• Series: SN74HC08
• Width: 4.4 mm
• Brand: Texas Instruments
• Logic Type: 2-Input AND
• Number of Bits: 4 bit
• Operating Supply Current: 20 uA
• Operating Supply Voltage: 5 V
• Product Type: Logic Gates
• Factory Pack Quantity: 250
• Subcategory: Logic ICs
• Unit Weight: 0.002018 oz
