SN74LS156DR

SN74LS156DR Overview

This product is manufactured by Texas Instruments. Decoders / Demultiplexers The product uses the LS logic family. The propagation delay time is 27 ns. Supply Voltage - Min: 4.75 V Supply Voltage - Max: 5.25 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. The product can operate at a maximum temperature of SMD/SMT. SOP-16 package/case type is utilized by this product. Reel packaging for easy dispensing t's a Decoder/Demultiplexer The height of the product is 1.58 mm. 9.9 mm long This product has Dual circuit. Texas Instruments is a trusted brand for quality electronics Decoders/Demultiplexers. Maximum supply current: 6.1 mA This product has a - 0.1 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 8 mA The Maximum Clock Frequency of this product is 35 MHz. 5 V operating supply voltage range Encoders, Decoders, Multiplexers & Demultiplexers product type 2500 of 100 Logic ICs as subcategory 1. 0.004998 oz of Unit Weight

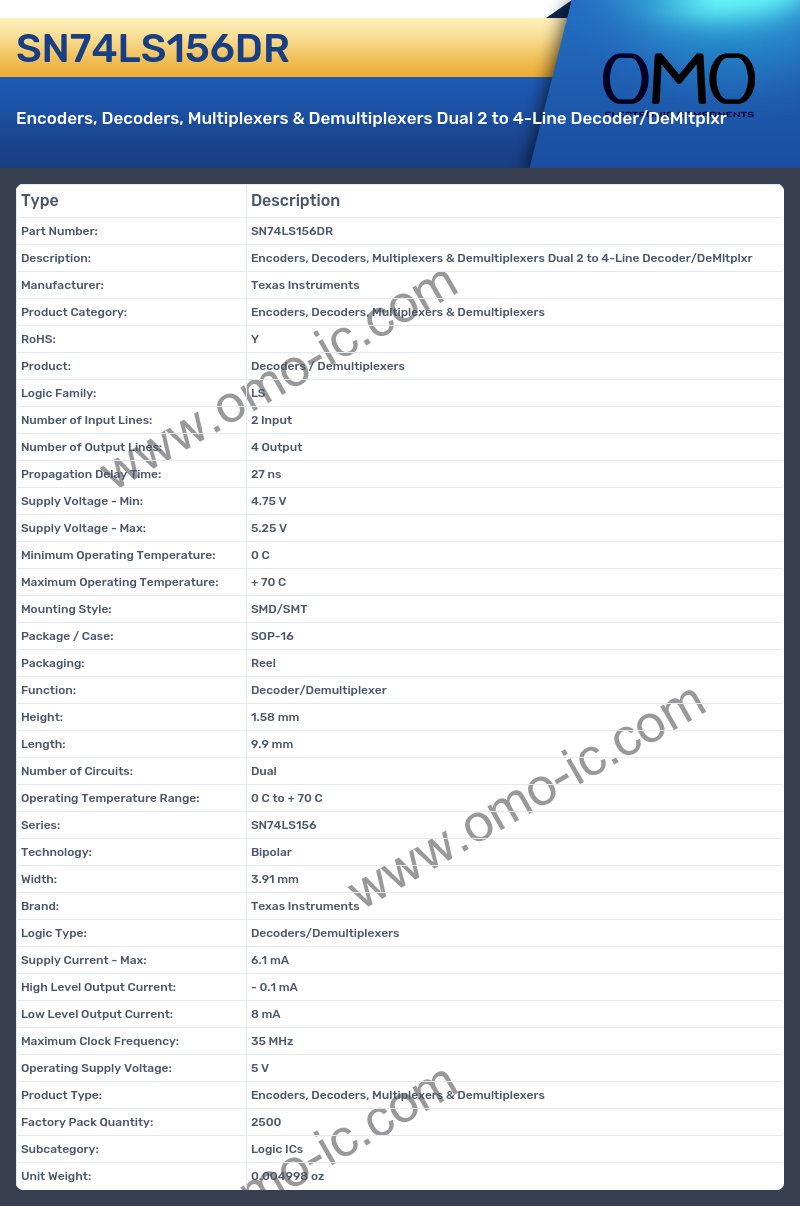

SN74LS156DR Image

SN74LS156DR Specifications

• Manufacturer: Texas Instruments
• Product Category: Encoders, Decoders, Multiplexers & Demultiplexers
• RoHS: Y
• Product: Decoders / Demultiplexers
• Logic Family: LS
• Number of Input Lines: 2 Input
• Number of Output Lines: 4 Output
• Propagation Delay Time: 27 ns
• Supply Voltage - Min: 4.75 V
• Supply Voltage - Max: 5.25 V
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Mounting Style: SMD/SMT
• Package / Case: SOP-16
• Packaging: Reel
• Function: Decoder/Demultiplexer
• Height: 1.58 mm
• Length: 9.9 mm
• Number of Circuits: Dual
• Operating Temperature Range: 0 C to + 70 C
• Series: SN74LS156
• Technology: Bipolar
• Width: 3.91 mm
• Brand: Texas Instruments
• Logic Type: Decoders/Demultiplexers
• Supply Current - Max: 6.1 mA
• High Level Output Current: - 0.1 mA
• Low Level Output Current: 8 mA
• Maximum Clock Frequency: 35 MHz
• Operating Supply Voltage: 5 V
• Product Type: Encoders, Decoders, Multiplexers & Demultiplexers
• Factory Pack Quantity: 2500
• Subcategory: Logic ICs
• Unit Weight: 0.004998 oz
