SN74LS259BDR

SN74LS259BDR Overview

This product is manufactured by Texas Instruments. This product has 1 Circuit circuit. Serial In/Parallel Out (SIPO) Shift Register. The product uses the 74LS logic family. Polarity type: Non-Inverting This product has a - 400 uA, ensuring reliable performance in demanding applications. Low Level Output Current is 32 mA The propagation delay time is 30 ns at 5 V. Supply Voltage - Max: 5.25 V Supply Voltage - Min: 4.75 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. SOP-16 package/case type is utilized by this product. Reel packaging for easy dispensing t's a Addressable The height of the product is 1.58 mm. 9.9 mm long This device belongs to the D-Type type. Texas Instruments is a trusted brand for quality electronics The product can operate at a maximum temperature of SMD/SMT. This product is equipped with 8 Channels for efficient performance. 4.75 V to 5.25 V operating supply voltage range Latches product type Master Reset Reset Type 2500 of 100 Logic ICs as subcategory 1. 0.004998 oz of Unit Weight

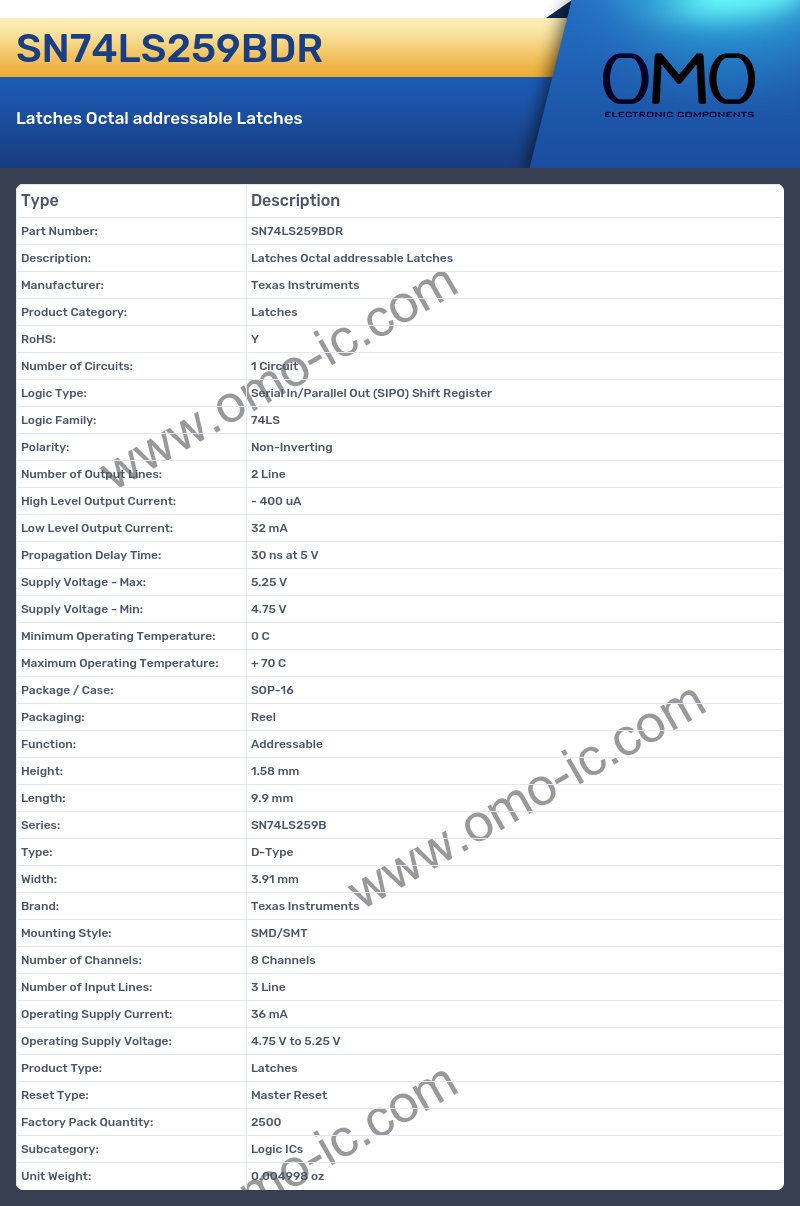

SN74LS259BDR Image

SN74LS259BDR Specifications

• Manufacturer: Texas Instruments
• Product Category: Latches
• RoHS: Y
• Number of Circuits: 1 Circuit
• Logic Type: Serial In/Parallel Out (SIPO) Shift Register
• Logic Family: 74LS
• Polarity: Non-Inverting
• Number of Output Lines: 2 Line
• High Level Output Current: - 400 uA
• Low Level Output Current: 32 mA
• Propagation Delay Time: 30 ns at 5 V
• Supply Voltage - Max: 5.25 V
• Supply Voltage - Min: 4.75 V
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Package / Case: SOP-16
• Packaging: Reel
• Function: Addressable
• Height: 1.58 mm
• Length: 9.9 mm
• Series: SN74LS259B
• Type: D-Type
• Width: 3.91 mm
• Brand: Texas Instruments
• Mounting Style: SMD/SMT
• Number of Channels: 8 Channels
• Number of Input Lines: 3 Line
• Operating Supply Current: 36 mA
• Operating Supply Voltage: 4.75 V to 5.25 V
• Product Type: Latches
• Reset Type: Master Reset
• Factory Pack Quantity: 2500
• Subcategory: Logic ICs
• Unit Weight: 0.004998 oz
