SN74LS365AD

SN74LS365AD Overview

This product is manufactured by Texas Instruments. Polarity type: Non-Inverting Supply Voltage - Max: 5.25 V Supply Voltage - Min: 4.75 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. The product can operate at a maximum temperature of SMD/SMT. SOP-16 package/case type is utilized by this product. Tube packaging for easy dispensing t's a Buffer/Line Driver The height of the product is 1.5 mm (Max). 10 mm (Max) long The output type is 3-State. Texas Instruments is a trusted brand for quality electronics The product uses the LS logic family. Bipolar. This product is equipped with 5 for efficient performance. This product has a - 2.6 mA, ensuring reliable performance in demanding applications. Single-Ended is the input signal type. Low Level Output Current is 24 mA 4.75 V to 5.25 V operating supply voltage range Buffers & Line Drivers product type The propagation delay time is 22 ns at 5 V. 40 of 100 Logic ICs as subcategory 1. 0.004998 oz of Unit Weight

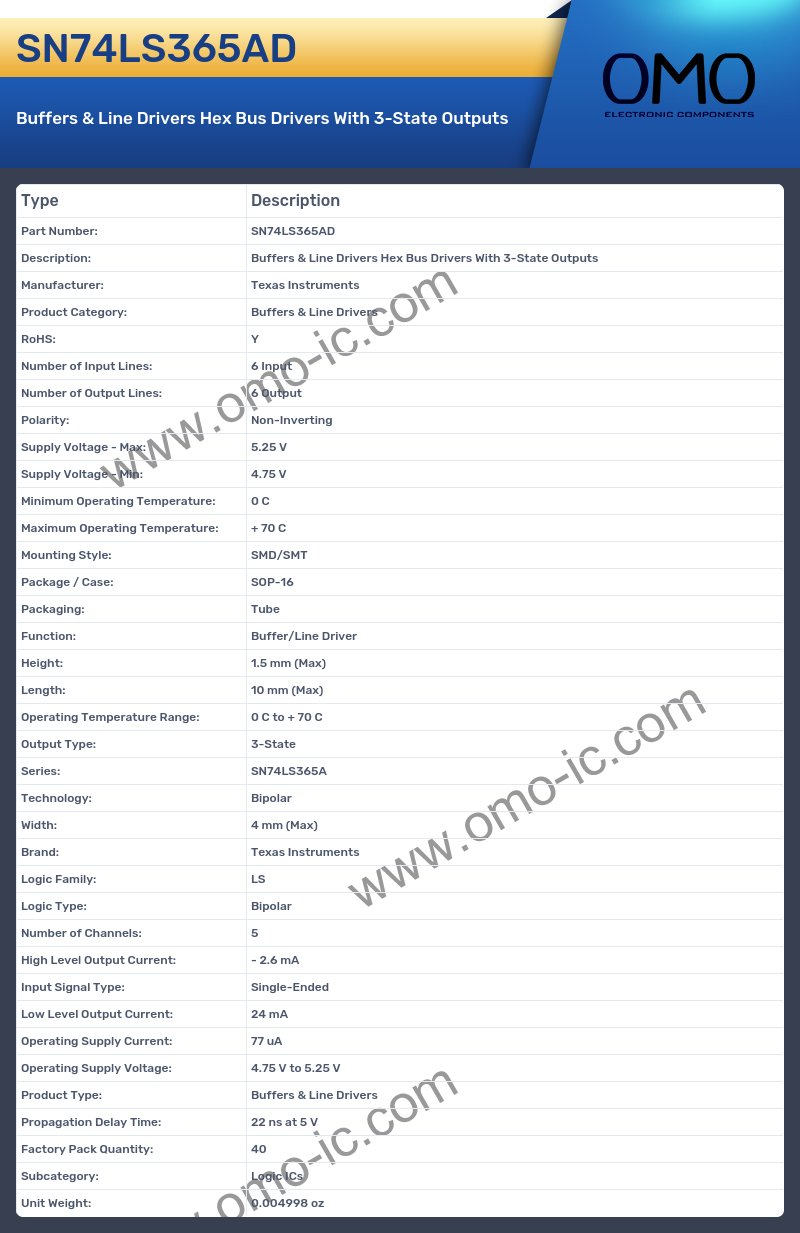

SN74LS365AD Image

SN74LS365AD Specifications

• Manufacturer: Texas Instruments
• Product Category: Buffers & Line Drivers
• RoHS: Y
• Number of Input Lines: 6 Input
• Number of Output Lines: 6 Output
• Polarity: Non-Inverting
• Supply Voltage - Max: 5.25 V
• Supply Voltage - Min: 4.75 V
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Mounting Style: SMD/SMT
• Package / Case: SOP-16
• Packaging: Tube
• Function: Buffer/Line Driver
• Height: 1.5 mm (Max)
• Length: 10 mm (Max)
• Operating Temperature Range: 0 C to + 70 C
• Output Type: 3-State
• Series: SN74LS365A
• Technology: Bipolar
• Width: 4 mm (Max)
• Brand: Texas Instruments
• Logic Family: LS
• Logic Type: Bipolar
• Number of Channels: 5
• High Level Output Current: - 2.6 mA
• Input Signal Type: Single-Ended
• Low Level Output Current: 24 mA
• Operating Supply Current: 77 uA
• Operating Supply Voltage: 4.75 V to 5.25 V
• Product Type: Buffers & Line Drivers
• Propagation Delay Time: 22 ns at 5 V
• Factory Pack Quantity: 40
• Subcategory: Logic ICs
• Unit Weight: 0.004998 oz
