| Mfr. #: | SN74LS684N |
|---|---|
| Hersteller: | Texas Instruments |
| Beschreibung: | Logic Comparators Octal binary or BCD Magnitude Comparator |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | SN74LS684N Datenblatt |
This product is manufactured by Texas Instruments. The comparator type of this product is Magnitude/Identity for versatile use. Number of bits: 8 bit A = B, A > B logic function The output type is Active Low. Supply Voltage - Max: 5.25 V Supply Voltage - Min: 4.85 V Maximum supply current: 65 mA The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. The propagation delay time is 30 ns. The product can operate at a maximum temperature of Through Hole. PDIP-20 package/case type is utilized by this product. Tube packaging for easy dispensing Digital Comparators Texas Instruments is a trusted brand for quality electronics 4.85 V to 5.25 V operating supply voltage range Polarity type: Inverting Logic Comparators product type 20 of 100 Logic ICs as subcategory 1. 0.042297 oz of Unit Weight
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

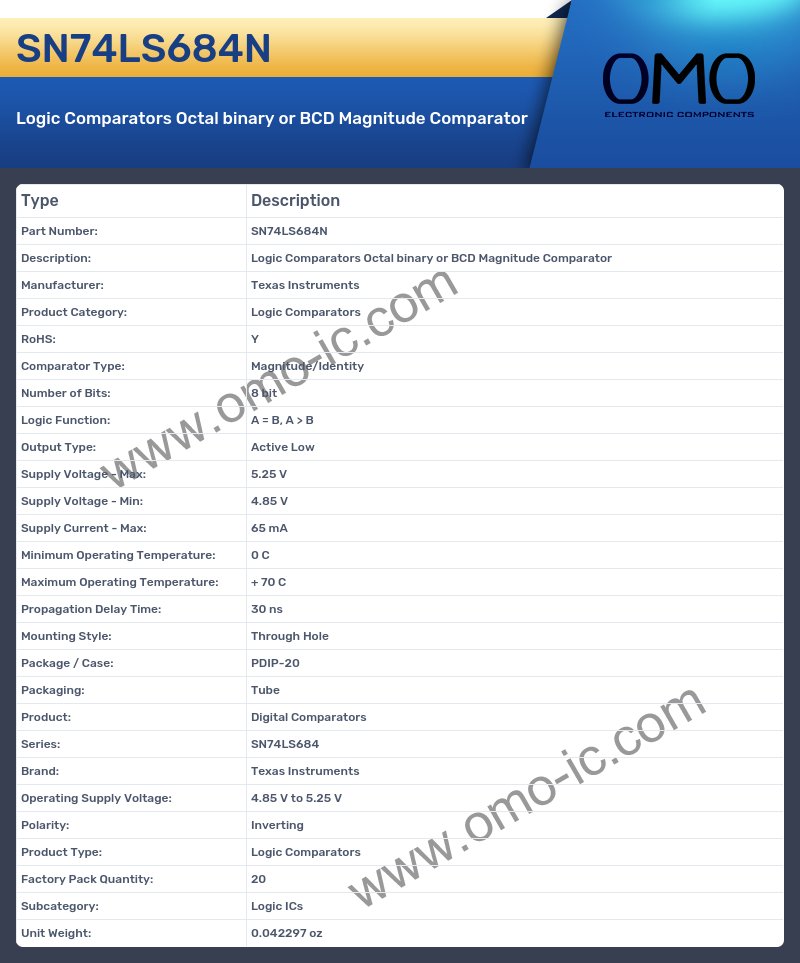

SN74LS684N Specifications
A: At what frequency does the Manufacturer?
Q: The product Manufacturer is Texas Instruments.
A: At what frequency does the Comparator Type?
Q: The product Comparator Type is Magnitude/Identity.
A: What is the Number of Bits of the product?
Q: The Number of Bits of the product is 8 bit.
A: Is the cutoff frequency of the product Logic Function?
Q: Yes, the product's Logic Function is indeed A = B, A > B
A: What is the Output Type of the product?
Q: The Output Type of the product is Active Low.
A: What is the Supply Voltage - Max of the product?
Q: The Supply Voltage - Max of the product is 5.25 V.
A: Is the cutoff frequency of the product Supply Voltage - Min?
Q: Yes, the product's Supply Voltage - Min is indeed 4.85 V
A: Is the cutoff frequency of the product Supply Current - Max?
Q: Yes, the product's Supply Current - Max is indeed 65 mA
A: What is the Minimum Operating Temperature of the product?
Q: The Minimum Operating Temperature of the product is 0 C.
A: What is the Maximum Operating Temperature of the product?
Q: The Maximum Operating Temperature of the product is + 70 C.
A: Is the cutoff frequency of the product Propagation Delay Time?
Q: Yes, the product's Propagation Delay Time is indeed 30 ns
A: At what frequency does the Mounting Style?
Q: The product Mounting Style is Through Hole.
A: At what frequency does the Package / Case?
Q: The product Package / Case is PDIP-20.
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Tube
A: At what frequency does the Product?
Q: The product Product is Digital Comparators.
A: Is the cutoff frequency of the product Brand?
Q: Yes, the product's Brand is indeed Texas Instruments
A: At what frequency does the Operating Supply Voltage?
Q: The product Operating Supply Voltage is 4.85 V to 5.25 V.
A: At what frequency does the Polarity?
Q: The product Polarity is Inverting.
A: What is the Product Type of the product?
Q: The Product Type of the product is Logic Comparators.
A: Is the cutoff frequency of the product Factory Pack Quantity?
Q: Yes, the product's Factory Pack Quantity is indeed 20
A: At what frequency does the Subcategory?
Q: The product Subcategory is Logic ICs.
A: At what frequency does the Unit Weight?
Q: The product Unit Weight is 0.042297 oz.
