Mfr. #: | SN74LV20ADG4 |
---|---|
Hersteller: | Texas Instruments |
Beschreibung: | Logic Gates Dual 4 Input Pos NAND Gate |
Lebenszyklus: | Neu von diesem Hersteller. |
Datenblatt: | SN74LV20ADG4 Datenblatt |
This product is manufactured by Texas Instruments. Single-Function Gate NAND logic function The product uses the LV-A logic family. The product boasts a whopping 2 Gate gates for unparalleled processing power. This product has a - 12 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 12 mA The propagation delay time is 8 ns. Supply Voltage - Max: 5.5 V Supply Voltage - Min: 2 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-14 package/case type is utilized by this product. Tube packaging for easy dispensing t's a NAND The height of the product is 1.58 mm. TTL input type 8.65 mm long The output type is TTL. Texas Instruments is a trusted brand for quality electronics CMOS. 3.3 V operating supply voltage range Logic Gates product type 50 of 100 Logic ICs as subcategory 1. 0.004564 oz of Unit Weight
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

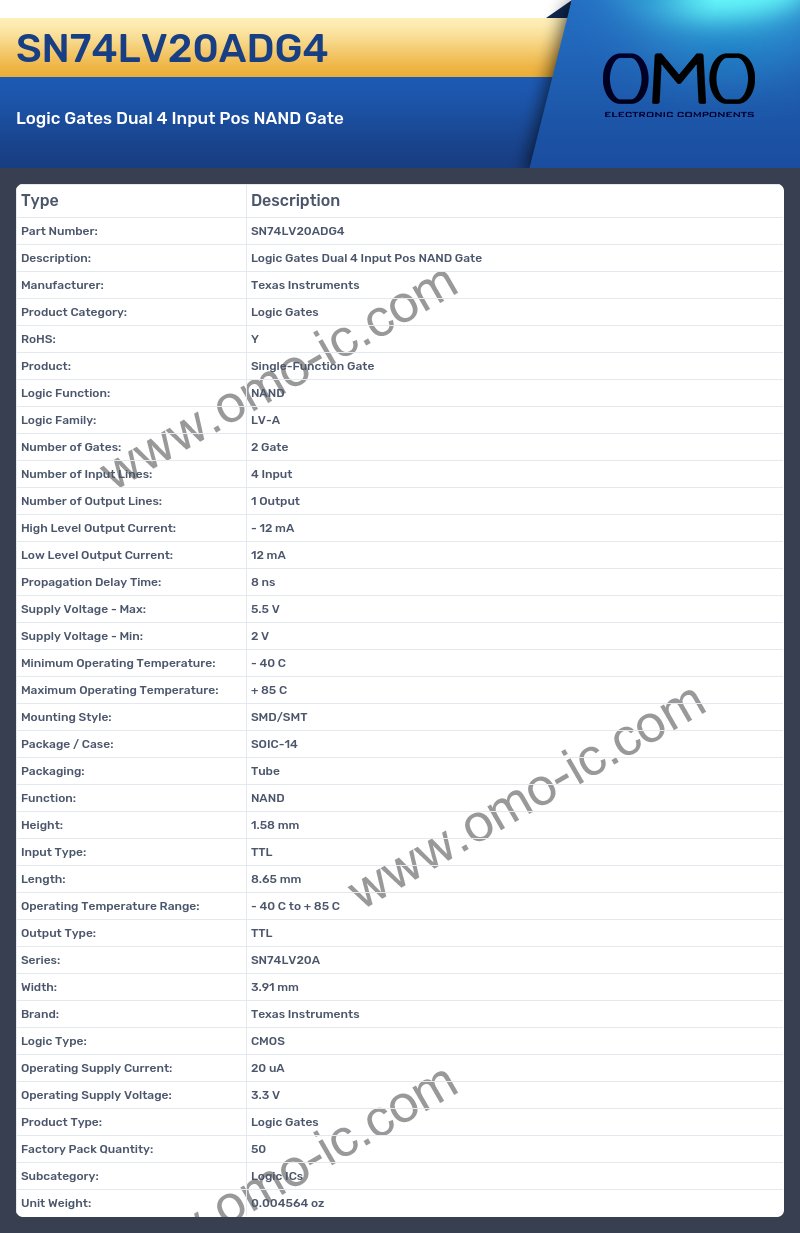

SN74LV20ADG4 Specifications
A: Is the cutoff frequency of the product Manufacturer?
Q: Yes, the product's Manufacturer is indeed Texas Instruments
A: What is the Product of the product?
Q: The Product of the product is Single-Function Gate.
A: What is the Logic Function of the product?
Q: The Logic Function of the product is NAND.
A: At what frequency does the Logic Family?
Q: The product Logic Family is LV-A.
A: What is the Number of Gates of the product?
Q: The Number of Gates of the product is 2 Gate.
A: What is the High Level Output Current of the product?
Q: The High Level Output Current of the product is - 12 mA.
A: Is the cutoff frequency of the product Low Level Output Current?
Q: Yes, the product's Low Level Output Current is indeed 12 mA
A: What is the Propagation Delay Time of the product?
Q: The Propagation Delay Time of the product is 8 ns.
A: At what frequency does the Supply Voltage - Max?
Q: The product Supply Voltage - Max is 5.5 V.
A: What is the Supply Voltage - Min of the product?
Q: The Supply Voltage - Min of the product is 2 V.
A: Is the cutoff frequency of the product Minimum Operating Temperature?
Q: Yes, the product's Minimum Operating Temperature is indeed - 40 C
A: Is the cutoff frequency of the product Maximum Operating Temperature?
Q: Yes, the product's Maximum Operating Temperature is indeed + 85 C
A: Is the cutoff frequency of the product Mounting Style?
Q: Yes, the product's Mounting Style is indeed SMD/SMT
A: At what frequency does the Package / Case?
Q: The product Package / Case is SOIC-14.
A: What is the Packaging of the product?
Q: The Packaging of the product is Tube.
A: At what frequency does the Function?
Q: The product Function is NAND.
A: At what frequency does the Height?
Q: The product Height is 1.58 mm.
A: At what frequency does the Input Type?
Q: The product Input Type is TTL.
A: At what frequency does the Length?
Q: The product Length is 8.65 mm.
A: What is the Output Type of the product?
Q: The Output Type of the product is TTL.
A: Is the cutoff frequency of the product Brand?
Q: Yes, the product's Brand is indeed Texas Instruments
A: What is the Logic Type of the product?
Q: The Logic Type of the product is CMOS.
A: At what frequency does the Operating Supply Voltage?
Q: The product Operating Supply Voltage is 3.3 V.
A: At what frequency does the Product Type?
Q: The product Product Type is Logic Gates.
A: What is the Factory Pack Quantity of the product?
Q: The Factory Pack Quantity of the product is 50.
A: At what frequency does the Subcategory?
Q: The product Subcategory is Logic ICs.
A: Is the cutoff frequency of the product Unit Weight?
Q: Yes, the product's Unit Weight is indeed 0.004564 oz
