SSM2302CPZ-R2

SSM2302CPZ-R2 Overview

This product is manufactured by Analog Devices Inc.. Audio Amplifiers Product Class is Class-D Output power: 1.2 W The product can operate at a maximum temperature of SMD/SMT. This device belongs to the 2-Channel Stereo type. LFCSP-16 package/case type is utilized by this product. Load impedance of 8 Ohms is supported. THD plus Noise value is 0.1 %. Supply Voltage - Max: 5 V Supply Voltage - Min: 2.5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Reel packaging for easy dispensing The height of the product is 0.85 mm. Differential input type 3 mm long Supply Type: Single Analog Devices is a trusted brand for quality electronics 6 dB, 12 dB is 11.5 dB. This product is equipped with 2 Channel for efficient performance. Maximum supply current: 8 mA This product has a 55 dB of 50 dB, ensuring reliable signal acquisition. SSM2302Z-EVAL is a versatile development platform for hardware and software Yes regarding Moisture Sensitivity 2.5 V to 5 V operating supply voltage range Output signal type is Differential Audio Amplifiers product type This product has a 85 dB of 50 dB, providing reliable power supply noise rejection. 250 of 100 Audio ICs as subcategory

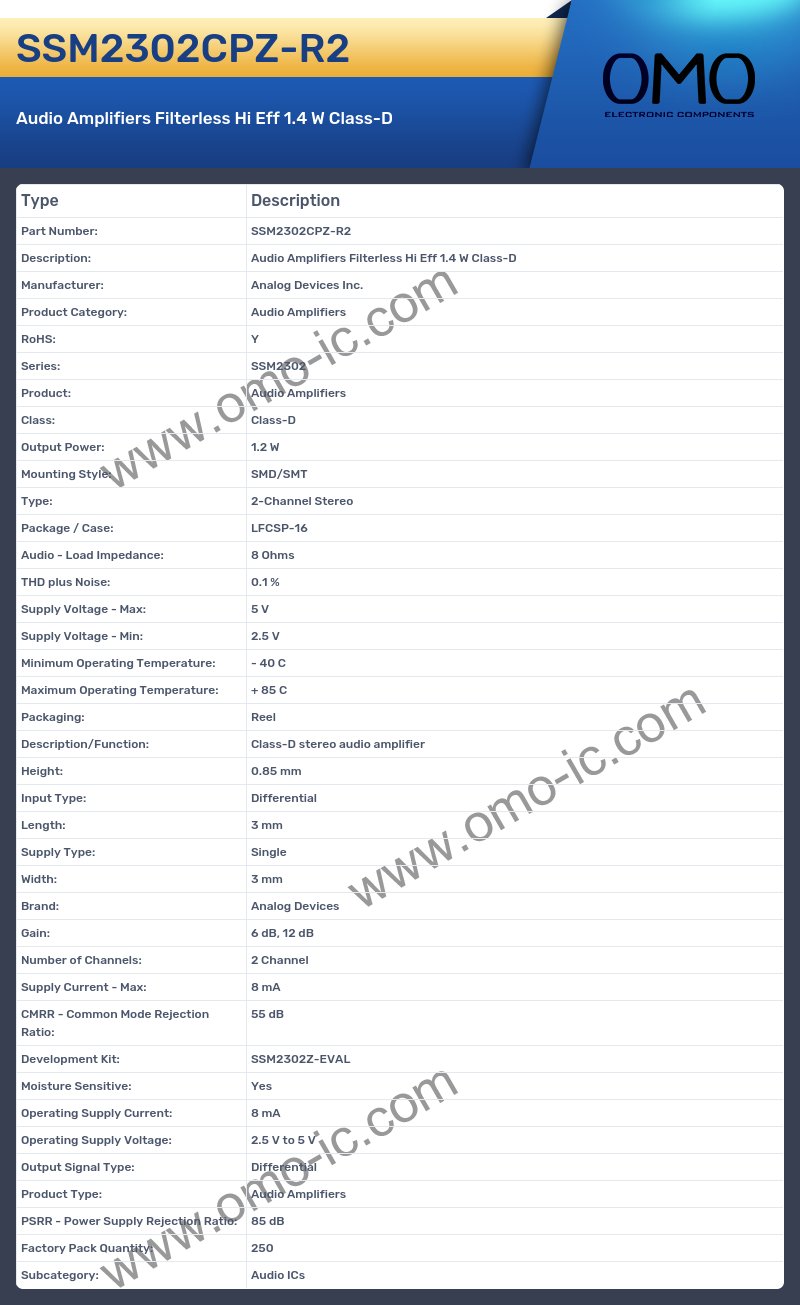

SSM2302CPZ-R2 Image

SSM2302CPZ-R2 Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Audio Amplifiers
• RoHS: Y
• Series: SSM2302
• Product: Audio Amplifiers
• Class: Class-D
• Output Power: 1.2 W
• Mounting Style: SMD/SMT
• Type: 2-Channel Stereo
• Package / Case: LFCSP-16
• Audio - Load Impedance: 8 Ohms
• THD plus Noise: 0.1 %
• Supply Voltage - Max: 5 V
• Supply Voltage - Min: 2.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Reel
• Description/Function: Class-D stereo audio amplifier
• Height: 0.85 mm
• Input Type: Differential
• Length: 3 mm
• Supply Type: Single
• Width: 3 mm
• Brand: Analog Devices
• Gain: 6 dB, 12 dB
• Number of Channels: 2 Channel
• Supply Current - Max: 8 mA
• CMRR - Common Mode Rejection Ratio: 55 dB
• Development Kit: SSM2302Z-EVAL
• Moisture Sensitive: Yes
• Operating Supply Current: 8 mA
• Operating Supply Voltage: 2.5 V to 5 V
• Output Signal Type: Differential
• Product Type: Audio Amplifiers
• PSRR - Power Supply Rejection Ratio: 85 dB
• Factory Pack Quantity: 250
• Subcategory: Audio ICs
