STB25NF06AG

STB25NF06AG Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. TO-263-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 60 V 19 A continuous drain current Rds On value of 56 mOhms Gate-Source Threshold Voltage Range: 2 V Gate-Source Voltage: 20 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 175 C. 50 W This product has a Single configuration. The Channel Mode is set to Enhancement. The AEC-Q101 Qualification The product's STripFET is Blue Gecko. The Transistor Type is 1 N-Channel. STMicroelectronics is a trusted brand for quality electronics 15 ns fall time MOSFET product type Rise Time is 27 ns. 1000 of 100 MOSFETs as subcategory Turn-off delay time is 28 ns. The typical turn-on delay time is 8 ns. 1. 0.077603 oz of Unit Weight

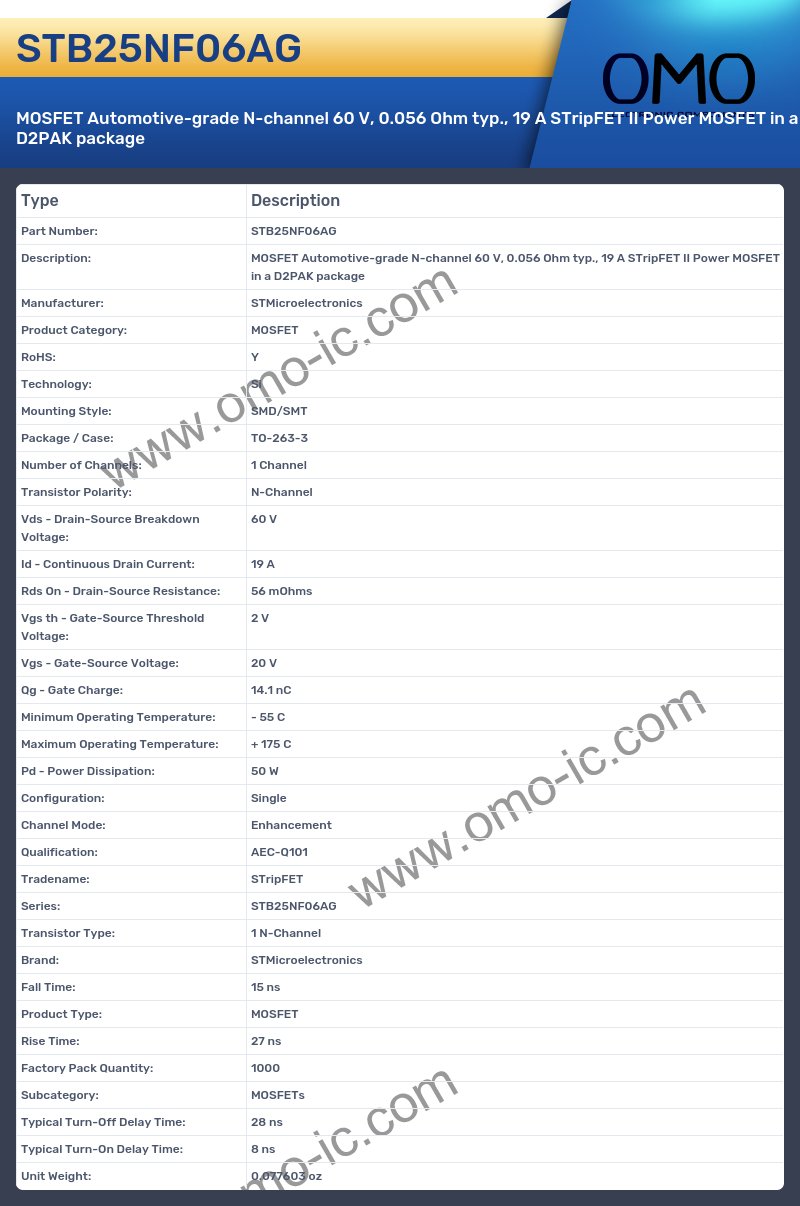

STB25NF06AG Image

STB25NF06AG Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: TO-263-3
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 60 V
• Id - Continuous Drain Current: 19 A
• Rds On - Drain-Source Resistance: 56 mOhms
• Vgs th - Gate-Source Threshold Voltage: 2 V
• Vgs - Gate-Source Voltage: 20 V
• Qg - Gate Charge: 14.1 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 175 C
• Pd - Power Dissipation: 50 W
• Configuration: Single
• Channel Mode: Enhancement
• Qualification: AEC-Q101
• Tradename: STripFET
• Series: STB25NF06AG
• Transistor Type: 1 N-Channel
• Brand: STMicroelectronics
• Fall Time: 15 ns
• Product Type: MOSFET
• Rise Time: 27 ns
• Factory Pack Quantity: 1000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 28 ns
• Typical Turn-On Delay Time: 8 ns
• Unit Weight: 0.077603 oz
