STGB20N45LZAG

STGB20N45LZAG Overview

This product is manufactured by STMicroelectronics. D2PAK-3 package/case type is utilized by this product. The product can operate at a maximum temperature of SMD/SMT. The maximum 450 V. The 1.25 V. Maximum gate emitter voltage is 16 V Continuous Collector Current at 25 C is 25 A 150 W The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 175 C. The AEC-Q101 Qualification Max continuous collector current of 25 A STMicroelectronics is a trusted brand for quality electronics Gate-Emitter Leakage Current: 625 uA IGBT Transistors product type 1000 of 100 IGBTs as subcategory

STGB20N45LZAG Image

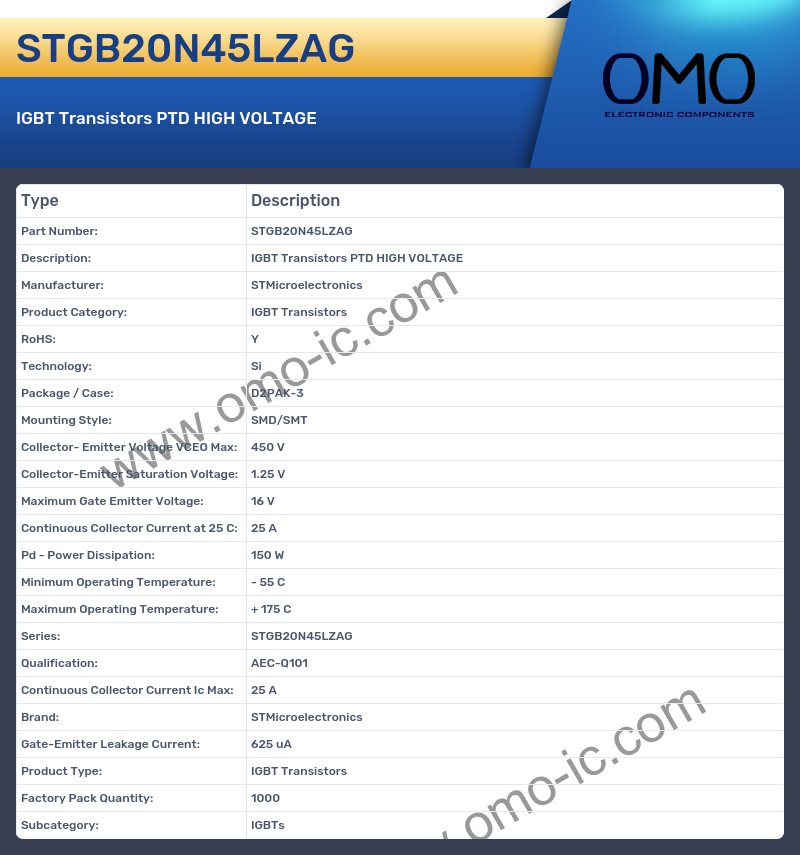

STGB20N45LZAG Specifications

• Manufacturer: STMicroelectronics
• Product Category: IGBT Transistors
• RoHS: Y
• Technology: Si
• Package / Case: D2PAK-3
• Mounting Style: SMD/SMT
• Collector- Emitter Voltage VCEO Max: 450 V
• Collector-Emitter Saturation Voltage: 1.25 V
• Maximum Gate Emitter Voltage: 16 V
• Continuous Collector Current at 25 C: 25 A
• Pd - Power Dissipation: 150 W
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 175 C
• Series: STGB20N45LZAG
• Qualification: AEC-Q101
• Continuous Collector Current Ic Max: 25 A
• Brand: STMicroelectronics
• Gate-Emitter Leakage Current: 625 uA
• Product Type: IGBT Transistors
• Factory Pack Quantity: 1000
• Subcategory: IGBTs
