STI55NF03L

STI55NF03L Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of Through Hole. TO-262-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 30 V 55 A continuous drain current Rds On value of 10 mOhms Gate-Source Threshold Voltage Range: 1.5 V Gate-Source Voltage: 16 V The minimum operating temperature of this product is - 60 C. The product can operate at a maximum temperature of + 175 C. 80 W This product has a Single configuration. The Channel Mode is set to Enhancement. The AEC-Q101 Qualification The product's STripFET is Blue Gecko. Tube packaging for easy dispensing The height of the product is 4.6 mm. 10.4 mm long The Transistor Type is 1 N-Channel. STMicroelectronics is a trusted brand for quality electronics 50 ns fall time MOSFET product type Rise Time is 400 ns. 1000 of 100 MOSFETs as subcategory Turn-off delay time is 25 ns. The typical turn-on delay time is 28 ns. 1. 0.073511 oz of Unit Weight

STI55NF03L Image

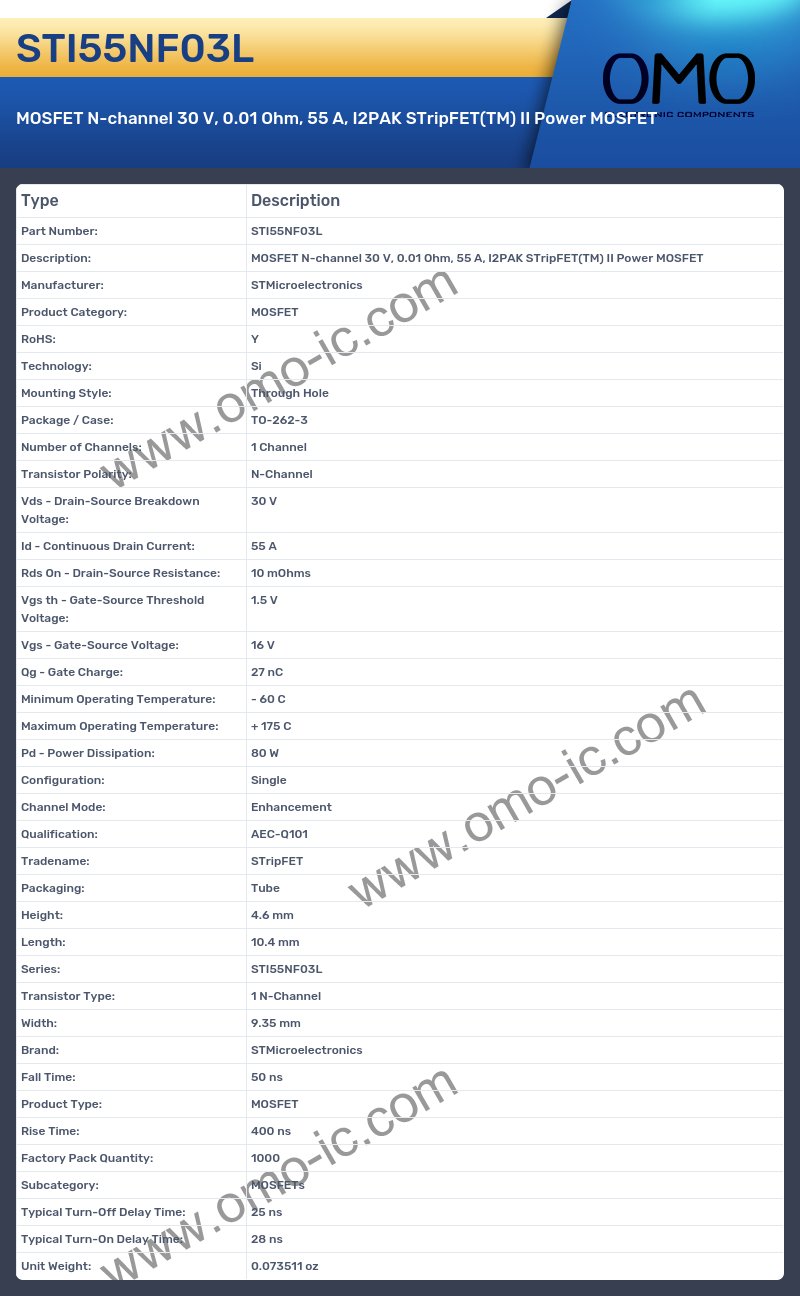

STI55NF03L Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: Through Hole
• Package / Case: TO-262-3
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 30 V
• Id - Continuous Drain Current: 55 A
• Rds On - Drain-Source Resistance: 10 mOhms
• Vgs th - Gate-Source Threshold Voltage: 1.5 V
• Vgs - Gate-Source Voltage: 16 V
• Qg - Gate Charge: 27 nC
• Minimum Operating Temperature: - 60 C
• Maximum Operating Temperature: + 175 C
• Pd - Power Dissipation: 80 W
• Configuration: Single
• Channel Mode: Enhancement
• Qualification: AEC-Q101
• Tradename: STripFET
• Packaging: Tube
• Height: 4.6 mm
• Length: 10.4 mm
• Series: STI55NF03L
• Transistor Type: 1 N-Channel
• Width: 9.35 mm
• Brand: STMicroelectronics
• Fall Time: 50 ns
• Product Type: MOSFET
• Rise Time: 400 ns
• Factory Pack Quantity: 1000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 25 ns
• Typical Turn-On Delay Time: 28 ns
• Unit Weight: 0.073511 oz
