STL9N60M2

STL9N60M2 Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. PowerFLAT-5x6-HV-8 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 600 V 4.8 A continuous drain current Rds On value of 860 mOhms Gate-Source Threshold Voltage Range: 3 V Gate-Source Voltage: 25 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 48 W This product has a Single configuration. The Channel Mode is set to Enhancement. The product's MDmesh is Blue Gecko. Reel packaging for easy dispensing The Transistor Type is 1 N-Channel. STMicroelectronics is a trusted brand for quality electronics 13.5 ns fall time MOSFET product type Rise Time is 7.5 ns. 3000 of 100 MOSFETs as subcategory Turn-off delay time is 22 ns. The typical turn-on delay time is 8.8 ns. 1. 0.003175 oz of Unit Weight

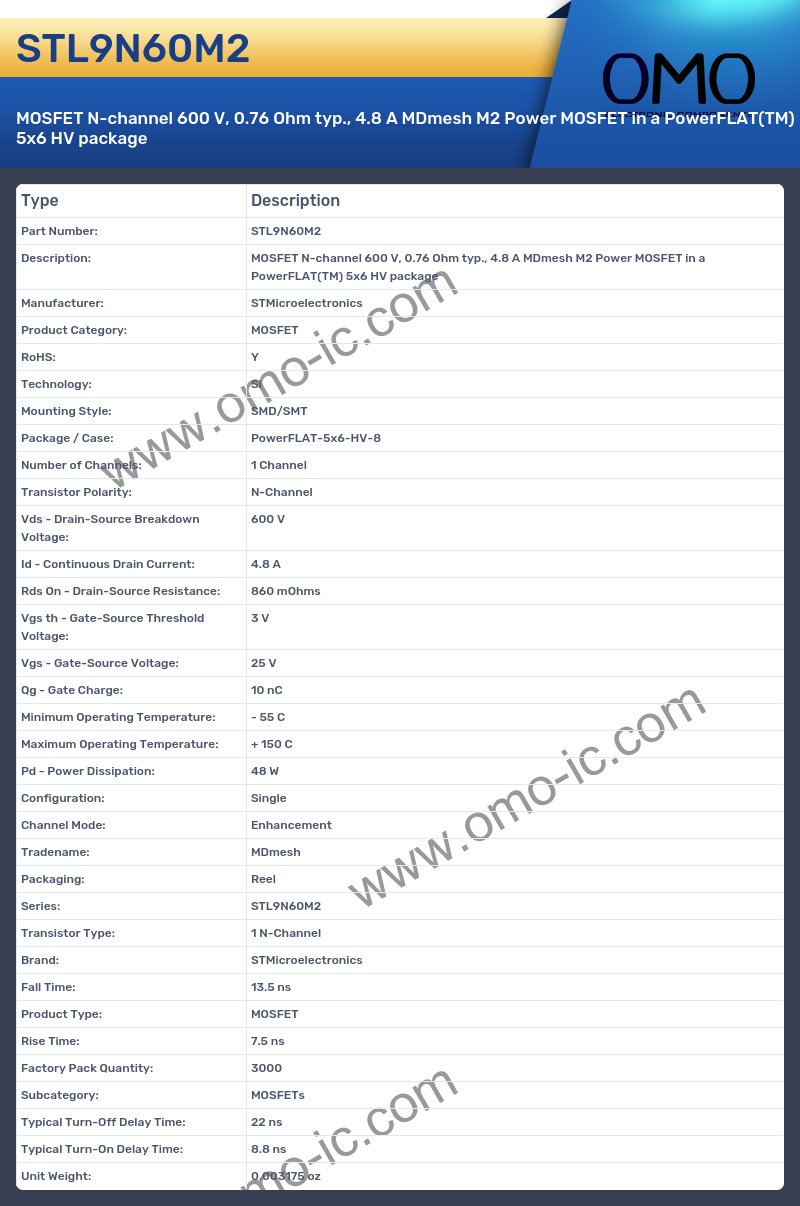

STL9N60M2 Image

STL9N60M2 Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: PowerFLAT-5x6-HV-8
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 600 V
• Id - Continuous Drain Current: 4.8 A
• Rds On - Drain-Source Resistance: 860 mOhms
• Vgs th - Gate-Source Threshold Voltage: 3 V
• Vgs - Gate-Source Voltage: 25 V
• Qg - Gate Charge: 10 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 48 W
• Configuration: Single
• Channel Mode: Enhancement
• Tradename: MDmesh
• Packaging: Reel
• Series: STL9N60M2
• Transistor Type: 1 N-Channel
• Brand: STMicroelectronics
• Fall Time: 13.5 ns
• Product Type: MOSFET
• Rise Time: 7.5 ns
• Factory Pack Quantity: 3000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 22 ns
• Typical Turn-On Delay Time: 8.8 ns
• Unit Weight: 0.003175 oz
