| Mfr. #: | STLD125N4F6AG |
|---|---|
| Hersteller: | STMicroelectronics |
| Beschreibung: | MOSFET Automotive-grade N-channel 40 V, 2.4 mOhm typ., 120 A STripFET F6 Power MOSFET in a PowerFLAT 5x6 dual side cooling package |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | STLD125N4F6AG Datenblatt |
This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. PowerFLAT-5x6-8 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 40 V 120 A continuous drain current Rds On value of 2.4 mOhms Gate-Source Threshold Voltage Range: 2 V Gate-Source Voltage: 20 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 175 C. 130 W This product has a Single configuration. The Channel Mode is set to Enhancement. The AEC-Q101 Qualification The product's STripFET is Blue Gecko. The Transistor Type is 1 N-Channel. STMicroelectronics is a trusted brand for quality electronics 220 ns fall time MOSFET product type Rise Time is 300 ns. 2500 of 100 MOSFETs as subcategory Turn-off delay time is 255 ns. The typical turn-on delay time is 47 ns.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

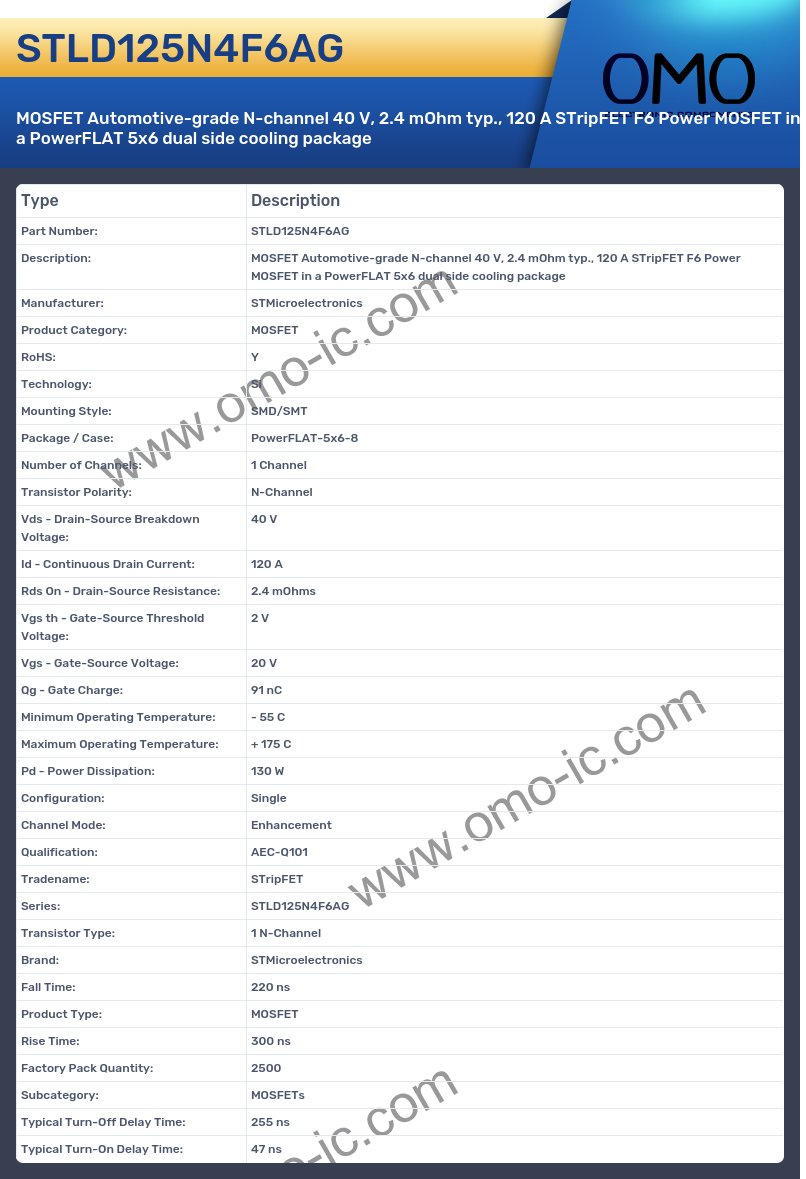

STLD125N4F6AG Specifications
A: Is the cutoff frequency of the product Manufacturer?
Q: Yes, the product's Manufacturer is indeed STMicroelectronics
A: Is the cutoff frequency of the product Mounting Style?
Q: Yes, the product's Mounting Style is indeed SMD/SMT
A: At what frequency does the Package / Case?
Q: The product Package / Case is PowerFLAT-5x6-8.
A: What is the Number of Channels of the product?
Q: The Number of Channels of the product is 1 Channel.
A: What is the Vds - Drain-Source Breakdown Voltage of the product?
Q: The Vds - Drain-Source Breakdown Voltage of the product is 40 V.
A: At what frequency does the Id - Continuous Drain Current?
Q: The product Id - Continuous Drain Current is 120 A.
A: What is the Rds On - Drain-Source Resistance of the product?
Q: The Rds On - Drain-Source Resistance of the product is 2.4 mOhms.
A: At what frequency does the Vgs th - Gate-Source Threshold Voltage?
Q: The product Vgs th - Gate-Source Threshold Voltage is 2 V.
A: Is the cutoff frequency of the product Vgs - Gate-Source Voltage?
Q: Yes, the product's Vgs - Gate-Source Voltage is indeed 20 V
A: What is the Minimum Operating Temperature of the product?
Q: The Minimum Operating Temperature of the product is - 55 C.
A: What is the Maximum Operating Temperature of the product?
Q: The Maximum Operating Temperature of the product is + 175 C.
A: What is the Pd - Power Dissipation of the product?
Q: The Pd - Power Dissipation of the product is 130 W.
A: Is the cutoff frequency of the product Configuration?
Q: Yes, the product's Configuration is indeed Single
A: Is the cutoff frequency of the product Channel Mode?
Q: Yes, the product's Channel Mode is indeed Enhancement
A: At what frequency does the Qualification?
Q: The product Qualification is AEC-Q101.
A: Is the cutoff frequency of the product Tradename?
Q: Yes, the product's Tradename is indeed STripFET
A: At what frequency does the Transistor Type?
Q: The product Transistor Type is 1 N-Channel.
A: At what frequency does the Brand?
Q: The product Brand is STMicroelectronics.
A: At what frequency does the Fall Time?
Q: The product Fall Time is 220 ns.
A: At what frequency does the Product Type?
Q: The product Product Type is MOSFET.
A: What is the Rise Time of the product?
Q: The Rise Time of the product is 300 ns.
A: What is the Factory Pack Quantity of the product?
Q: The Factory Pack Quantity of the product is 2500.
A: What is the Subcategory of the product?
Q: The Subcategory of the product is MOSFETs.
A: At what frequency does the Typical Turn-Off Delay Time?
Q: The product Typical Turn-Off Delay Time is 255 ns.
A: At what frequency does the Typical Turn-On Delay Time?
Q: The product Typical Turn-On Delay Time is 47 ns.
