| Mfr. #: | STS9P2UH7 |
|---|---|
| Hersteller: | STMicroelectronics |
| Beschreibung: | MOSFET P-channel 20 V, 0.0195 Ohm typ., 9 A STripFET H7 Power MOSFET in a SO-8 package |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | STS9P2UH7 Datenblatt |
This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 20 V 9 A continuous drain current Rds On value of 22.5 mOhms Gate-Source Threshold Voltage Range: 400 mV Gate-Source Voltage: 8 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 2.7 W This product has a Single configuration. The Channel Mode is set to Enhancement. Reel packaging for easy dispensing The Transistor Type is 1 P-Channel. STMicroelectronics is a trusted brand for quality electronics 84.5 ns fall time MOSFET product type Rise Time is 30.5 ns. 2500 of 100 MOSFETs as subcategory Turn-off delay time is 128 ns. The typical turn-on delay time is 12.5 ns. 1. 0.017870 oz of Unit Weight
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

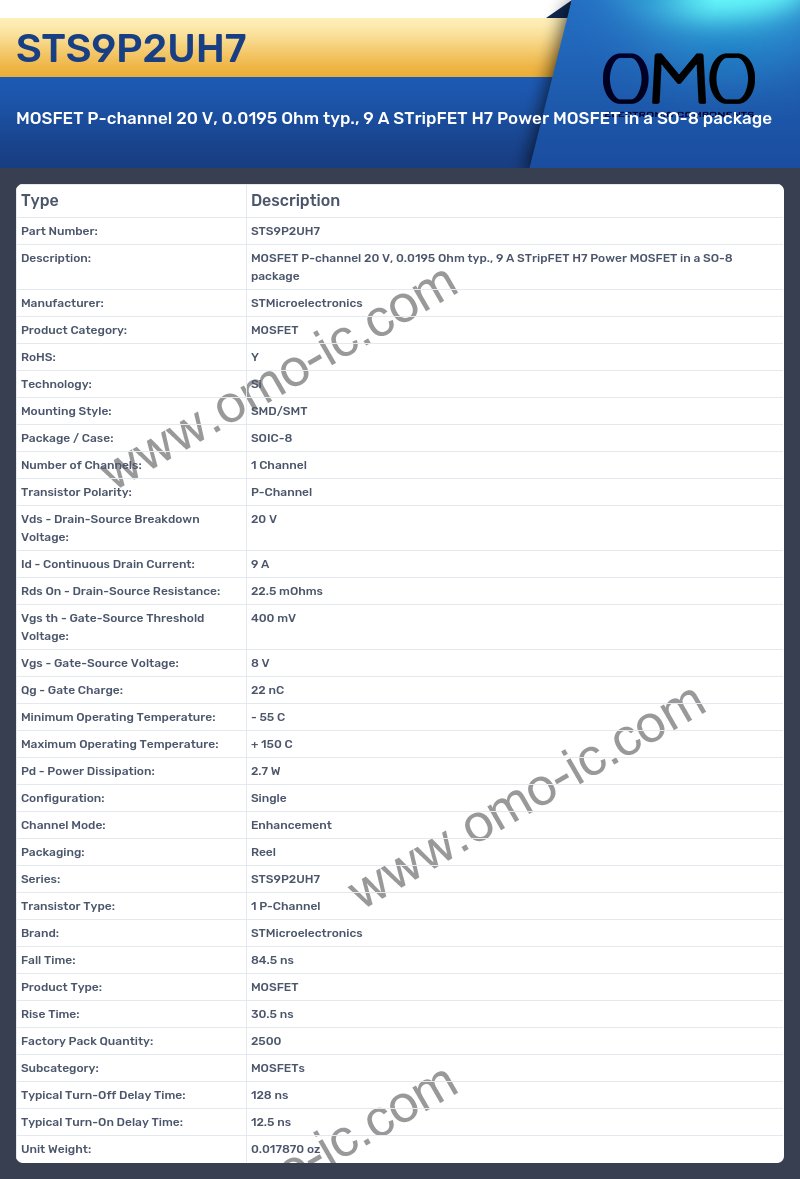

STS9P2UH7 Specifications
A: What is the Manufacturer of the product?
Q: The Manufacturer of the product is STMicroelectronics.
A: At what frequency does the Mounting Style?
Q: The product Mounting Style is SMD/SMT.
A: What is the Package / Case of the product?
Q: The Package / Case of the product is SOIC-8.
A: What is the Number of Channels of the product?
Q: The Number of Channels of the product is 1 Channel.
A: At what frequency does the Vds - Drain-Source Breakdown Voltage?
Q: The product Vds - Drain-Source Breakdown Voltage is 20 V.
A: At what frequency does the Id - Continuous Drain Current?
Q: The product Id - Continuous Drain Current is 9 A.
A: At what frequency does the Rds On - Drain-Source Resistance?
Q: The product Rds On - Drain-Source Resistance is 22.5 mOhms.
A: Is the cutoff frequency of the product Vgs th - Gate-Source Threshold Voltage?
Q: Yes, the product's Vgs th - Gate-Source Threshold Voltage is indeed 400 mV
A: What is the Vgs - Gate-Source Voltage of the product?
Q: The Vgs - Gate-Source Voltage of the product is 8 V.
A: What is the Minimum Operating Temperature of the product?
Q: The Minimum Operating Temperature of the product is - 55 C.
A: At what frequency does the Maximum Operating Temperature?
Q: The product Maximum Operating Temperature is + 150 C.
A: What is the Pd - Power Dissipation of the product?
Q: The Pd - Power Dissipation of the product is 2.7 W.
A: Is the cutoff frequency of the product Configuration?
Q: Yes, the product's Configuration is indeed Single
A: Is the cutoff frequency of the product Channel Mode?
Q: Yes, the product's Channel Mode is indeed Enhancement
A: What is the Packaging of the product?
Q: The Packaging of the product is Reel.
A: At what frequency does the Transistor Type?
Q: The product Transistor Type is 1 P-Channel.
A: What is the Brand of the product?
Q: The Brand of the product is STMicroelectronics.
A: At what frequency does the Fall Time?
Q: The product Fall Time is 84.5 ns.
A: Is the cutoff frequency of the product Product Type?
Q: Yes, the product's Product Type is indeed MOSFET
A: Is the cutoff frequency of the product Rise Time?
Q: Yes, the product's Rise Time is indeed 30.5 ns
A: At what frequency does the Factory Pack Quantity?
Q: The product Factory Pack Quantity is 2500.
A: Is the cutoff frequency of the product Subcategory?
Q: Yes, the product's Subcategory is indeed MOSFETs
A: Is the cutoff frequency of the product Typical Turn-Off Delay Time?
Q: Yes, the product's Typical Turn-Off Delay Time is indeed 128 ns
A: At what frequency does the Typical Turn-On Delay Time?
Q: The product Typical Turn-On Delay Time is 12.5 ns.
A: At what frequency does the Unit Weight?
Q: The product Unit Weight is 0.017870 oz.
