STS9P3LLH6

STS9P3LLH6 Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 30 V 9 A continuous drain current Rds On value of 12 mOhms Gate-Source Threshold Voltage Range: 1 V Gate-Source Voltage: 20 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 2.7 W This product has a Single configuration. The Channel Mode is set to Enhancement. The product's STripFET is Blue Gecko. Reel packaging for easy dispensing The Transistor Type is 1 P-Channel. STMicroelectronics is a trusted brand for quality electronics Minimum forward transconductance of - 18 ns fall time MOSFET product type Rise Time is 93 ns. 2500 of 100 MOSFETs as subcategory Turn-off delay time is 50 ns. The typical turn-on delay time is 13.2 ns. 1. 0.017870 oz of Unit Weight

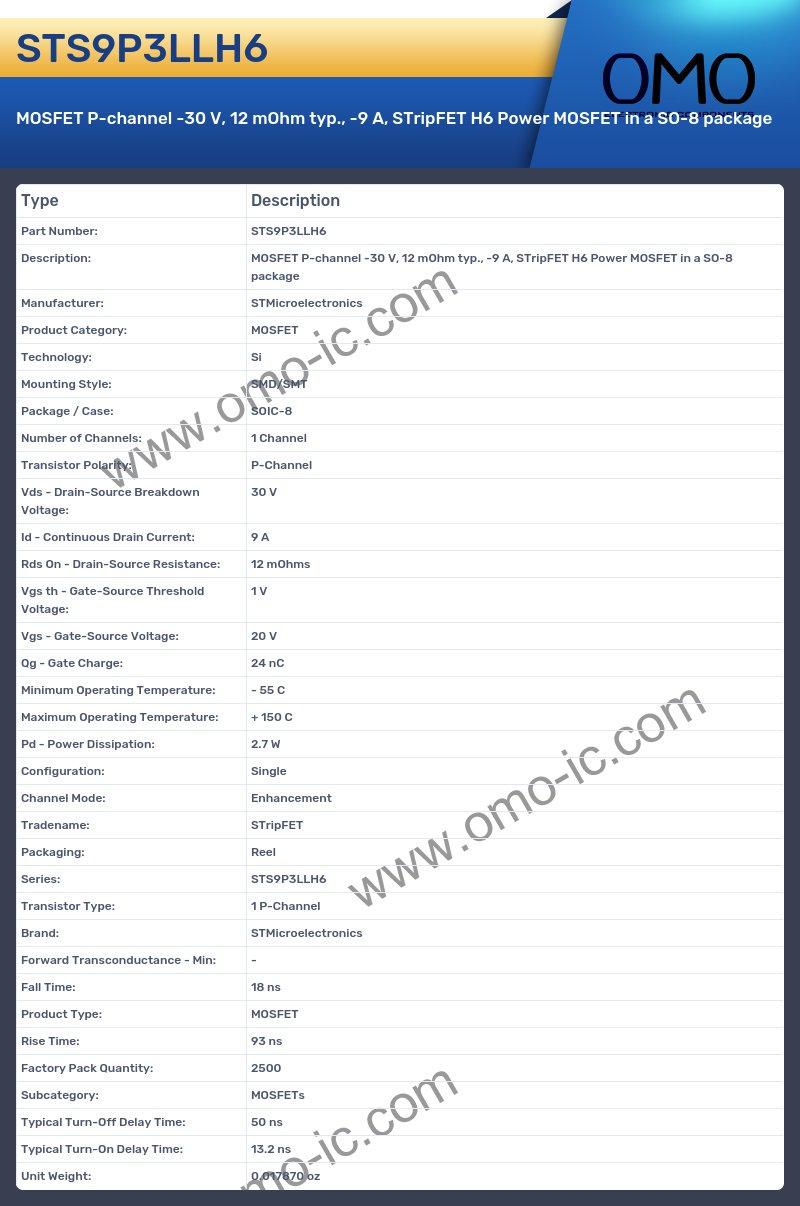

STS9P3LLH6 Image

STS9P3LLH6 Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Number of Channels: 1 Channel
• Transistor Polarity: P-Channel
• Vds - Drain-Source Breakdown Voltage: 30 V
• Id - Continuous Drain Current: 9 A
• Rds On - Drain-Source Resistance: 12 mOhms
• Vgs th - Gate-Source Threshold Voltage: 1 V
• Vgs - Gate-Source Voltage: 20 V
• Qg - Gate Charge: 24 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 2.7 W
• Configuration: Single
• Channel Mode: Enhancement
• Tradename: STripFET
• Packaging: Reel
• Series: STS9P3LLH6
• Transistor Type: 1 P-Channel
• Brand: STMicroelectronics
• Forward Transconductance - Min: -
• Fall Time: 18 ns
• Product Type: MOSFET
• Rise Time: 93 ns
• Factory Pack Quantity: 2500
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 50 ns
• Typical Turn-On Delay Time: 13.2 ns
• Unit Weight: 0.017870 oz
