STT3PF20V Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. SOT-23-6 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 20 V 2.2 A continuous drain current Rds On value of 140 mOhms Gate-Source Voltage: 12 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 1.6 W This product has a Single configuration. The Channel Mode is set to Enhancement. Reel packaging for easy dispensing The height of the product is 1.3 mm. 3.05 mm long MOSFET Small Signal The Transistor Type is 1 P-Channel. This device belongs to the MOSFET type. STMicroelectronics is a trusted brand for quality electronics 30 ns fall time MOSFET product type Rise Time is 30 ns. 3000 of 100 MOSFETs as subcategory Turn-off delay time is 45 ns. The typical turn-on delay time is 38 ns. 1. 0.000229 oz of Unit Weight

STT3PF20V Image

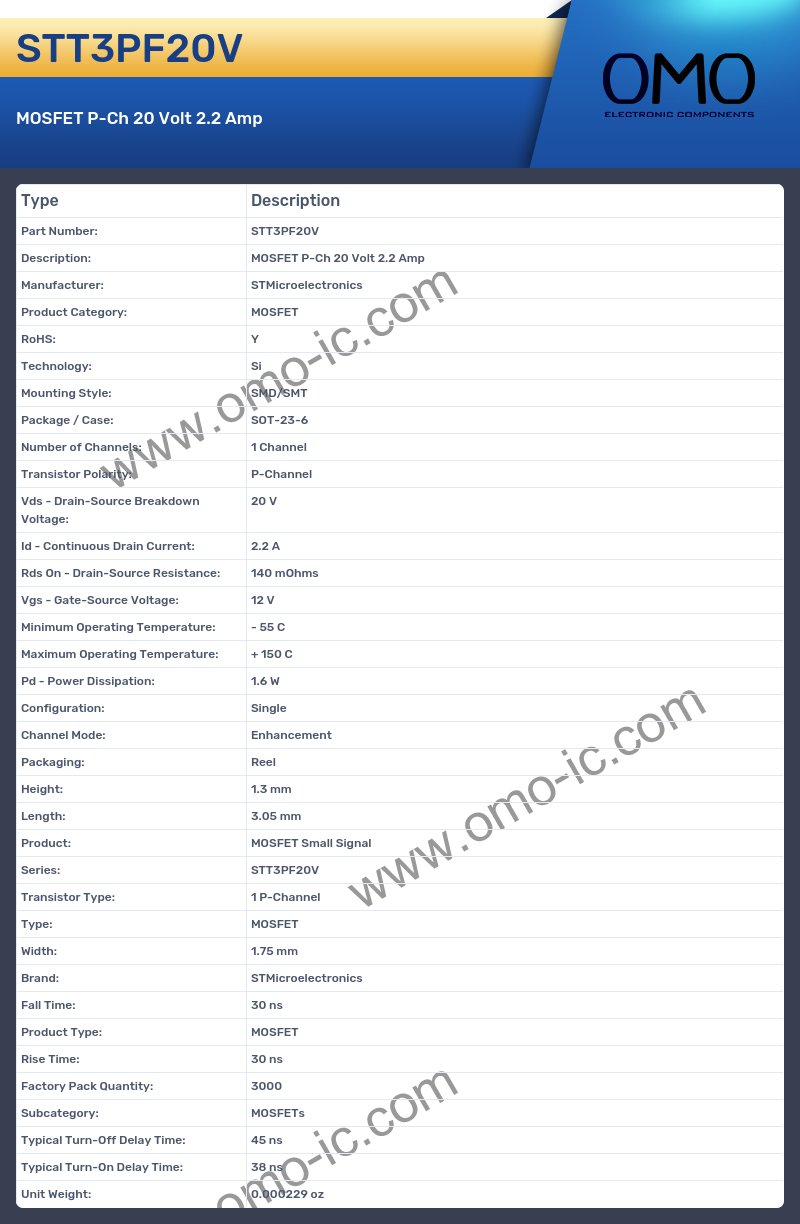

STT3PF20V Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: SOT-23-6
• Number of Channels: 1 Channel
• Transistor Polarity: P-Channel
• Vds - Drain-Source Breakdown Voltage: 20 V
• Id - Continuous Drain Current: 2.2 A
• Rds On - Drain-Source Resistance: 140 mOhms
• Vgs - Gate-Source Voltage: 12 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 1.6 W
• Configuration: Single
• Channel Mode: Enhancement
• Packaging: Reel
• Height: 1.3 mm
• Length: 3.05 mm
• Product: MOSFET Small Signal
• Series: STT3PF20V
• Transistor Type: 1 P-Channel
• Type: MOSFET
• Width: 1.75 mm
• Brand: STMicroelectronics
• Fall Time: 30 ns
• Product Type: MOSFET
• Rise Time: 30 ns
• Factory Pack Quantity: 3000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 45 ns
• Typical Turn-On Delay Time: 38 ns
• Unit Weight: 0.000229 oz
