STTH2003CR

STTH2003CR Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. I2PAK package/case type is utilized by this product. 300 V is the Vr - Reverse Voltage 10 A is the If-Forward Current; This device belongs to the Fast Recovery Rectifiers type. This product has a Dual Common Cathode configuration. The Vf - Forward Voltage of the product is 1.25 V. Maximum Surge Current of 110 A 20 uA of Ir - Reverse Current Recovery Time: 35 ns The product can operate at a maximum temperature of + 175 C. Tube packaging for easy dispensing The height of the product is 9.35 mm (Max). 10.4 mm (Max) long Rectifiers STMicroelectronics is a trusted brand for quality electronics - Rectifiers product type 1000 of 100 Diodes & Rectifiers as subcategory 1. 0.073511 oz of Unit Weight

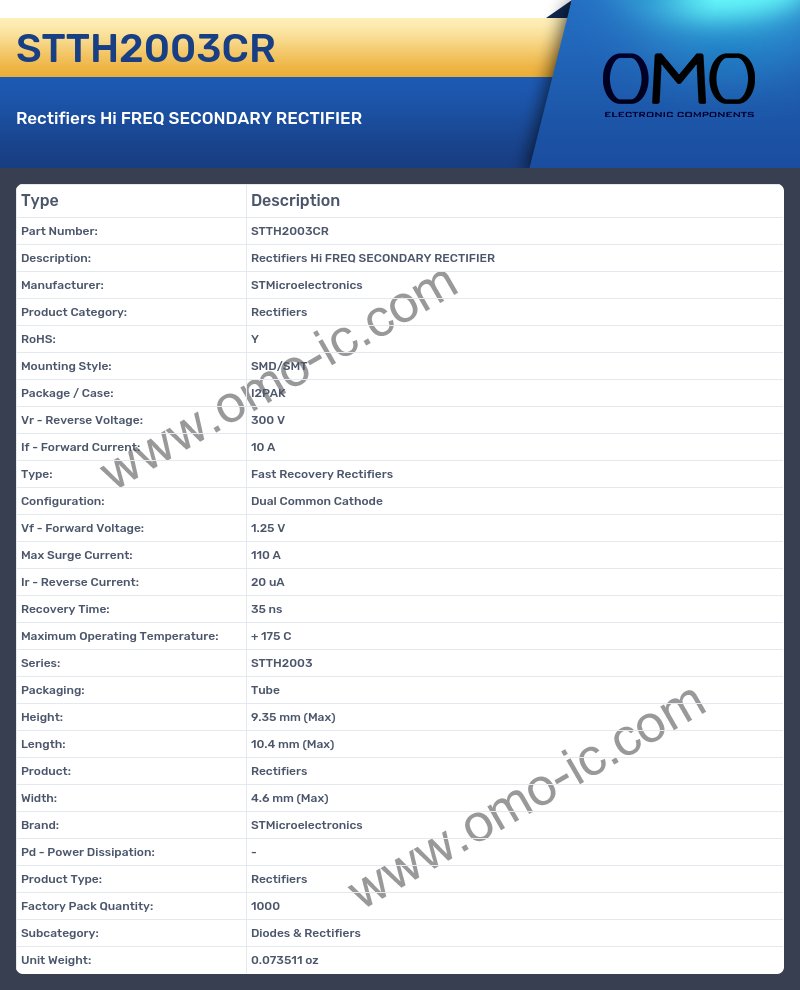

STTH2003CR Image

STTH2003CR Specifications

• Manufacturer: STMicroelectronics
• Product Category: Rectifiers
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: I2PAK
• Vr - Reverse Voltage: 300 V
• If - Forward Current: 10 A
• Type: Fast Recovery Rectifiers
• Configuration: Dual Common Cathode
• Vf - Forward Voltage: 1.25 V
• Max Surge Current: 110 A
• Ir - Reverse Current: 20 uA
• Recovery Time: 35 ns
• Maximum Operating Temperature: + 175 C
• Series: STTH2003
• Packaging: Tube
• Height: 9.35 mm (Max)
• Length: 10.4 mm (Max)
• Product: Rectifiers
• Width: 4.6 mm (Max)
• Brand: STMicroelectronics
• Pd - Power Dissipation: -
• Product Type: Rectifiers
• Factory Pack Quantity: 1000
• Subcategory: Diodes & Rectifiers
• Unit Weight: 0.073511 oz
