TLC1542CDW

TLC1542CDW Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. SOIC-20 package/case type is utilized by this product. This product is equipped with 11 Channel for efficient performance. The sampling rate of this product is 38 kS/s. Single-Ended input type Interface Type: SPI SAR architecture External is the reference type. This product requires an 4.5 V to 5.5 V for proper operation. The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. Tube packaging for easy dispensing The height of the product is 2.35 mm. 12.8 mm long The output type is Tri-State. This device belongs to the S/H ADC type. Texas Instruments is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. INL is within 0.5 LSB 4.5 V to 5.5 V operating supply voltage range ADCs - Analog to Digital Converters product type 25 of 100 Data Converter ICs as subcategory 1. 0.018953 oz of Unit Weight

TLC1542CDW Image

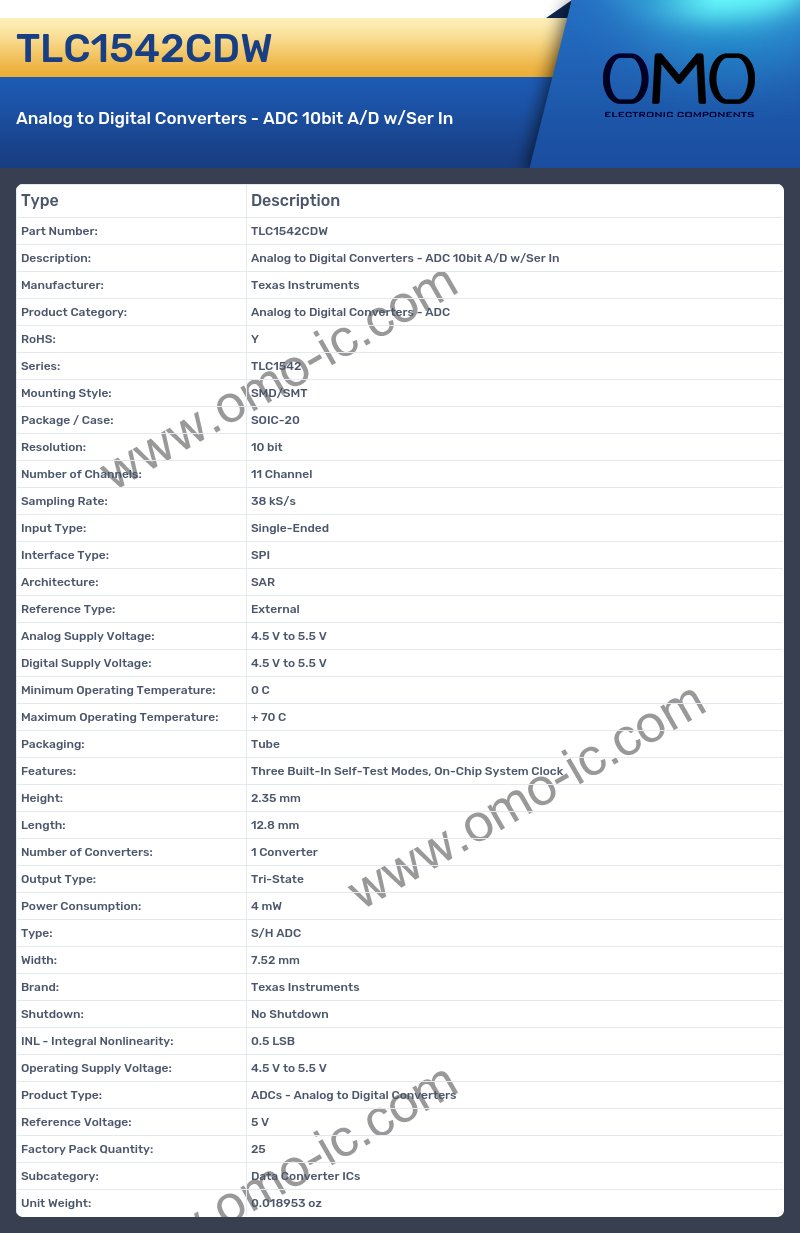

TLC1542CDW Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: TLC1542
• Mounting Style: SMD/SMT
• Package / Case: SOIC-20
• Resolution: 10 bit
• Number of Channels: 11 Channel
• Sampling Rate: 38 kS/s
• Input Type: Single-Ended
• Interface Type: SPI
• Architecture: SAR
• Reference Type: External
• Analog Supply Voltage: 4.5 V to 5.5 V
• Digital Supply Voltage: 4.5 V to 5.5 V
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Packaging: Tube
• Features: Three Built-In Self-Test Modes, On-Chip System Clock
• Height: 2.35 mm
• Length: 12.8 mm
• Number of Converters: 1 Converter
• Output Type: Tri-State
• Power Consumption: 4 mW
• Type: S/H ADC
• Width: 7.52 mm
• Brand: Texas Instruments
• Shutdown: No Shutdown
• INL - Integral Nonlinearity: 0.5 LSB
• Operating Supply Voltage: 4.5 V to 5.5 V
• Product Type: ADCs - Analog to Digital Converters
• Reference Voltage: 5 V
• Factory Pack Quantity: 25
• Subcategory: Data Converter ICs
• Unit Weight: 0.018953 oz
