TLV2302IDGK

TLV2302IDGK Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. VSSOP-8 package/case type is utilized by this product. The comparator type of this product is General Purpose for versatile use. This product is equipped with 2 Channel for efficient performance. The output type is Open Collector, Open Drain. This product has an 250 pA of 5 uA for precise signal processing. Supply Voltage - Max: 16 V Supply Voltage - Min: 2.5 V 55 us response time The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Tube packaging for easy dispensing The height of the product is 0.97 mm. Rail-to-Rail input type 3 mm long Analog Comparators Supply Type: Single, Dual This device belongs to the Nano Power Comparator type. Texas Instruments is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. This product has a 88 dB of 50 dB, ensuring reliable signal acquisition. 1. The maximum dual supply voltage is +/- 8 V. 1.25 V minimum dual supply voltage 2.5 V to 16 V operating supply voltage range 481 mW Analog Comparators product type This product has a 105 dB of 50 dB, providing reliable power supply noise rejection. 80 of 100 Amplifier ICs as subcategory 1. 0.000670 oz of Unit Weight

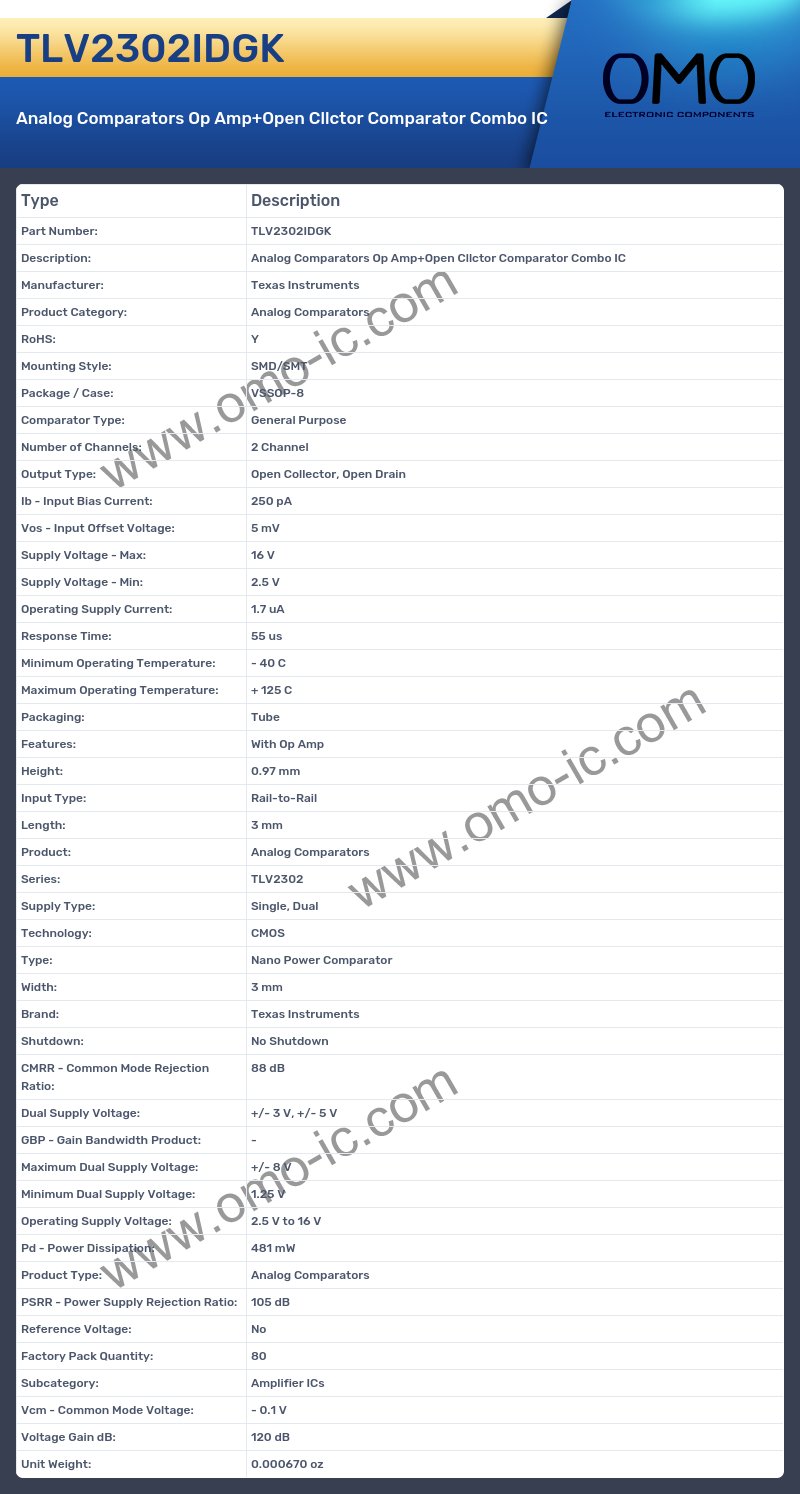

TLV2302IDGK Image

TLV2302IDGK Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog Comparators
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: VSSOP-8
• Comparator Type: General Purpose
• Number of Channels: 2 Channel
• Output Type: Open Collector, Open Drain
• Ib - Input Bias Current: 250 pA
• Vos - Input Offset Voltage: 5 mV
• Supply Voltage - Max: 16 V
• Supply Voltage - Min: 2.5 V
• Operating Supply Current: 1.7 uA
• Response Time: 55 us
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Packaging: Tube
• Features: With Op Amp
• Height: 0.97 mm
• Input Type: Rail-to-Rail
• Length: 3 mm
• Product: Analog Comparators
• Series: TLV2302
• Supply Type: Single, Dual
• Technology: CMOS
• Type: Nano Power Comparator
• Width: 3 mm
• Brand: Texas Instruments
• Shutdown: No Shutdown
• CMRR - Common Mode Rejection Ratio: 88 dB
• Dual Supply Voltage: +/- 3 V, +/- 5 V
• GBP - Gain Bandwidth Product: -
• Maximum Dual Supply Voltage: +/- 8 V
• Minimum Dual Supply Voltage: 1.25 V
• Operating Supply Voltage: 2.5 V to 16 V
• Pd - Power Dissipation: 481 mW
• Product Type: Analog Comparators
• PSRR - Power Supply Rejection Ratio: 105 dB
• Reference Voltage: No
• Factory Pack Quantity: 80
• Subcategory: Amplifier ICs
• Vcm - Common Mode Voltage: - 0.1 V
• Voltage Gain dB: 120 dB
• Unit Weight: 0.000670 oz
