TLV2774CPWG4

TLV2774CPWG4 Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. TSSOP-14 package/case type is utilized by this product. Supply Voltage - Max: 6 V This product is equipped with 4 Channel for efficient performance. This product has a 60 dB to 96 dB of 50 dB, ensuring reliable signal acquisition. This product has an 60 pA of 5 uA for precise signal processing. Supply Voltage - Min: 2.5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. This product does not have a No Shutdown feature, ensuring continuous operation. Tube packaging for easy dispensing The amplifier type is High Output Current Amplifier. The height of the product is 1.15 mm. Rail-to-Rail input type 5 mm long The output type is Rail-to-Rail. Operational Amplifiers Supply Type: Single, Dual Texas Instruments is a trusted brand for quality electronics The 0.0006 pA/sqrt Hz is 0.7 pA/rtHz. 1. The maximum dual supply voltage is +/- 3 V. +/- 1.25 V minimum dual supply voltage 2.5 V to 6 V, +/- 1.25 V to +/- 3 V operating supply voltage range 700 mW Op Amps - Operational Amplifiers product type 90 of 100 Amplifier ICs as subcategory 1. 0.002018 oz of Unit Weight

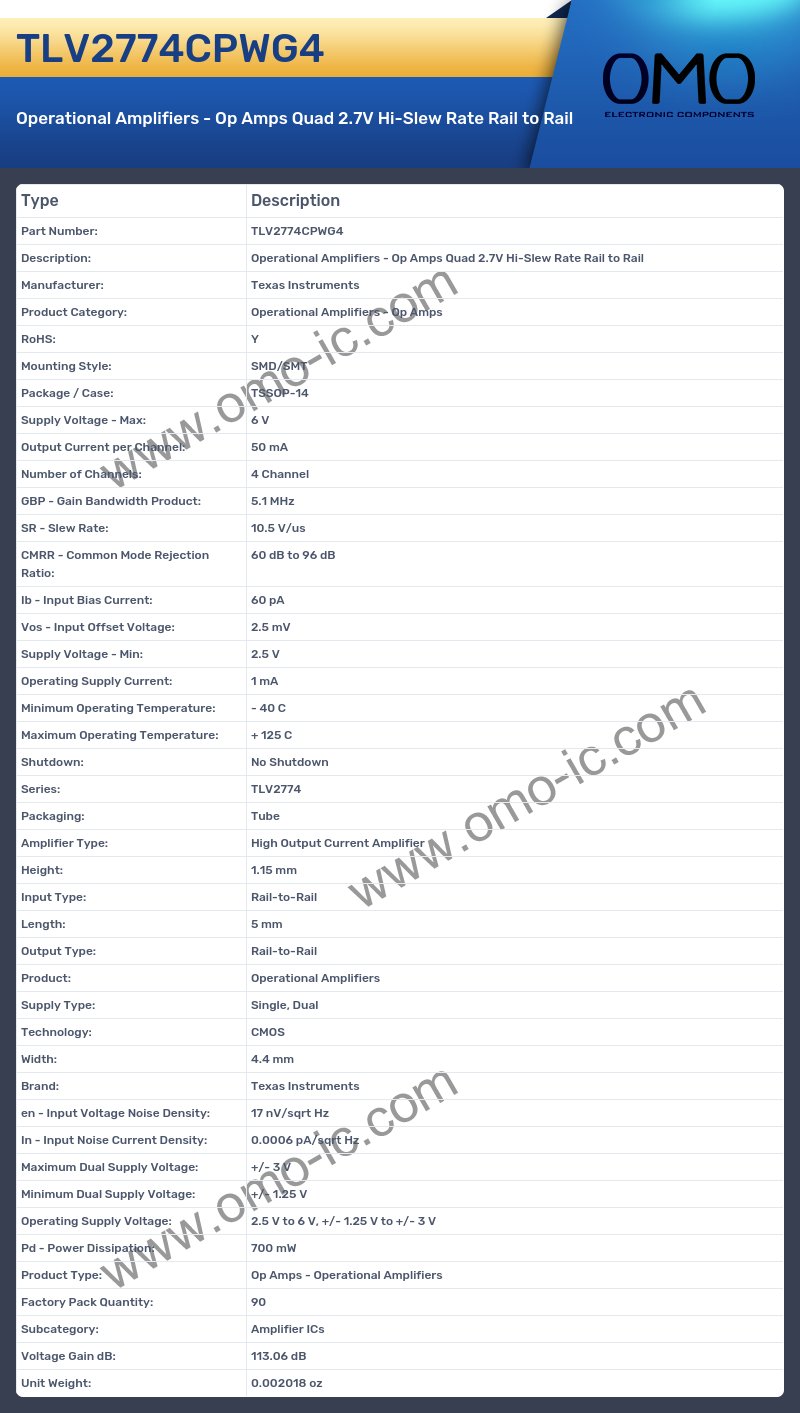

TLV2774CPWG4 Image

TLV2774CPWG4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Operational Amplifiers - Op Amps
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-14
• Supply Voltage - Max: 6 V
• Output Current per Channel: 50 mA
• Number of Channels: 4 Channel
• GBP - Gain Bandwidth Product: 5.1 MHz
• SR - Slew Rate: 10.5 V/us
• CMRR - Common Mode Rejection Ratio: 60 dB to 96 dB
• Ib - Input Bias Current: 60 pA
• Vos - Input Offset Voltage: 2.5 mV
• Supply Voltage - Min: 2.5 V
• Operating Supply Current: 1 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Shutdown: No Shutdown
• Series: TLV2774
• Packaging: Tube
• Amplifier Type: High Output Current Amplifier
• Height: 1.15 mm
• Input Type: Rail-to-Rail
• Length: 5 mm
• Output Type: Rail-to-Rail
• Product: Operational Amplifiers
• Supply Type: Single, Dual
• Technology: CMOS
• Width: 4.4 mm
• Brand: Texas Instruments
• en - Input Voltage Noise Density: 17 nV/sqrt Hz
• In - Input Noise Current Density: 0.0006 pA/sqrt Hz
• Maximum Dual Supply Voltage: +/- 3 V
• Minimum Dual Supply Voltage: +/- 1.25 V
• Operating Supply Voltage: 2.5 V to 6 V, +/- 1.25 V to +/- 3 V
• Pd - Power Dissipation: 700 mW
• Product Type: Op Amps - Operational Amplifiers
• Factory Pack Quantity: 90
• Subcategory: Amplifier ICs
• Voltage Gain dB: 113.06 dB
• Unit Weight: 0.002018 oz
