TM4C123GH6ZXRI7R

TM4C123GH6ZXRI7R Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. nFBGA-168 package/case type is utilized by this product. This product's ARM Cortex M4F is an ARM Cortex M3. This product has a Data Bus Width of 32 bit. The Maximum Clock Frequency of this product is 80 MHz. The Program Memory Size of this product is 2 kB. The Data RAM Size of this product is 32 kB. The ADC Resolution of this product is 12 bit. 3.3 V operating supply voltage range The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Reel packaging for easy dispensing The height of the product is 0.85 mm. 7 mm long MCU The Flash of this product is Flash. Texas Instruments is a trusted brand for quality electronics The SRAM. The Data ROM Size is 2 kB. EEPROM is the data ROM type. Interface Type: CAN, I2C, SSI, UART, USB This product requires an 3.3 V for proper operation. Yes regarding Moisture Sensitivity The product has 24 Channel ADC channels. ARM Microcontrollers - MCU product type 1000 of 100 Microcontrollers - MCU as subcategory Supply Voltage - Max: 3.63 V Supply Voltage - Min: 3.15 V

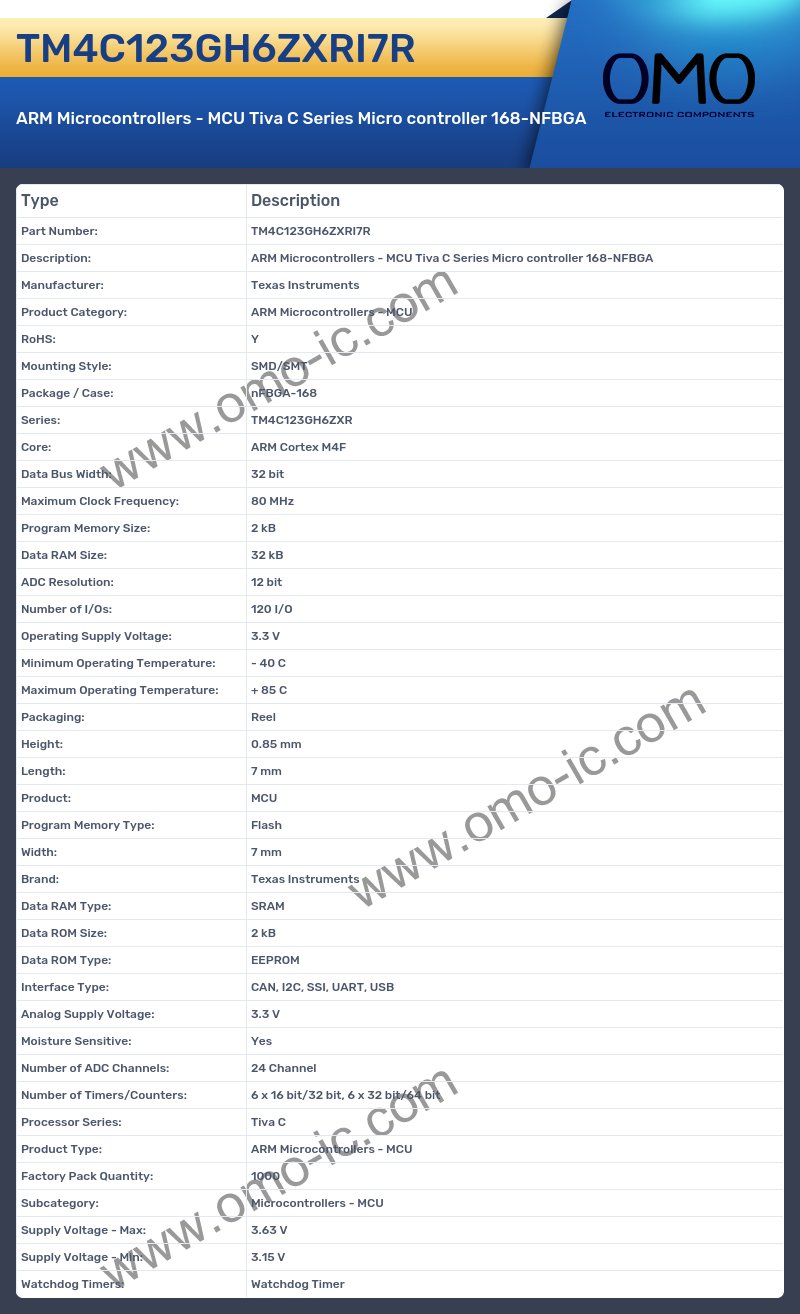

TM4C123GH6ZXRI7R Image

TM4C123GH6ZXRI7R Specifications

• Manufacturer: Texas Instruments
• Product Category: ARM Microcontrollers - MCU
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: nFBGA-168
• Series: TM4C123GH6ZXR
• Core: ARM Cortex M4F
• Data Bus Width: 32 bit
• Maximum Clock Frequency: 80 MHz
• Program Memory Size: 2 kB
• Data RAM Size: 32 kB
• ADC Resolution: 12 bit
• Number of I/Os: 120 I/O
• Operating Supply Voltage: 3.3 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Reel
• Height: 0.85 mm
• Length: 7 mm
• Product: MCU
• Program Memory Type: Flash
• Width: 7 mm
• Brand: Texas Instruments
• Data RAM Type: SRAM
• Data ROM Size: 2 kB
• Data ROM Type: EEPROM
• Interface Type: CAN, I2C, SSI, UART, USB
• Analog Supply Voltage: 3.3 V
• Moisture Sensitive: Yes
• Number of ADC Channels: 24 Channel
• Number of Timers/Counters: 6 x 16 bit/32 bit, 6 x 32 bit/64 bit
• Processor Series: Tiva C
• Product Type: ARM Microcontrollers - MCU
• Factory Pack Quantity: 1000
• Subcategory: Microcontrollers - MCU
• Supply Voltage - Max: 3.63 V
• Supply Voltage - Min: 3.15 V
• Watchdog Timers: Watchdog Timer
