TN815-800B Overview

This product is manufactured by STMicroelectronics. The VDRM for this product is 800 V. The Off-State Leakage Current @ VDRM IDRM is 5 uA. The Vf - Forward Voltage of the product is 1.6 V. 1.5 V is the Gate Trigger Voltage - Vgt. 15 mA. Max Holding Current 30 mA The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. TO-252 package/case type is utilized by this product. Tube packaging for easy dispensing 8 A current rating This device belongs to the 8 A SCRs type. STMicroelectronics is a trusted brand for quality electronics 73 A Non Repetitive On-State Current SCRs product type 75 of 100 Thyristors as subcategory 1. 0.063493 oz of Unit Weight

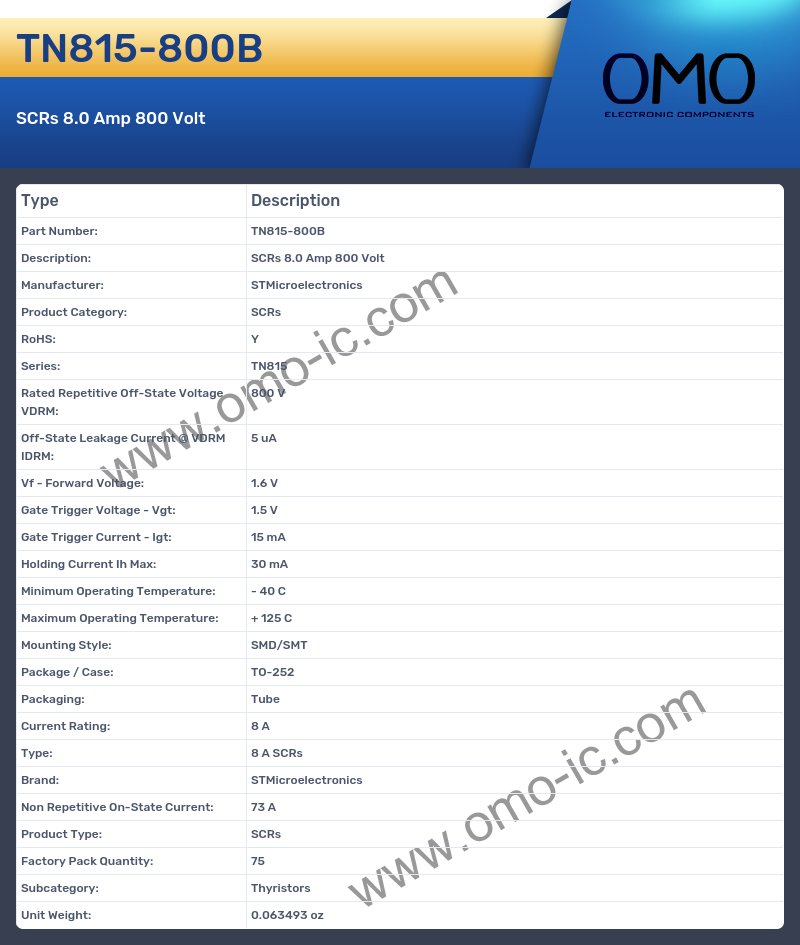

TN815-800B Image

TN815-800B Specifications

• Manufacturer: STMicroelectronics
• Product Category: SCRs
• RoHS: Y
• Series: TN815
• Rated Repetitive Off-State Voltage VDRM: 800 V
• Off-State Leakage Current @ VDRM IDRM: 5 uA
• Vf - Forward Voltage: 1.6 V
• Gate Trigger Voltage - Vgt: 1.5 V
• Gate Trigger Current - Igt: 15 mA
• Holding Current Ih Max: 30 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: TO-252
• Packaging: Tube
• Current Rating: 8 A
• Type: 8 A SCRs
• Brand: STMicroelectronics
• Non Repetitive On-State Current: 73 A
• Product Type: SCRs
• Factory Pack Quantity: 75
• Subcategory: Thyristors
• Unit Weight: 0.063493 oz
