UCC27222PWPR

UCC27222PWPR Overview

This product is manufactured by Texas Instruments. This device belongs to the High Side, Low Side type. The product can operate at a maximum temperature of SMD/SMT. HTSSOP-14 package/case type is utilized by this product. 2 Output is the number of outputs provided by this product. Output current: 3 A Rise Time is 17 ns. 17 ns fall time Supply Voltage - Min: 3.7 V Supply Voltage - Max: 20 V 3000 mW The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 105 C. Reel packaging for easy dispensing Texas Instruments is a trusted brand for quality electronics TTL. Yes regarding Moisture Sensitivity 3.7 V to 20 V operating supply voltage range Gate Drivers product type 2000 of 100 PMIC - Power Management ICs as subcategory 1. 0.002046 oz of Unit Weight

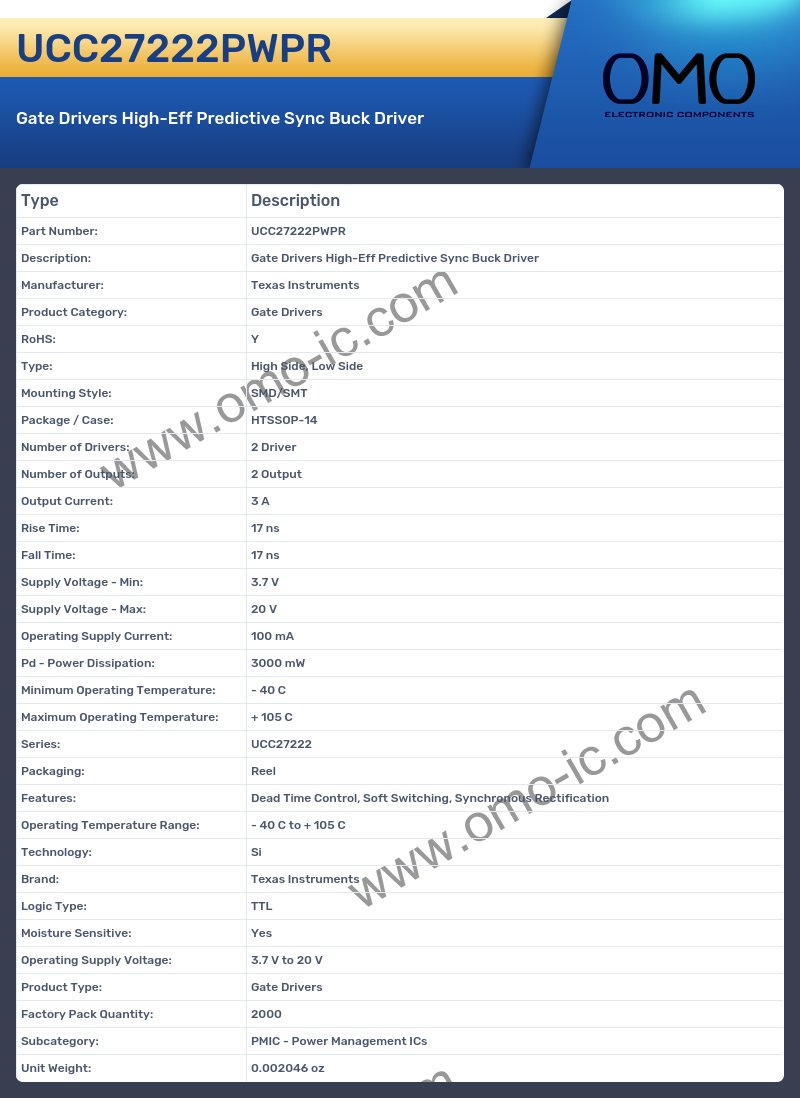

UCC27222PWPR Image

UCC27222PWPR Specifications

• Manufacturer: Texas Instruments
• Product Category: Gate Drivers
• RoHS: Y
• Type: High Side, Low Side
• Mounting Style: SMD/SMT
• Package / Case: HTSSOP-14
• Number of Drivers: 2 Driver
• Number of Outputs: 2 Output
• Output Current: 3 A
• Rise Time: 17 ns
• Fall Time: 17 ns
• Supply Voltage - Min: 3.7 V
• Supply Voltage - Max: 20 V
• Operating Supply Current: 100 mA
• Pd - Power Dissipation: 3000 mW
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 105 C
• Series: UCC27222
• Packaging: Reel
• Features: Dead Time Control, Soft Switching, Synchronous Rectification
• Operating Temperature Range: - 40 C to + 105 C
• Technology: Si
• Brand: Texas Instruments
• Logic Type: TTL
• Moisture Sensitive: Yes
• Operating Supply Voltage: 3.7 V to 20 V
• Product Type: Gate Drivers
• Factory Pack Quantity: 2000
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.002046 oz
