UCC2801D

UCC2801D Overview

This product is manufactured by Texas Instruments. Boost, Flyback, Forward Topology 1 Output is the number of outputs provided by this product. 1000 kHz is 60 kHz. Output current: 1 A The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. Tube packaging for easy dispensing This device belongs to the Current Mode PWM Controllers type. Texas Instruments is a trusted brand for quality electronics 44 ns fall time Switching Controllers product type Rise Time is 41 ns. 75 of 100 PMIC - Power Management ICs as subcategory 1. 0.002561 oz of Unit Weight

UCC2801D Image

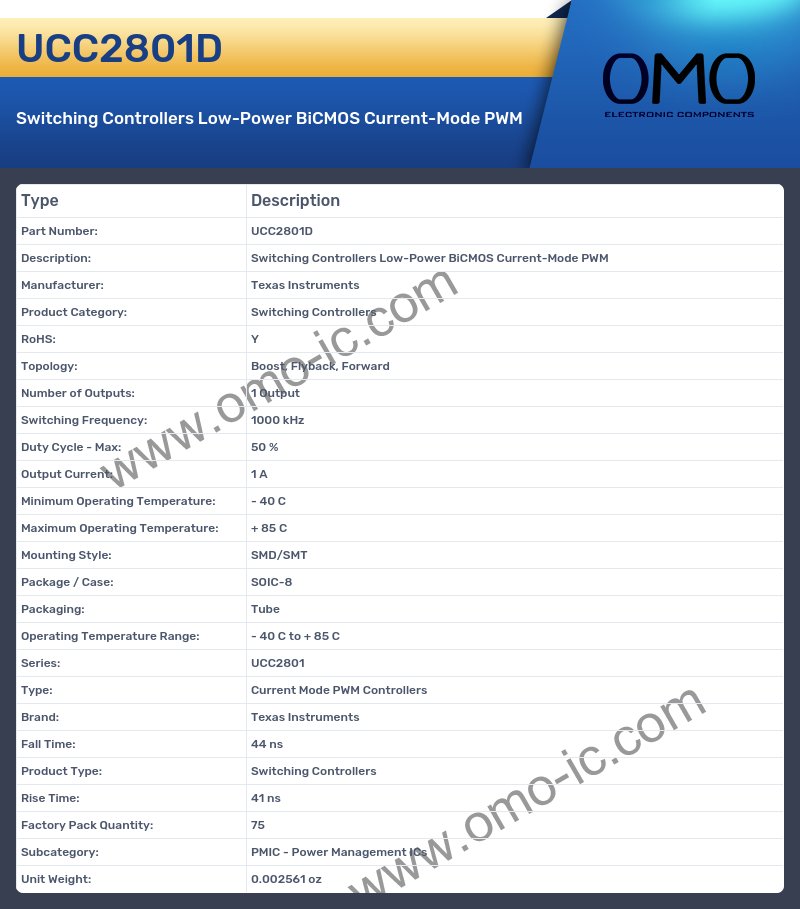

UCC2801D Specifications

• Manufacturer: Texas Instruments
• Product Category: Switching Controllers
• RoHS: Y
• Topology: Boost, Flyback, Forward
• Number of Outputs: 1 Output
• Switching Frequency: 1000 kHz
• Duty Cycle - Max: 50 %
• Output Current: 1 A
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Packaging: Tube
• Operating Temperature Range: - 40 C to + 85 C
• Series: UCC2801
• Type: Current Mode PWM Controllers
• Brand: Texas Instruments
• Fall Time: 44 ns
• Product Type: Switching Controllers
• Rise Time: 41 ns
• Factory Pack Quantity: 75
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.002561 oz
