ACS108-6SN-TR

ACS108-6SN-TR Overview

Product belongs to the ACS/A.S.DR series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.006632 oz SMD/SMT Mounting-Style TO-261-4, TO-261AA Surface Mount mounting type Supplier device package: SOT-223 Configuration Single 25mA of Current-Hold-Ih-Max The Voltage-Off-State is 600V. Voltage-Gate-Trigger-Vgt-Max 1V 10mA of Current-Gate-Trigger-Igt-Max 800mA is the maximum Current-On-State-It-RMS. This product can handle a non-repetitive surge current of 7.3A, 7.6A for 50-60Hz Itsm. Logic - Sensitive Gate Triac-Type Maximum operating temperature of + 125 C Minimum operating temperature: - 30 C The 600 V Rated Repetitive Off-State Voltage VDRM; 10 mA Maximun Holding Current of Ih The Gate-Trigger-Voltage-Vgt attribute is 1 V on this product. Gate-Trigger-Current-Igt: 10 mA; 0.8 A RMS Current On-State 13.7 A Non-Repetitive On-State Current The 2 uA Off-State Leakage Current in VDRM and IDRM. The 1.3 V On-State-Voltage

ACS108-6SN-TR Image

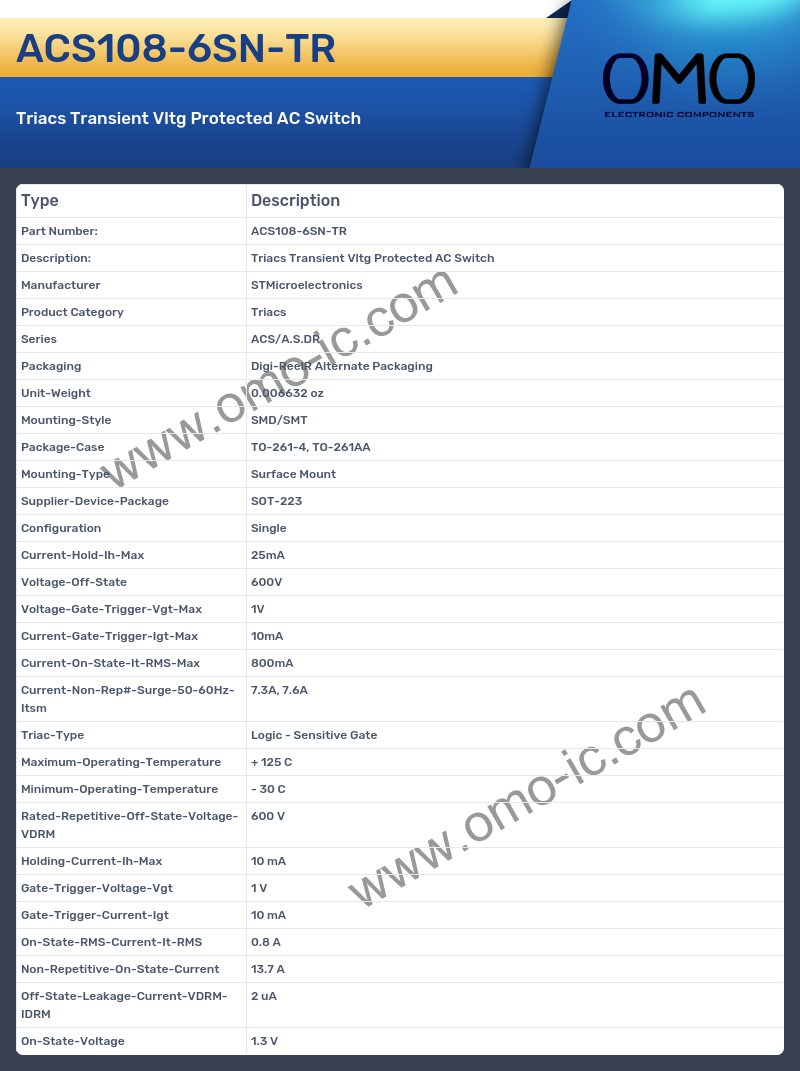

ACS108-6SN-TR Specifications

• Manufacturer STMicroelectronics
• Product Category Triacs
• Series ACS/A.S.DR
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.006632 oz
• Mounting-Style SMD/SMT
• Package-Case TO-261-4, TO-261AA
• Mounting-Type Surface Mount
• Supplier-Device-Package SOT-223
• Configuration Single
• Current-Hold-Ih-Max 25mA
• Voltage-Off-State 600V
• Voltage-Gate-Trigger-Vgt-Max 1V
• Current-Gate-Trigger-Igt-Max 10mA
• Current-On-State-It-RMS-Max 800mA
• Current-Non-Rep#-Surge-50-60Hz-Itsm 7.3A, 7.6A
• Triac-Type Logic - Sensitive Gate
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 30 C
• Rated-Repetitive-Off-State-Voltage-VDRM 600 V
• Holding-Current-Ih-Max 10 mA
• Gate-Trigger-Voltage-Vgt 1 V
• Gate-Trigger-Current-Igt 10 mA
• On-State-RMS-Current-It-RMS 0.8 A
• Non-Repetitive-On-State-Current 13.7 A
• Off-State-Leakage-Current-VDRM-IDRM 2 uA
• On-State-Voltage 1.3 V
