AD1380JD

AD1380JD Overview

Product belongs to the AD1380 series. This product is categorized as Analog to Digital Converters Type: S/H ADC Tube is the packaging method for this product Through Hole Mounting-Style CDIP-BB-32 The Single Ended for this product is CMOS/TTL. Operational temperature range: 0°C ~ 70°C Number of channels: 1 Channel Supplier device package: 32-BBDIP-H This product's 50k. Data-Interface: Parallel 16 bits The Voltage-Supply-Analog is ±14.5 V ~ 15.5 V. The Voltage Supply Digital for this product is 5V. Configuration S/H-ADC The architecture of this product is SAR . Internal is the reference type. 1 units Power-off control: 900 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 25 C This product has a Power Consumption of 900 mW. Parallel interface type The +/- 0.1 %FSR of this product is 0.2%. Number-of-Converters: 1 Converter 50 kS/s Sampling Rate Integral Nonlinearity: +/- 0.006 %FSR Differential nonlinearity: +/- 0.003 %FSR

AD1380JD Image

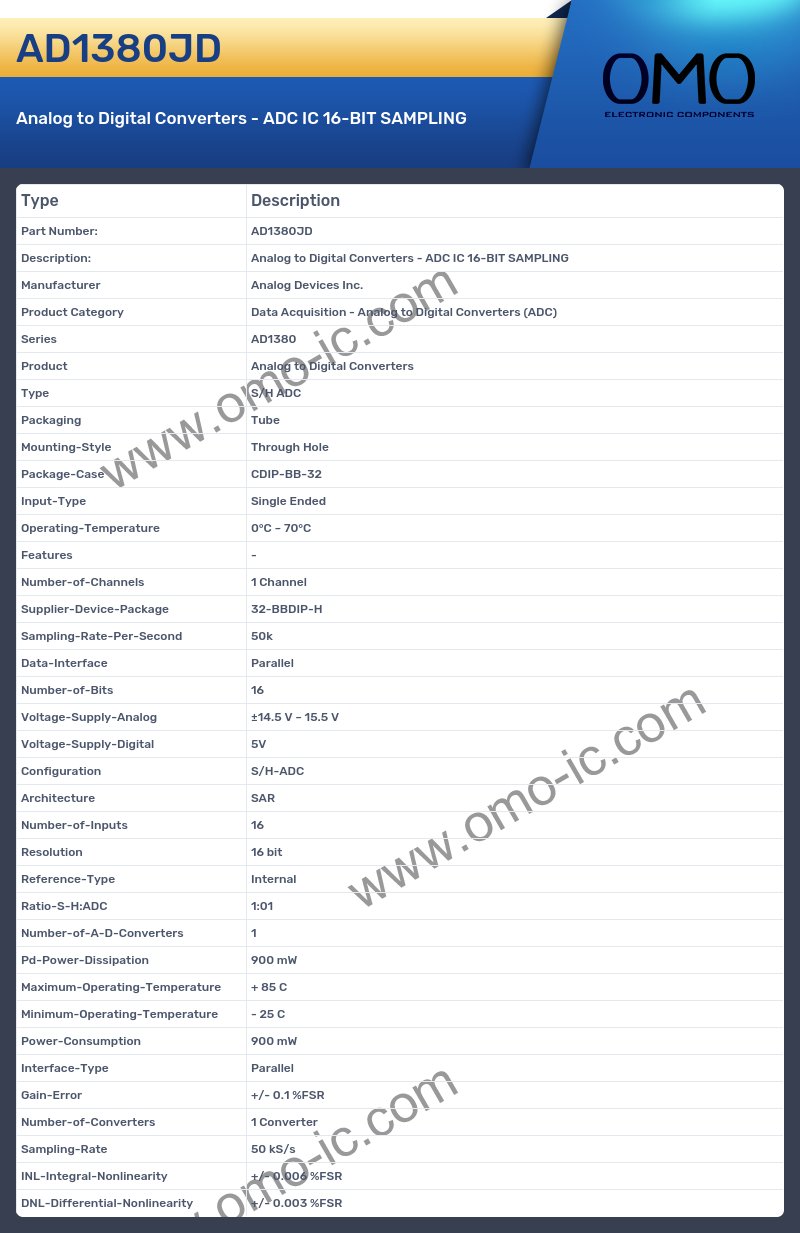

AD1380JD Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series AD1380
• Product Analog to Digital Converters
• Type S/H ADC
• Packaging Tube
• Mounting-Style Through Hole
• Package-Case CDIP-BB-32
• Input-Type Single Ended
• Operating-Temperature 0°C ~ 70°C
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 32-BBDIP-H
• Sampling-Rate-Per-Second 50k
• Data-Interface Parallel
• Number-of-Bits 16
• Voltage-Supply-Analog ±14.5 V ~ 15.5 V
• Voltage-Supply-Digital 5V
• Configuration S/H-ADC
• Architecture SAR
• Number-of-Inputs 16
• Resolution 16 bit
• Reference-Type Internal
• Ratio-S-H:ADC 1:01
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 900 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 25 C
• Power-Consumption 900 mW
• Interface-Type Parallel
• Gain-Error +/- 0.1 %FSR
• Number-of-Converters 1 Converter
• Sampling-Rate 50 kS/s
• INL-Integral-Nonlinearity +/- 0.006 %FSR
• DNL-Differential-Nonlinearity +/- 0.003 %FSR
