AD5242BRU100

AD5242BRU100 Overview

Product belongs to the AD5242 series. Tube Alternate Packaging is the packaging method for this product Weight of 0.006102 oz SMD/SMT Mounting-Style TSSOP-16 Operational temperature range: -40°C ~ 105°C Interface: I2C Voltage Supply Range: 2.7 V ~ 5.5 V, ±2.3 V ~ 2.7 V Supplier device package: 16-TSSOP 2 is 8. Taper: Linear Configuration Potentiometer 256 taps Resistance-Ohms: 100k Volatile memory type Tolerance of -30%, +50% The 30 ppm/°C. 60 Ohms 30 PPM / C is 30 parts per million per degree Celsius. Resistance: 100 kOhms Maximum operating temperature of + 105 C Minimum operating temperature: - 40 C This product operates at a 2.7 V to 5.5 V 2.3 V to 2.7 V supply voltage for reliable performance. This product is an I2C Compatible 256-Position Digital Potentiometers. 100 nA is 92 nA. The EVAL-AD5242EBZ. Maximum supply voltage of 5.5 V 2.7 V Minimum supply voltage is 2.7 V 2.3 V Dual number of POTs The 256. Volatile wiper memory This product features a I2C.

AD5242BRU100 Image

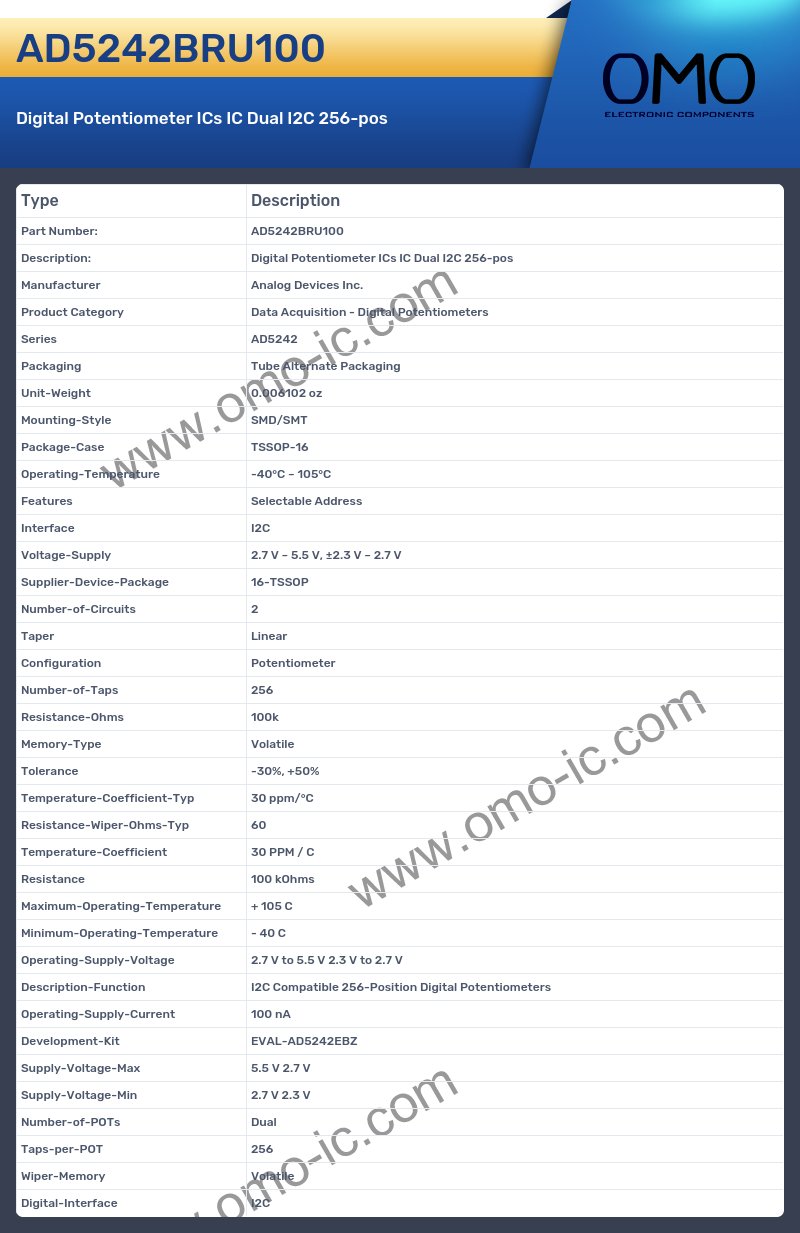

AD5242BRU100 Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital Potentiometers
• Series AD5242
• Packaging Tube Alternate Packaging
• Unit-Weight 0.006102 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-16
• Operating-Temperature -40°C ~ 105°C
• Features Selectable Address
• Interface I2C
• Voltage-Supply 2.7 V ~ 5.5 V, ±2.3 V ~ 2.7 V
• Supplier-Device-Package 16-TSSOP
• Number-of-Circuits 2
• Taper Linear
• Configuration Potentiometer
• Number-of-Taps 256
• Resistance-Ohms 100k
• Memory-Type Volatile
• Tolerance -30%, +50%
• Temperature-Coefficient-Typ 30 ppm/°C
• Resistance-Wiper-Ohms-Typ 60
• Temperature-Coefficient 30 PPM / C
• Resistance 100 kOhms
• Maximum-Operating-Temperature + 105 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2.7 V to 5.5 V 2.3 V to 2.7 V
• Description-Function I2C Compatible 256-Position Digital Potentiometers
• Operating-Supply-Current 100 nA
• Development-Kit EVAL-AD5242EBZ
• Supply-Voltage-Max 5.5 V 2.7 V
• Supply-Voltage-Min 2.7 V 2.3 V
• Number-of-POTs Dual
• Taps-per-POT 256
• Wiper-Memory Volatile
• Digital-Interface I2C
