AD524ADZ

AD524ADZ Overview

Product belongs to the AD524 series. This product is categorized as Instrumentation Amplifiers Tube is the packaging method for this product Through Hole Mounting-Style Number of channels: 1 Channel The amplifier is of Instrumentation Amplifier type. Power-off control: 450 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 3.5 mA is 92 nA. CDIP-16 SB Input bias current of 25 nA The 250 uV. The 10 V. The CMRR-Common-Mode-Rejection-Ratio is 90 dB. Gain in voltage per voltage: 1 V/V to 1000 V/V 1 MHz is the 3-dB bandwidth of the product. Maximum Input Resistance" is " 1000 MOhms

AD524ADZ Image

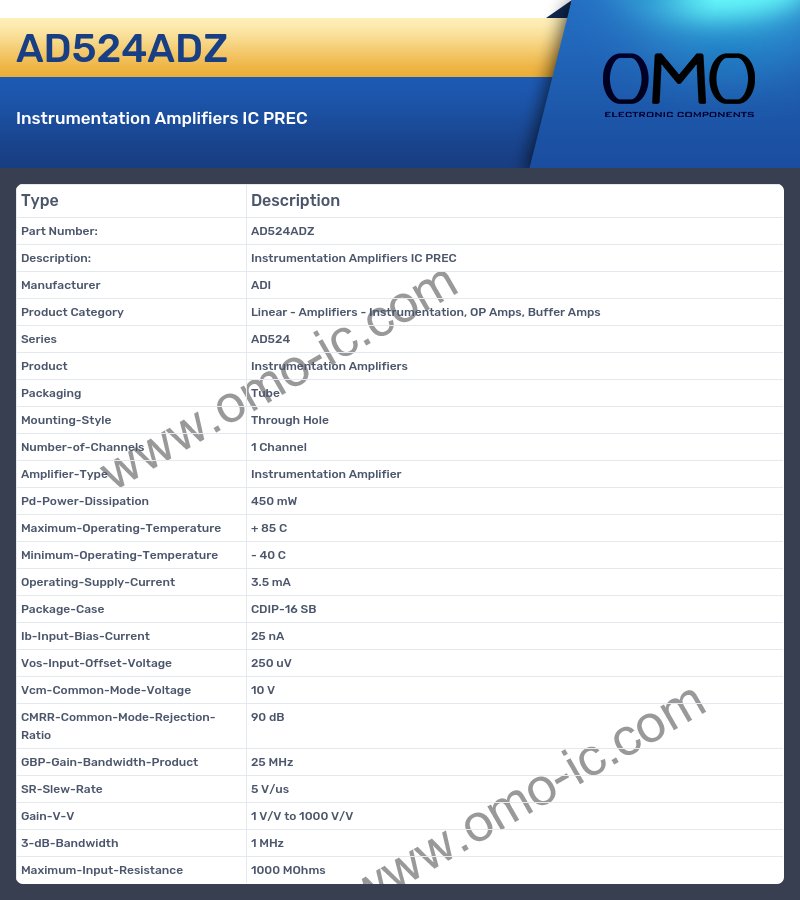

AD524ADZ Specifications

• Manufacturer ADI
• Product Category Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
• Series AD524
• Product Instrumentation Amplifiers
• Packaging Tube
• Mounting-Style Through Hole
• Number-of-Channels 1 Channel
• Amplifier-Type Instrumentation Amplifier
• Pd-Power-Dissipation 450 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 3.5 mA
• Package-Case CDIP-16 SB
• Ib-Input-Bias-Current 25 nA
• Vos-Input-Offset-Voltage 250 uV
• Vcm-Common-Mode-Voltage 10 V
• CMRR-Common-Mode-Rejection-Ratio 90 dB
• GBP-Gain-Bandwidth-Product 25 MHz
• SR-Slew-Rate 5 V/us
• Gain-V-V 1 V/V to 1000 V/V
• 3-dB-Bandwidth 1 MHz
• Maximum-Input-Resistance 1000 MOhms
