AD526BDZ

AD526BDZ Overview

Product belongs to the AD526 series. This product is categorized as Special Purpose Amplifiers Tube is the packaging method for this product Through Hole Mounting-Style The Digital for this product is CMOS/TTL. Number of channels: 1 Channel The amplifier is of PGA type. Power-off control: No Shutdown Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 10 mA is 92 nA. Maximum supply voltage of 16.5 V Minimum supply voltage is 4.5 V CDIP-16 SB Input bias current of 50 pA The 700 uV. The 70 nV/sqrt Hz of this product is 110 nV/sqrt Hz. Gain in voltage per voltage: 1 V/V to 16 V/V 4 MHz is the 3-dB bandwidth of the product.

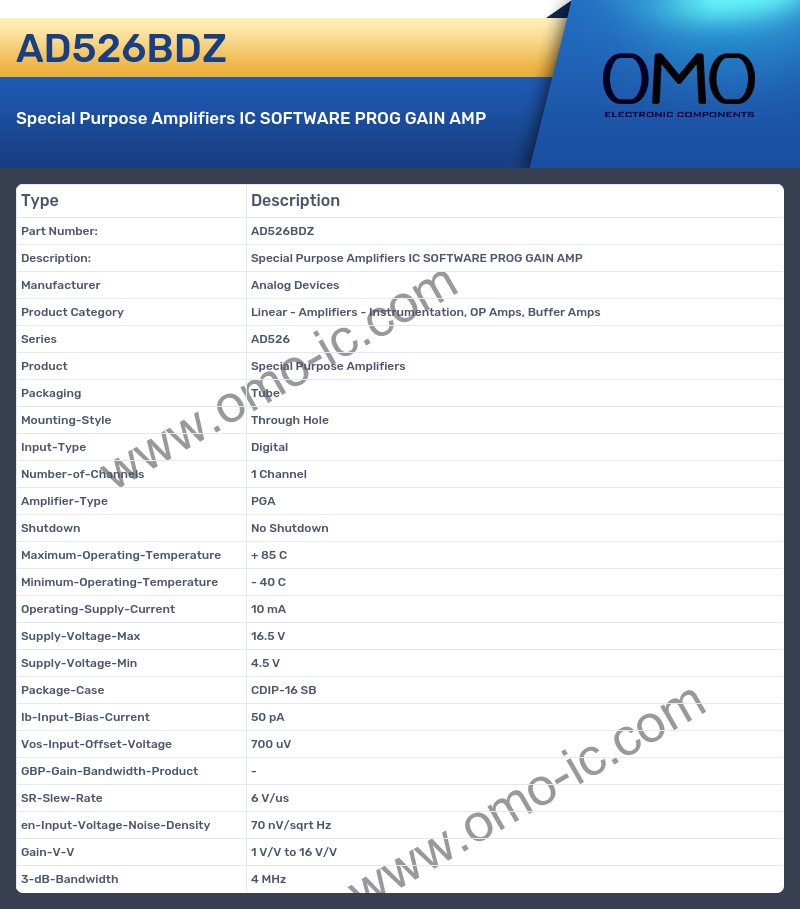

AD526BDZ Image

AD526BDZ Specifications

• Manufacturer Analog Devices
• Product Category Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
• Series AD526
• Product Special Purpose Amplifiers
• Packaging Tube
• Mounting-Style Through Hole
• Input-Type Digital
• Number-of-Channels 1 Channel
• Amplifier-Type PGA
• Shutdown No Shutdown
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 10 mA
• Supply-Voltage-Max 16.5 V
• Supply-Voltage-Min 4.5 V
• Package-Case CDIP-16 SB
• Ib-Input-Bias-Current 50 pA
• Vos-Input-Offset-Voltage 700 uV
• GBP-Gain-Bandwidth-Product -
• SR-Slew-Rate 6 V/us
• en-Input-Voltage-Noise-Density 70 nV/sqrt Hz
• Gain-V-V 1 V/V to 16 V/V
• 3-dB-Bandwidth 4 MHz
