AD5535ABCZ

AD5535ABCZ Overview

Product belongs to the - series. Tray is the packaging method for this product 124-LBGA, CSPBGA Operational temperature range: -10°C ~ 85°C Output-Type: Voltage - Buffered Supplier device package: 124-CSPBGA (15x15) Data-Interface: SPI, DSP 14 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 2.7 V ~ 5.25 V. The architecture of this product is String DAC . External is the reference type. Number of D-A converters: 32 The 65μs (Typ) is an impressive 15 us. No Differential-Output

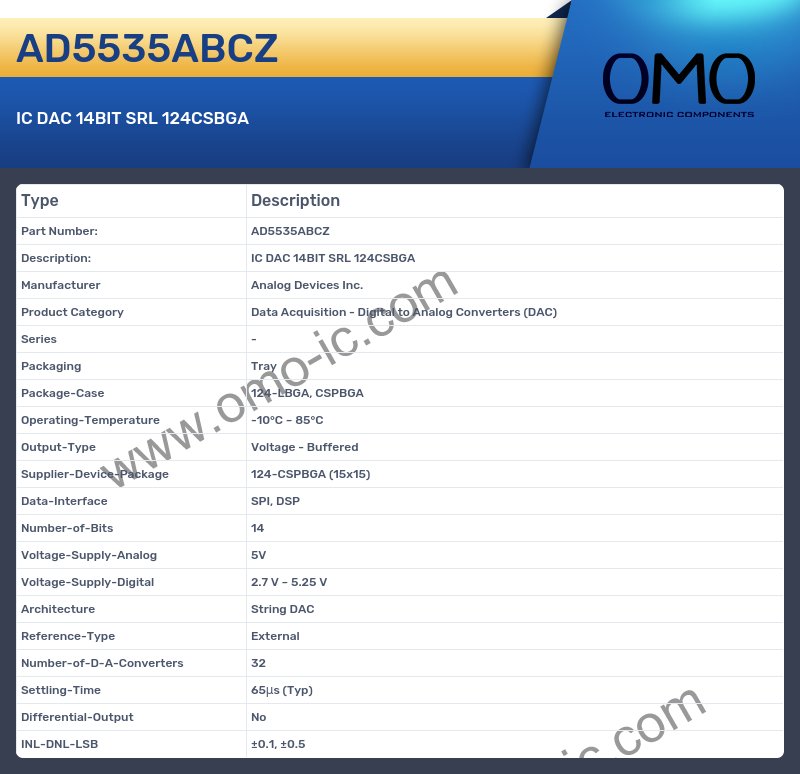

AD5535ABCZ Image

AD5535ABCZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series -
• Packaging Tray
• Package-Case 124-LBGA, CSPBGA
• Operating-Temperature -10°C ~ 85°C
• Output-Type Voltage - Buffered
• Supplier-Device-Package 124-CSPBGA (15x15)
• Data-Interface SPI, DSP
• Number-of-Bits 14
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 2.7 V ~ 5.25 V
• Architecture String DAC
• Reference-Type External
• Number-of-D-A-Converters 32
• Settling-Time 65μs (Typ)
• Differential-Output No
• INL-DNL-LSB ±0.1, ±0.5
