AD5570ARS Overview

Product belongs to the AD5570 series. This product is categorized as Digital to Analog Converters Type: Precision DAC Tube is the packaging method for this product Weight of 0.004586 oz SMD/SMT Mounting-Style SSOP-16 Operational temperature range: -40°C ~ 85°C Output-Type: Voltage - Unbuffered Number of channels: 1 Channel Supplier device package: 16-SSOP Data-Interface: SPI, DSP 16 bits The Voltage-Supply-Analog is ±11.4 V ~ 16.5 V. The Voltage Supply Digital for this product is -. The architecture of this product is R-2R . External is the reference type. Number of D-A converters: 1 The 16μs is an impressive 15 us. No Differential-Output Power-off control: 100 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 4 mA is 92 nA. Serial 3-Wire DSP SPI interface type The EVAL-AD5570SDZ. Maximum supply voltage of 16.5 V Minimum supply voltage is 11.4 V Number-of-Converters: 1 Converter 83 kS/s Sampling Rate Integral Nonlinearity: +/- 0.6 LSB Differential nonlinearity: +/- 0.3 LSB

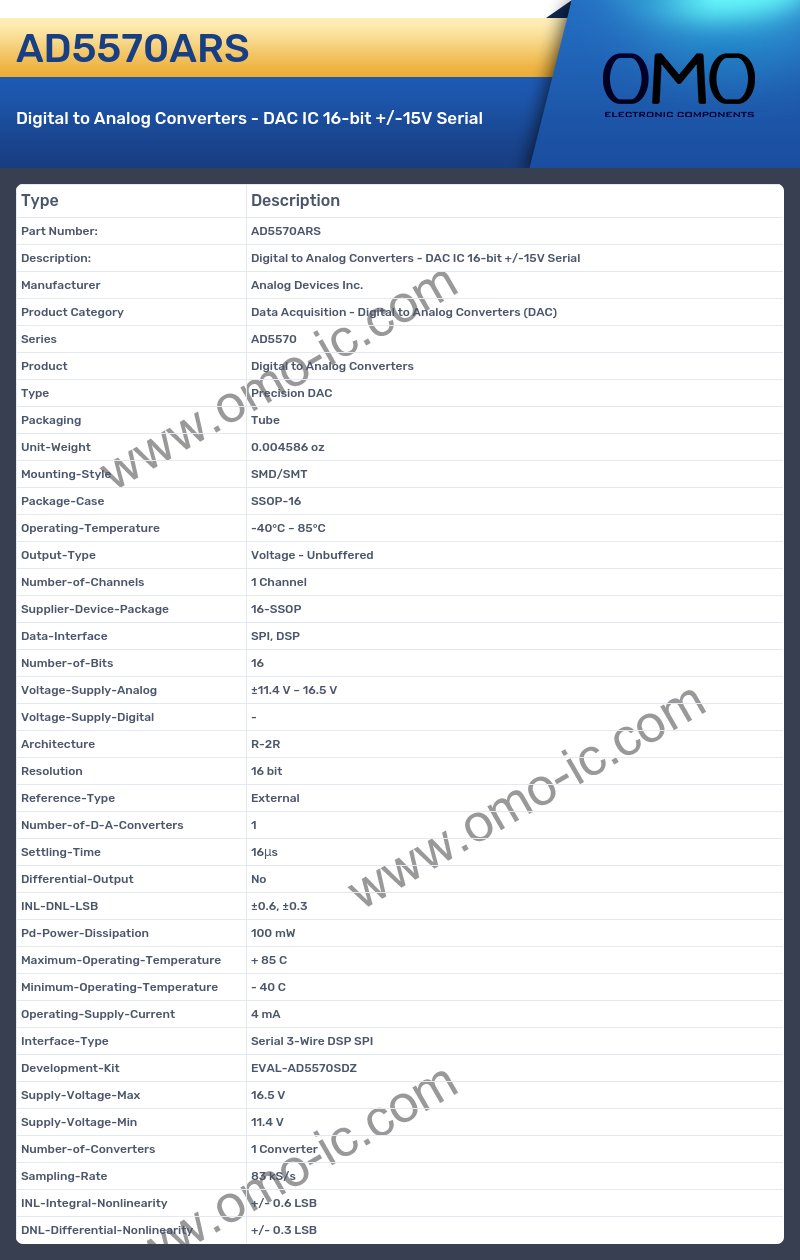

AD5570ARS Image

AD5570ARS Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series AD5570
• Product Digital to Analog Converters
• Type Precision DAC
• Packaging Tube
• Unit-Weight 0.004586 oz
• Mounting-Style SMD/SMT
• Package-Case SSOP-16
• Operating-Temperature -40°C ~ 85°C
• Output-Type Voltage - Unbuffered
• Number-of-Channels 1 Channel
• Supplier-Device-Package 16-SSOP
• Data-Interface SPI, DSP
• Number-of-Bits 16
• Voltage-Supply-Analog ±11.4 V ~ 16.5 V
• Voltage-Supply-Digital -
• Architecture R-2R
• Resolution 16 bit
• Reference-Type External
• Number-of-D-A-Converters 1
• Settling-Time 16μs
• Differential-Output No
• INL-DNL-LSB ±0.6, ±0.3
• Pd-Power-Dissipation 100 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 4 mA
• Interface-Type Serial 3-Wire DSP SPI
• Development-Kit EVAL-AD5570SDZ
• Supply-Voltage-Max 16.5 V
• Supply-Voltage-Min 11.4 V
• Number-of-Converters 1 Converter
• Sampling-Rate 83 kS/s
• INL-Integral-Nonlinearity +/- 0.6 LSB
• DNL-Differential-Nonlinearity +/- 0.3 LSB
