AD574AUD Overview

Product belongs to the AD574A series. This product is categorized as Analog to Digital Converters Tube is the packaging method for this product Through Hole Mounting-Style CDIP-SB-28 The Single Ended for this product is CMOS/TTL. Operational temperature range: -55°C ~ 125°C Number of channels: 1 Channel Supplier device package: 28-CDIP This product's -. Data-Interface: Parallel 12 bits The Voltage-Supply-Analog is ±11.4 V ~ 16.5 V. The Voltage Supply Digital for this product is 5V. Configuration ADC The architecture of this product is SAR . Internal is the reference type. 1 units Power-off control: 725 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C This product has a Power Consumption of 390 mW. Parallel interface type Number-of-Converters: 1 Converter Integral Nonlinearity: +/- 1 LSB

AD574AUD Image

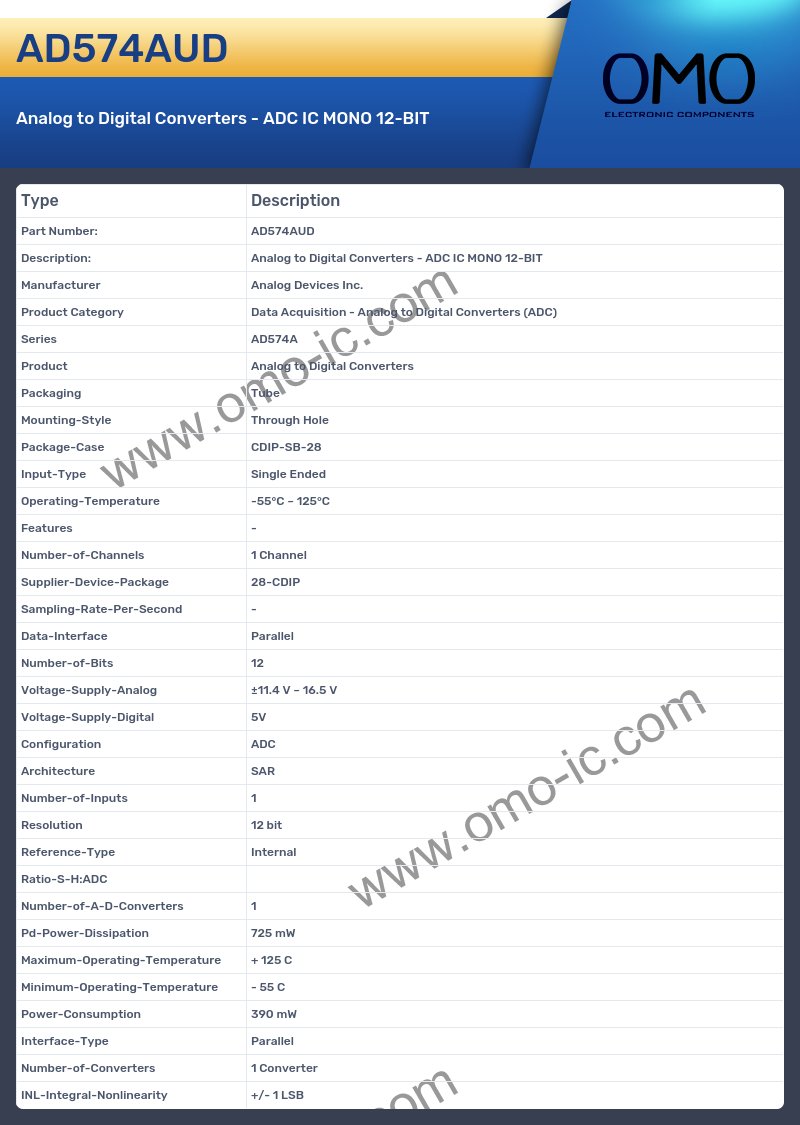

AD574AUD Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series AD574A
• Product Analog to Digital Converters
• Packaging Tube
• Mounting-Style Through Hole
• Package-Case CDIP-SB-28
• Input-Type Single Ended
• Operating-Temperature -55°C ~ 125°C
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 28-CDIP
• Sampling-Rate-Per-Second -
• Data-Interface Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog ±11.4 V ~ 16.5 V
• Voltage-Supply-Digital 5V
• Configuration ADC
• Architecture SAR
• Number-of-Inputs 1
• Resolution 12 bit
• Reference-Type Internal
• Ratio-S-H:ADC
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 725 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Power-Consumption 390 mW
• Interface-Type Parallel
• Number-of-Converters 1 Converter
• INL-Integral-Nonlinearity +/- 1 LSB
