AD7248AQ

AD7248AQ Overview

Product belongs to the DACPORTR series. This product is categorized as Digital to Analog Converters Tube is the packaging method for this product Weight of 0.007760 oz Through Hole Mounting-Style CDIP-20 Operational temperature range: -40°C ~ 85°C Output-Type: Voltage - Buffered Number of channels: 1 Channel Supplier device package: 24-CDIP Data-Interface: Parallel 12 bits The Voltage-Supply-Analog is ±10.8 V ~ 16.5 V. The Voltage Supply Digital for this product is 10.8 V ~ 16.5 V. The architecture of this product is R-2R . Internal is the reference type. Number of D-A converters: 1 The 10μs (Typ) is an impressive 15 us. No Differential-Output Power-off control: 450 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 25 C 9 mA is 92 nA. Parallel interface type Maximum supply voltage of 15.75 V Minimum supply voltage is 14.25 V Number-of-Converters: 1 Converter

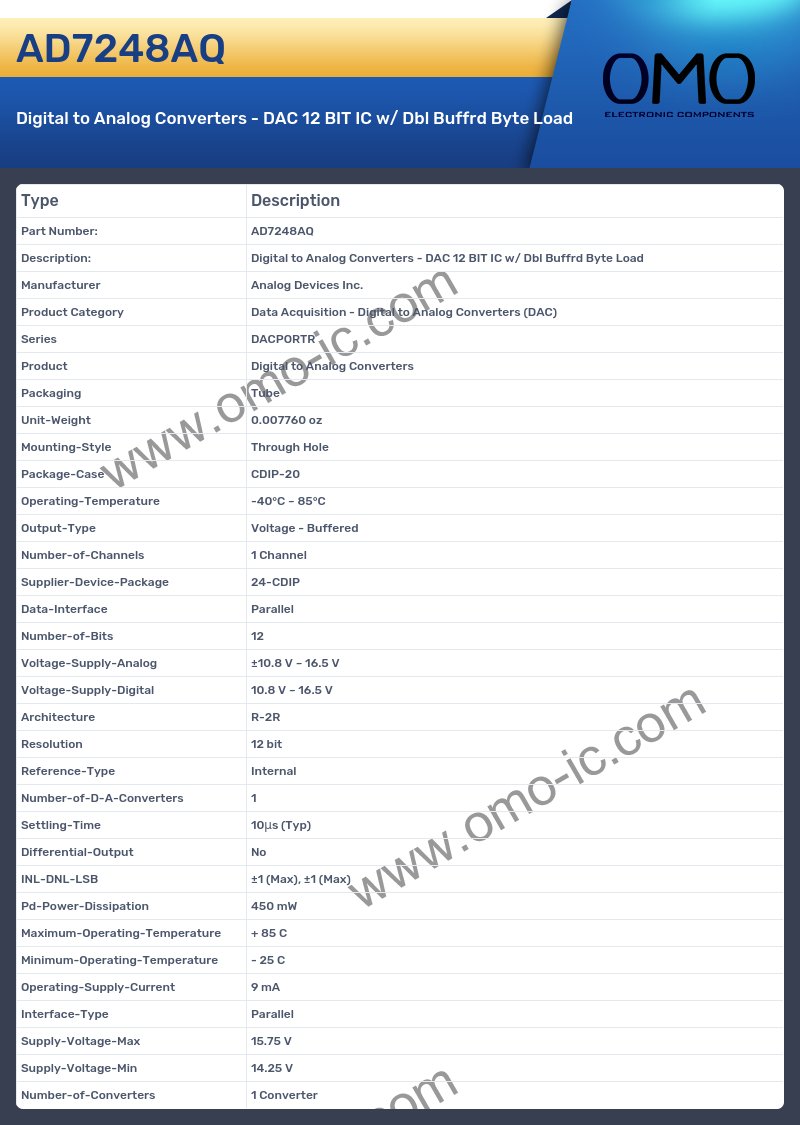

AD7248AQ Image

AD7248AQ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series DACPORTR
• Product Digital to Analog Converters
• Packaging Tube
• Unit-Weight 0.007760 oz
• Mounting-Style Through Hole
• Package-Case CDIP-20
• Operating-Temperature -40°C ~ 85°C
• Output-Type Voltage - Buffered
• Number-of-Channels 1 Channel
• Supplier-Device-Package 24-CDIP
• Data-Interface Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog ±10.8 V ~ 16.5 V
• Voltage-Supply-Digital 10.8 V ~ 16.5 V
• Architecture R-2R
• Resolution 12 bit
• Reference-Type Internal
• Number-of-D-A-Converters 1
• Settling-Time 10μs (Typ)
• Differential-Output No
• INL-DNL-LSB ±1 (Max), ±1 (Max)
• Pd-Power-Dissipation 450 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 25 C
• Operating-Supply-Current 9 mA
• Interface-Type Parallel
• Supply-Voltage-Max 15.75 V
• Supply-Voltage-Min 14.25 V
• Number-of-Converters 1 Converter
