AD7249AR

AD7249AR Overview

Product belongs to the DACPORTR series. This product is categorized as Digital to Analog Converters Type: General Purpose DAC Tube Alternate Packaging is the packaging method for this product Weight of 0.023492 oz SMD/SMT Mounting-Style SOIC-16 Operational temperature range: -40°C ~ 85°C Output-Type: Voltage - Buffered Number of channels: 2 Channel Supplier device package: 16-SOIC Data-Interface: SPI 12 bits The Voltage-Supply-Analog is ±10.8 V ~ 16.5 V. The Voltage Supply Digital for this product is -. The architecture of this product is R-2R . External, Internal is the reference type. Number of D-A converters: 2 The 10μs is an impressive 15 us. No Differential-Output Power-off control: 600 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 15 mA is 92 nA. Serial interface type Maximum supply voltage of 16.5 V Minimum supply voltage is 10.8 V The +/- 6 LSB of this product is 0.2%. Number-of-Converters: 2 Converter 125 kS/s Sampling Rate Integral Nonlinearity: +/- 1 LSB Differential nonlinearity: +/- 0.9 LSB

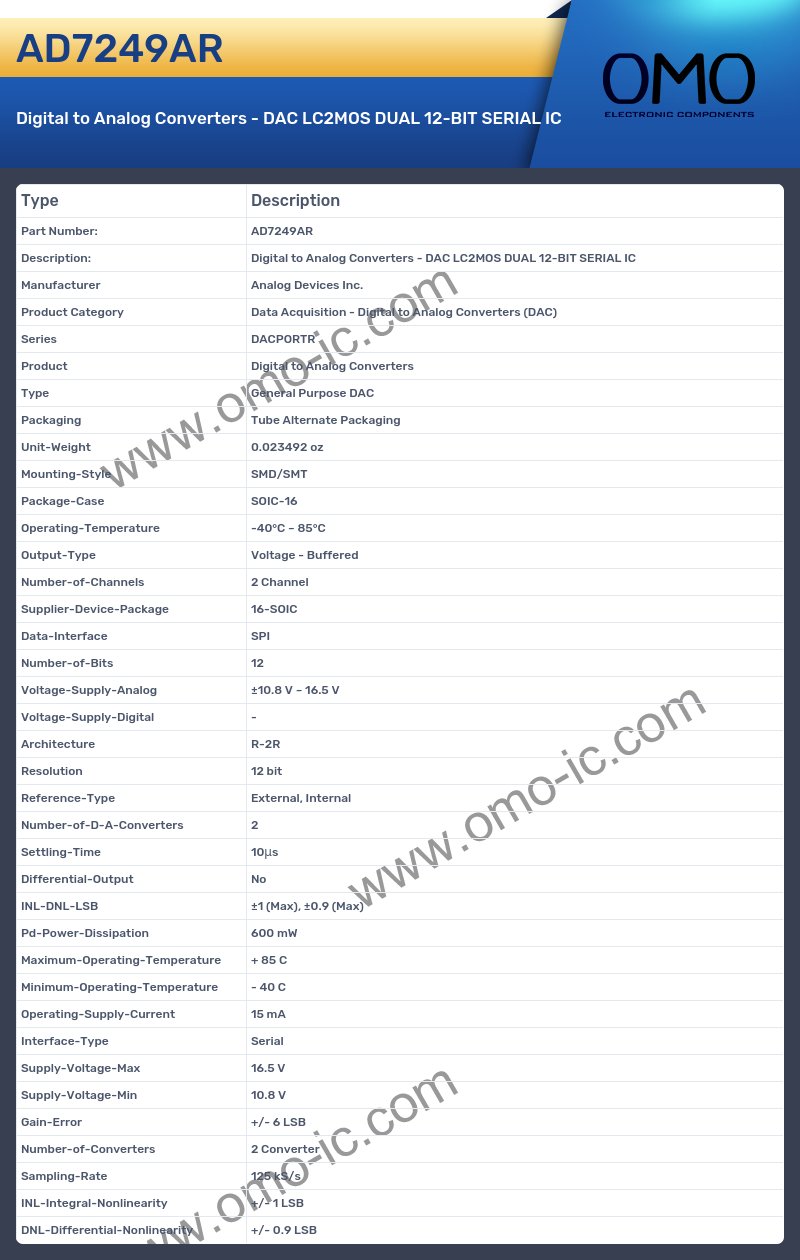

AD7249AR Image

AD7249AR Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series DACPORTR
• Product Digital to Analog Converters
• Type General Purpose DAC
• Packaging Tube Alternate Packaging
• Unit-Weight 0.023492 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16
• Operating-Temperature -40°C ~ 85°C
• Output-Type Voltage - Buffered
• Number-of-Channels 2 Channel
• Supplier-Device-Package 16-SOIC
• Data-Interface SPI
• Number-of-Bits 12
• Voltage-Supply-Analog ±10.8 V ~ 16.5 V
• Voltage-Supply-Digital -
• Architecture R-2R
• Resolution 12 bit
• Reference-Type External, Internal
• Number-of-D-A-Converters 2
• Settling-Time 10μs
• Differential-Output No
• INL-DNL-LSB ±1 (Max), ±0.9 (Max)
• Pd-Power-Dissipation 600 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 15 mA
• Interface-Type Serial
• Supply-Voltage-Max 16.5 V
• Supply-Voltage-Min 10.8 V
• Gain-Error +/- 6 LSB
• Number-of-Converters 2 Converter
• Sampling-Rate 125 kS/s
• INL-Integral-Nonlinearity +/- 1 LSB
• DNL-Differential-Nonlinearity +/- 0.9 LSB
