AD746SQ

AD746SQ Overview

Product belongs to the AD746 series. This product is categorized as Precision Amplifiers Tube is the packaging method for this product Through Hole Mounting-Style Number of channels: 2 Channel Power-off control: No Shutdown Power-off control: 500 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C 8 mA is 92 nA. The AD746JR-EBZ. Maximum supply voltage of 36 V Minimum supply voltage is 9.6 V CDIP-8 Input bias current of 250 pA The 300 uV. The 95 dB. The CMRR-Common-Mode-Rejection-Ratio is 88 dB. The 45 nV/sqrt Hz at +/- 15 V of this product is 110 nV/sqrt Hz. 109.54 dB voltage gain

AD746SQ Image

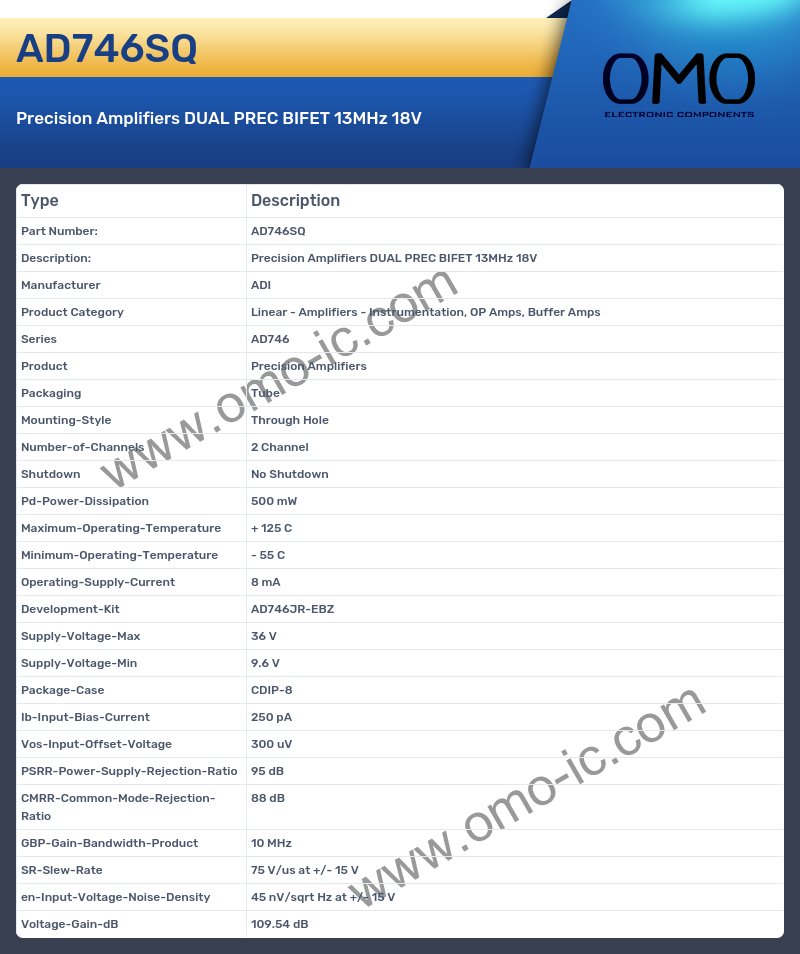

AD746SQ Specifications

• Manufacturer ADI
• Product Category Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
• Series AD746
• Product Precision Amplifiers
• Packaging Tube
• Mounting-Style Through Hole
• Number-of-Channels 2 Channel
• Shutdown No Shutdown
• Pd-Power-Dissipation 500 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Operating-Supply-Current 8 mA
• Development-Kit AD746JR-EBZ
• Supply-Voltage-Max 36 V
• Supply-Voltage-Min 9.6 V
• Package-Case CDIP-8
• Ib-Input-Bias-Current 250 pA
• Vos-Input-Offset-Voltage 300 uV
• PSRR-Power-Supply-Rejection-Ratio 95 dB
• CMRR-Common-Mode-Rejection-Ratio 88 dB
• GBP-Gain-Bandwidth-Product 10 MHz
• SR-Slew-Rate 75 V/us at +/- 15 V
• en-Input-Voltage-Noise-Density 45 nV/sqrt Hz at +/- 15 V
• Voltage-Gain-dB 109.54 dB
