AD7503JQ Overview

Product belongs to the - series. Tube is the packaging method for this product Product Obsolete Demultiplexer Circuit with 8: outputs This product features a 1. Maximum On-State Resistance: 300 Ohm " 12 Ohm Channel-to-Channel Matching Dual voltage supply of ±15V The Switch Time is 800ns, 800ns (Typ). This product has a - The channel capacitance is 5pF, 30pF. Operating Temperature of - Package type is 16-CDIP (0.300", 7.62mm) The supplier device package for this product is 16-CDIP. AD7503 is the base part number.

AD7503JQ Image

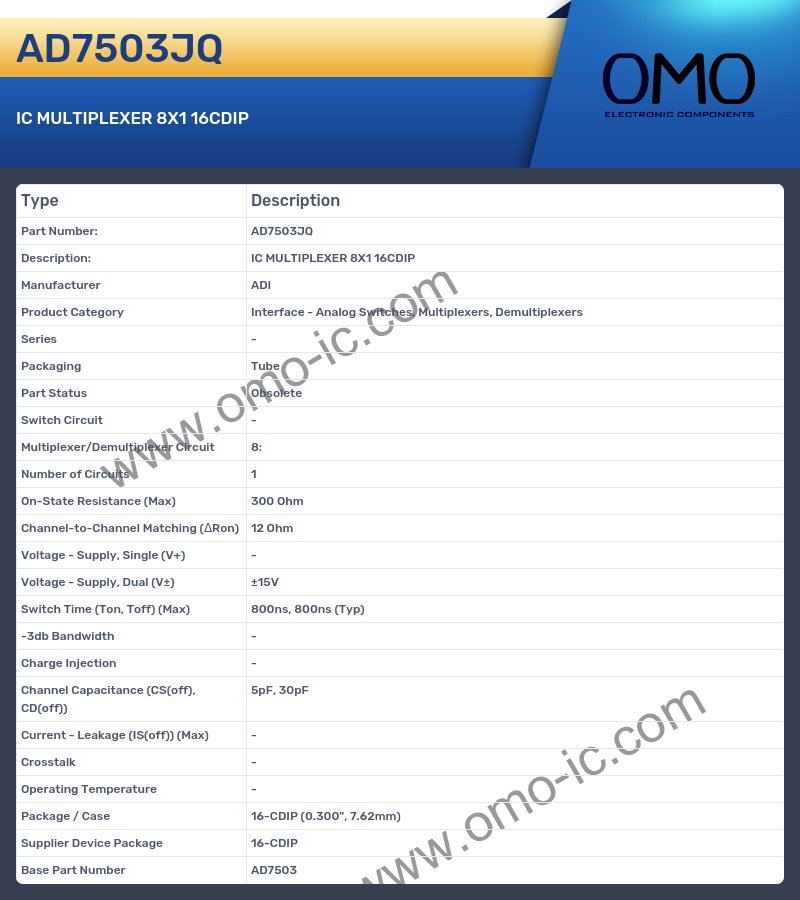

AD7503JQ Specifications

• Manufacturer ADI
• Product Category Interface - Analog Switches, Multiplexers, Demultiplexers
• Series -
• Packaging Tube
• Part Status Obsolete
• Switch Circuit -
• Multiplexer/Demultiplexer Circuit 8:
• Number of Circuits 1
• On-State Resistance (Max) 300 Ohm
• Channel-to-Channel Matching (ΔRon) 12 Ohm
• Voltage - Supply, Single (V+) -
• Voltage - Supply, Dual (V±) ±15V
• Switch Time (Ton, Toff) (Max) 800ns, 800ns (Typ)
• -3db Bandwidth -
• Charge Injection -
• Channel Capacitance (CS(off), CD(off)) 5pF, 30pF
• Current - Leakage (IS(off)) (Max) -
• Crosstalk -
• Operating Temperature -
• Package / Case 16-CDIP (0.300", 7.62mm)
• Supplier Device Package 16-CDIP
• Base Part Number AD7503
