AD7524JP

AD7524JP Overview

Product belongs to the AD7524 series. This product is categorized as Digital to Analog Converters Tube is the packaging method for this product Weight of 0.025468 oz SMD/SMT Mounting-Style PLCC-20 Operational temperature range: -40°C ~ 85°C Output-Type: Current - Unbuffered Number of channels: 1 Channel Supplier device package: 20-PLCC (9x9) Data-Interface: Parallel 8 bits The Voltage-Supply-Analog is 5 V ~ 15 V. The Voltage Supply Digital for this product is 5 V ~ 15 V. The architecture of this product is R-2R . External is the reference type. Number of D-A converters: 1 The 500μs is an impressive 15 us. Yes Differential-Output Power-off control: 450 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 2 mA is 92 nA. Parallel interface type Maximum supply voltage of 15 V Minimum supply voltage is 5 V Number-of-Converters: 1 Converter 4 MS/s Sampling Rate

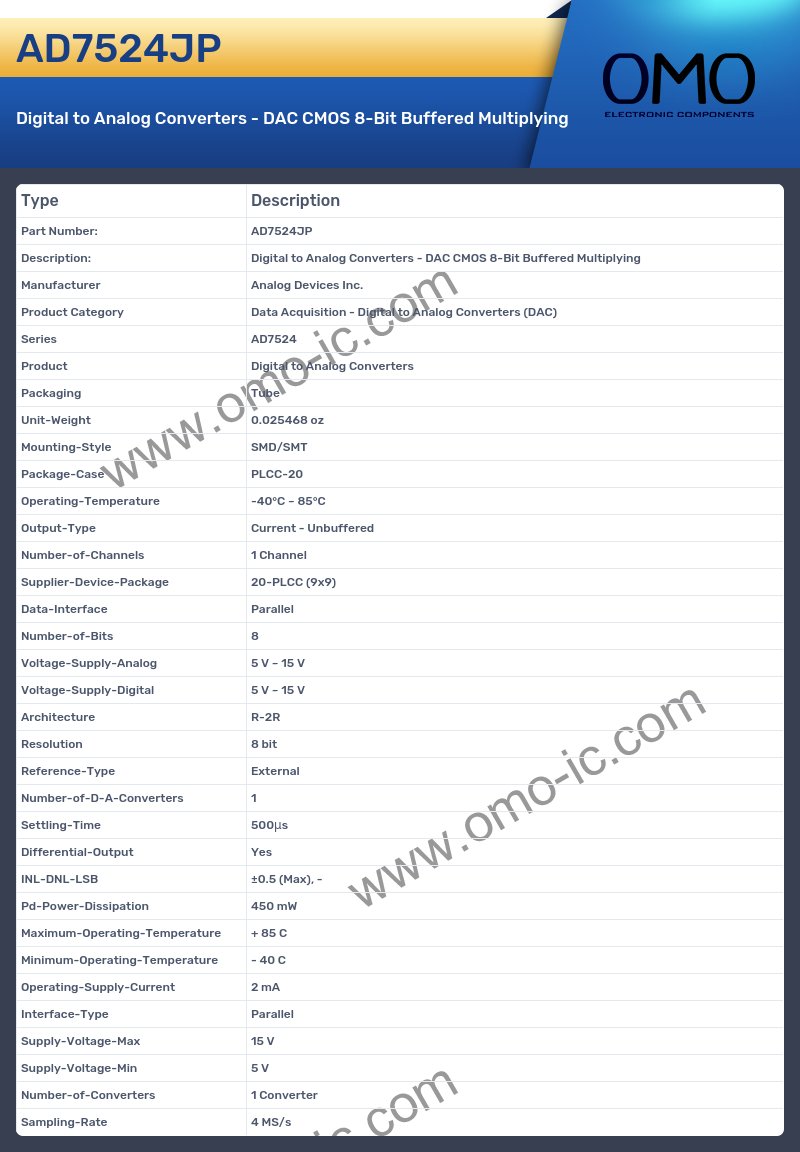

AD7524JP Image

AD7524JP Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series AD7524
• Product Digital to Analog Converters
• Packaging Tube
• Unit-Weight 0.025468 oz
• Mounting-Style SMD/SMT
• Package-Case PLCC-20
• Operating-Temperature -40°C ~ 85°C
• Output-Type Current - Unbuffered
• Number-of-Channels 1 Channel
• Supplier-Device-Package 20-PLCC (9x9)
• Data-Interface Parallel
• Number-of-Bits 8
• Voltage-Supply-Analog 5 V ~ 15 V
• Voltage-Supply-Digital 5 V ~ 15 V
• Architecture R-2R
• Resolution 8 bit
• Reference-Type External
• Number-of-D-A-Converters 1
• Settling-Time 500μs
• Differential-Output Yes
• INL-DNL-LSB ±0.5 (Max), -
• Pd-Power-Dissipation 450 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 2 mA
• Interface-Type Parallel
• Supply-Voltage-Max 15 V
• Supply-Voltage-Min 5 V
• Number-of-Converters 1 Converter
• Sampling-Rate 4 MS/s
