AD7528LR

AD7528LR Overview

Product belongs to the AD7528 series. This product is categorized as Digital to Analog Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.028254 oz SMD/SMT Mounting-Style SOIC-20 Operational temperature range: -40°C ~ 85°C Output-Type: Current - Unbuffered Number of channels: 2 Channel Supplier device package: 20-SOIC W Data-Interface: Parallel 8 bits The Voltage-Supply-Analog is 5 V ~ 15 V. The Voltage Supply Digital for this product is 5 V ~ 15 V. The architecture of this product is R-2R . External is the reference type. Number of D-A converters: 2 The 400μs is an impressive 15 us. No Differential-Output Power-off control: 30 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C Parallel interface type Maximum supply voltage of 15 V Minimum supply voltage is 5 V Number-of-Converters: 2 Converter 5.6 MS/s Sampling Rate

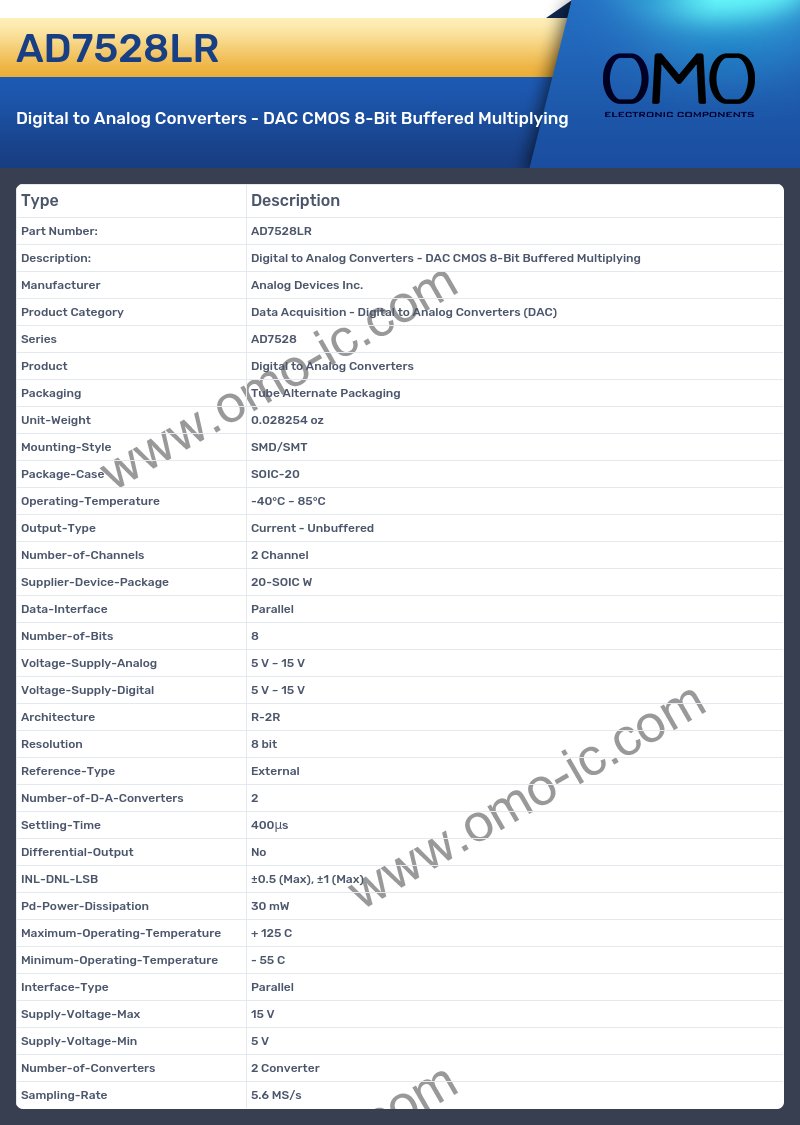

AD7528LR Image

AD7528LR Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series AD7528
• Product Digital to Analog Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.028254 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-20
• Operating-Temperature -40°C ~ 85°C
• Output-Type Current - Unbuffered
• Number-of-Channels 2 Channel
• Supplier-Device-Package 20-SOIC W
• Data-Interface Parallel
• Number-of-Bits 8
• Voltage-Supply-Analog 5 V ~ 15 V
• Voltage-Supply-Digital 5 V ~ 15 V
• Architecture R-2R
• Resolution 8 bit
• Reference-Type External
• Number-of-D-A-Converters 2
• Settling-Time 400μs
• Differential-Output No
• INL-DNL-LSB ±0.5 (Max), ±1 (Max)
• Pd-Power-Dissipation 30 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Interface-Type Parallel
• Supply-Voltage-Max 15 V
• Supply-Voltage-Min 5 V
• Number-of-Converters 2 Converter
• Sampling-Rate 5.6 MS/s
