AD7578KN Overview

Product belongs to the AD7578 series. This product is categorized as Analog to Digital Converters Tube is the packaging method for this product Weight of 0.131925 oz Through Hole Mounting-Style PDIP-24 The Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Output-Type: TTL Number of channels: 1 Channel Supplier device package: 24-PDIP This product's -. Data-Interface: Parallel 12 bits The Voltage-Supply-Analog is +5V, -15V. The Voltage Supply Digital for this product is 5V. Configuration ADC The architecture of this product is SAR . External is the reference type. 1 units Power-off control: 75 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product has a Power Consumption of 75 mW. Parallel interface type The 0.25 LSB of this product is 0.2%. Number-of-Converters: 1 Converter 10 kS/s Sampling Rate Differential nonlinearity: 1 LSB

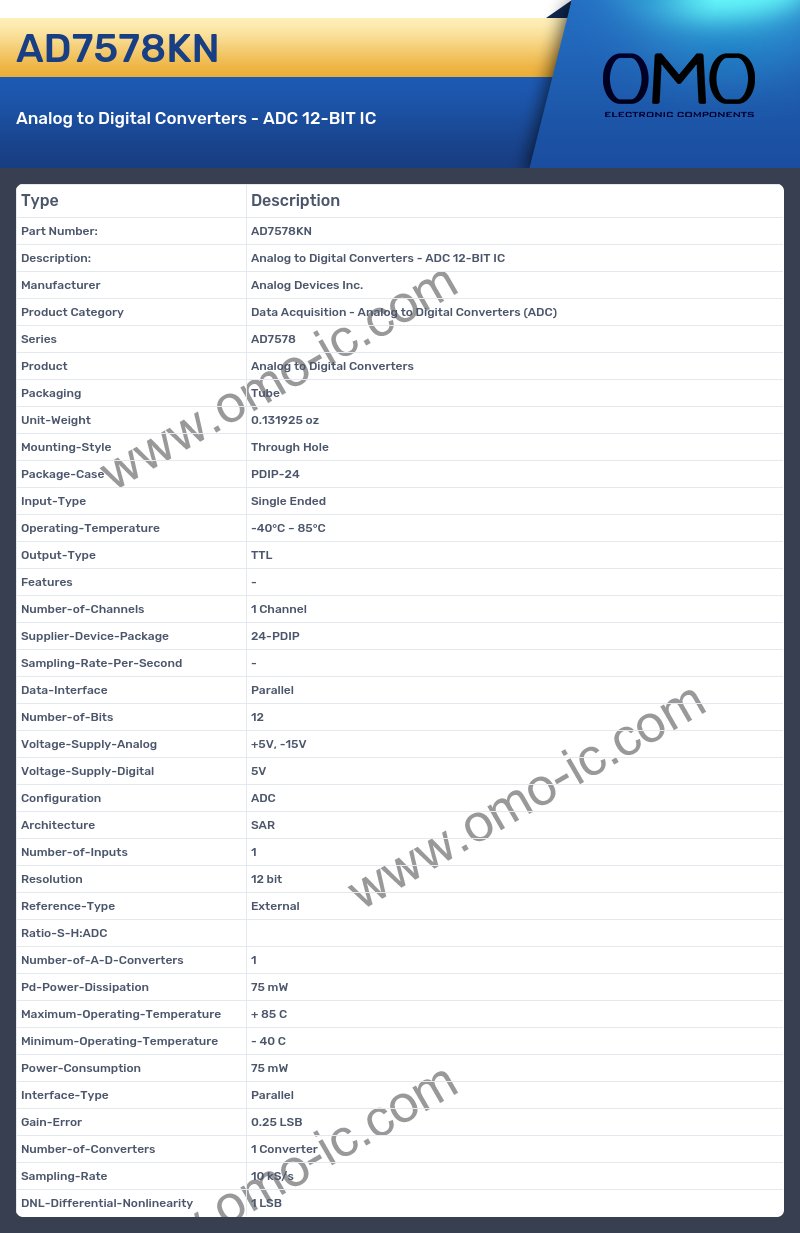

AD7578KN Image

AD7578KN Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series AD7578
• Product Analog to Digital Converters
• Packaging Tube
• Unit-Weight 0.131925 oz
• Mounting-Style Through Hole
• Package-Case PDIP-24
• Input-Type Single Ended
• Operating-Temperature -40°C ~ 85°C
• Output-Type TTL
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 24-PDIP
• Sampling-Rate-Per-Second -
• Data-Interface Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog +5V, -15V
• Voltage-Supply-Digital 5V
• Configuration ADC
• Architecture SAR
• Number-of-Inputs 1
• Resolution 12 bit
• Reference-Type External
• Ratio-S-H:ADC
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 75 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Power-Consumption 75 mW
• Interface-Type Parallel
• Gain-Error 0.25 LSB
• Number-of-Converters 1 Converter
• Sampling-Rate 10 kS/s
• DNL-Differential-Nonlinearity 1 LSB
