AD7685ARMZ

AD7685ARMZ Overview

Product belongs to the PulSARR series. This product is categorized as Analog to Digital Converters Type: S/H ADC Tube Alternate Packaging is the packaging method for this product Weight of 0.005051 oz SMD/SMT Mounting-Style MSOP-10 The Pseudo-Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 1 Channel Supplier device package: 10-MSOP This product's 250k. Data-Interface: SPI, DSP 16 bits The Voltage-Supply-Analog is 2.3 V ~ 5.5 V. The Voltage Supply Digital for this product is 2.3 V ~ 5.5 V. Configuration S/H-ADC The architecture of this product is SAR . External is the reference type. 1 units Power-off control: 15 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product has a Power Consumption of 10 mW. Serial 3-Wire 4-Wire SPI interface type Signal-to-Noise Ratio of 93.5 dB The +/- 30 LSB of this product is 0.2%. Number-of-Converters: 1 Converter 250 kS/s Sampling Rate Integral Nonlinearity: +/- 6 LSB

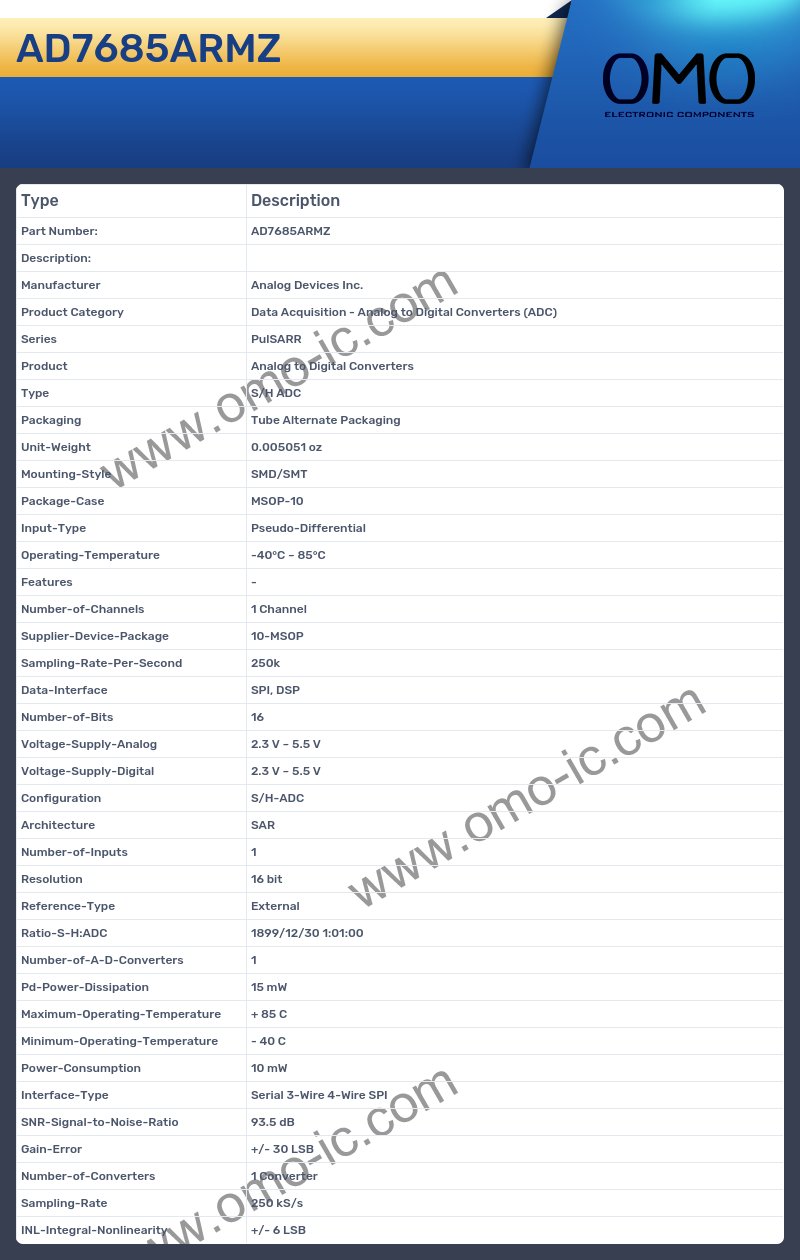

AD7685ARMZ Image

AD7685ARMZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series PulSARR
• Product Analog to Digital Converters
• Type S/H ADC
• Packaging Tube Alternate Packaging
• Unit-Weight 0.005051 oz
• Mounting-Style SMD/SMT
• Package-Case MSOP-10
• Input-Type Pseudo-Differential
• Operating-Temperature -40°C ~ 85°C
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 10-MSOP
• Sampling-Rate-Per-Second 250k
• Data-Interface SPI, DSP
• Number-of-Bits 16
• Voltage-Supply-Analog 2.3 V ~ 5.5 V
• Voltage-Supply-Digital 2.3 V ~ 5.5 V
• Configuration S/H-ADC
• Architecture SAR
• Number-of-Inputs 1
• Resolution 16 bit
• Reference-Type External
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 15 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Power-Consumption 10 mW
• Interface-Type Serial 3-Wire 4-Wire SPI
• SNR-Signal-to-Noise-Ratio 93.5 dB
• Gain-Error +/- 30 LSB
• Number-of-Converters 1 Converter
• Sampling-Rate 250 kS/s
• INL-Integral-Nonlinearity +/- 6 LSB
