AD7701AR

AD7701AR Overview

Product belongs to the AD7701 series. This product is categorized as Analog to Digital Converters Type: S/H ADC Tube is the packaging method for this product Weight of 0.028254 oz SMD/SMT Mounting-Style SOIC-20 The Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 1 Channel Supplier device package: 20-SOIC W This product's 4k. Data-Interface: SPI 16 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. Configuration S/H-ADC The architecture of this product is Sigma-Delta . External is the reference type. 1 units Power-off control: 37 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product has a Power Consumption of 25 mW. Serial interface type The +/- 2 LSB of this product is 0.2%. Number-of-Converters: 1 Converter 4 kS/s Sampling Rate Integral Nonlinearity: +/- 0.003 %FSR Differential nonlinearity: +/- 0.5 LSB

AD7701AR Image

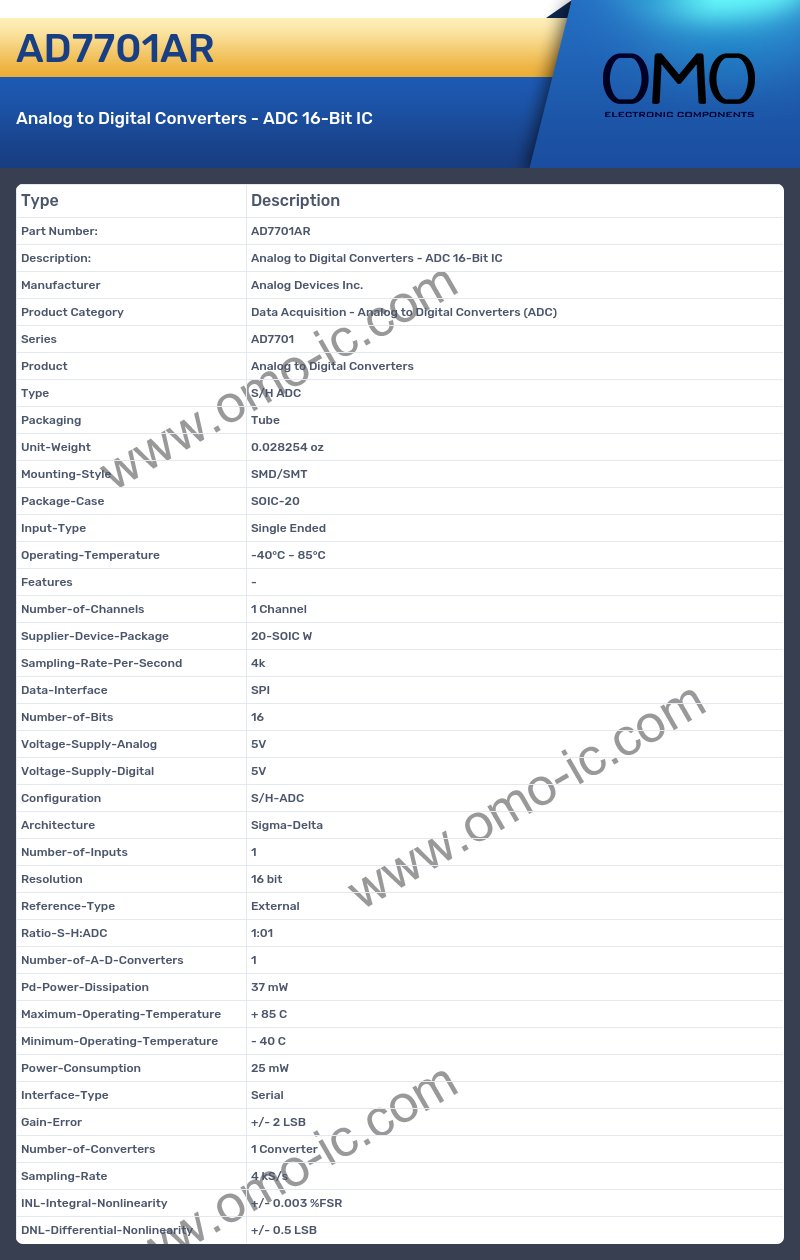

AD7701AR Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series AD7701
• Product Analog to Digital Converters
• Type S/H ADC
• Packaging Tube
• Unit-Weight 0.028254 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-20
• Input-Type Single Ended
• Operating-Temperature -40°C ~ 85°C
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 20-SOIC W
• Sampling-Rate-Per-Second 4k
• Data-Interface SPI
• Number-of-Bits 16
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Configuration S/H-ADC
• Architecture Sigma-Delta
• Number-of-Inputs 1
• Resolution 16 bit
• Reference-Type External
• Ratio-S-H:ADC 1:01
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 37 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Power-Consumption 25 mW
• Interface-Type Serial
• Gain-Error +/- 2 LSB
• Number-of-Converters 1 Converter
• Sampling-Rate 4 kS/s
• INL-Integral-Nonlinearity +/- 0.003 %FSR
• DNL-Differential-Nonlinearity +/- 0.5 LSB
