AD7705BR-REEL

AD7705BR-REEL Overview

Product belongs to the AD7705 series. This product is categorized as Analog to Digital Converters Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.023492 oz SMD/SMT Mounting-Style SOIC-16 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 2 Channel Supplier device package: 16-SOIC This product's 500. Data-Interface: SPI, DSP 16 bits The Voltage-Supply-Analog is 2.7 V ~ 3.3 V, 5V. The Voltage Supply Digital for this product is 2.7 V ~ 3.3 V, 5V. Configuration MUX-PGA-ADC The architecture of this product is Sigma-Delta . External is the reference type. 1 units Power-off control: 6.5 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial 3-Wire SPI interface type Signal-to-Noise Ratio of 116 dB The EVAL-AD7705EBZ. The +/- 0.003 %FSR of this product is 0.2%. Number-of-Converters: 1 Converter 500 S/s Sampling Rate Integral Nonlinearity: +/- 0.003 %FSR

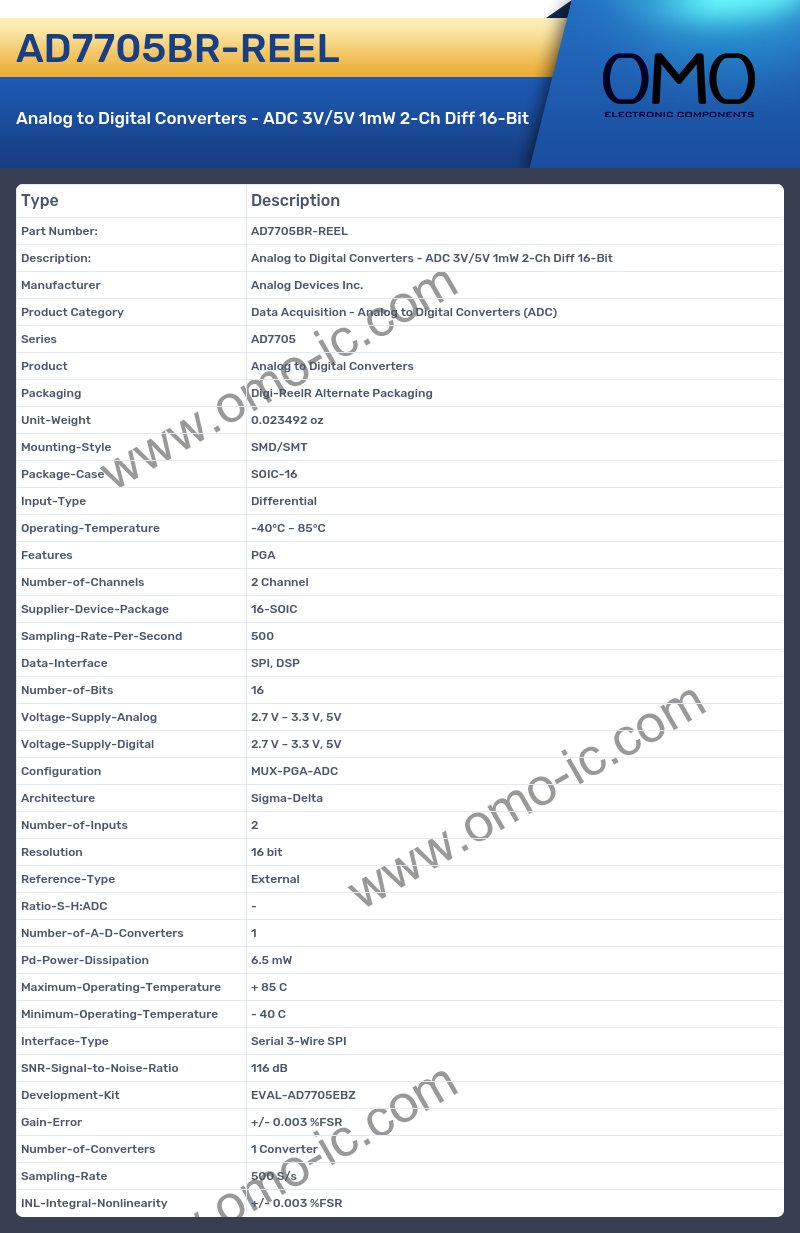

AD7705BR-REEL Image

AD7705BR-REEL Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series AD7705
• Product Analog to Digital Converters
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.023492 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16
• Input-Type Differential
• Operating-Temperature -40°C ~ 85°C
• Features PGA
• Number-of-Channels 2 Channel
• Supplier-Device-Package 16-SOIC
• Sampling-Rate-Per-Second 500
• Data-Interface SPI, DSP
• Number-of-Bits 16
• Voltage-Supply-Analog 2.7 V ~ 3.3 V, 5V
• Voltage-Supply-Digital 2.7 V ~ 3.3 V, 5V
• Configuration MUX-PGA-ADC
• Architecture Sigma-Delta
• Number-of-Inputs 2
• Resolution 16 bit
• Reference-Type External
• Ratio-S-H:ADC -
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 6.5 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial 3-Wire SPI
• SNR-Signal-to-Noise-Ratio 116 dB
• Development-Kit EVAL-AD7705EBZ
• Gain-Error +/- 0.003 %FSR
• Number-of-Converters 1 Converter
• Sampling-Rate 500 S/s
• INL-Integral-Nonlinearity +/- 0.003 %FSR
