AD7705BRZ

AD7705BRZ Overview

Product belongs to the AD7705 series. This product is categorized as Analog to Digital Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.023492 oz SMD/SMT Mounting-Style SOIC-16 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 2 Channel Supplier device package: 16-SOIC This product's 500. Data-Interface: SPI, DSP 16 bits The Voltage-Supply-Analog is 2.7 V ~ 3.3 V, 5V. The Voltage Supply Digital for this product is 2.7 V ~ 3.3 V, 5V. Configuration MUX-PGA-ADC The architecture of this product is Sigma-Delta . External is the reference type. 1 units Power-off control: 6.5 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial 3-Wire SPI interface type Signal-to-Noise Ratio of 116 dB The EVAL-AD7705EBZ. The +/- 0.003 %FSR of this product is 0.2%. Number-of-Converters: 1 Converter 500 S/s Sampling Rate Integral Nonlinearity: +/- 0.003 %FSR

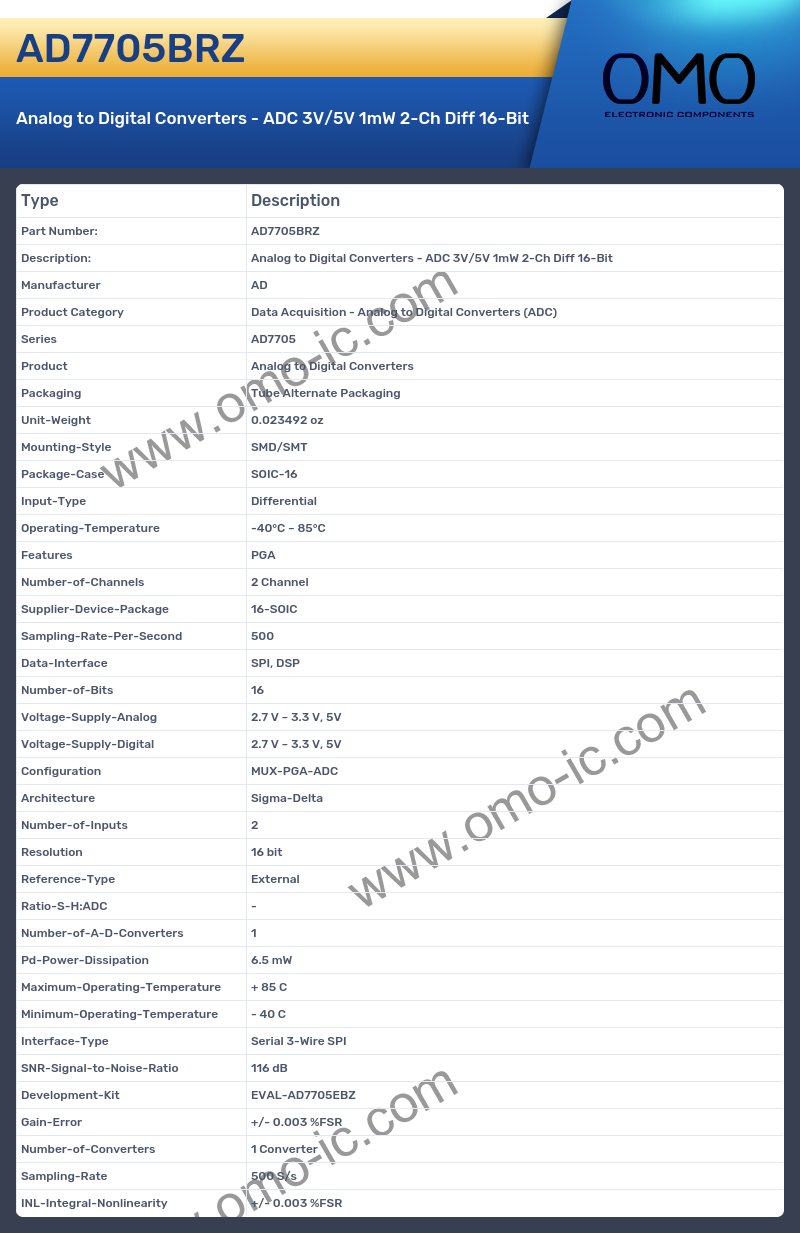

AD7705BRZ Image

AD7705BRZ Specifications

• Manufacturer AD
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series AD7705
• Product Analog to Digital Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.023492 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16
• Input-Type Differential
• Operating-Temperature -40°C ~ 85°C
• Features PGA
• Number-of-Channels 2 Channel
• Supplier-Device-Package 16-SOIC
• Sampling-Rate-Per-Second 500
• Data-Interface SPI, DSP
• Number-of-Bits 16
• Voltage-Supply-Analog 2.7 V ~ 3.3 V, 5V
• Voltage-Supply-Digital 2.7 V ~ 3.3 V, 5V
• Configuration MUX-PGA-ADC
• Architecture Sigma-Delta
• Number-of-Inputs 2
• Resolution 16 bit
• Reference-Type External
• Ratio-S-H:ADC -
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 6.5 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial 3-Wire SPI
• SNR-Signal-to-Noise-Ratio 116 dB
• Development-Kit EVAL-AD7705EBZ
• Gain-Error +/- 0.003 %FSR
• Number-of-Converters 1 Converter
• Sampling-Rate 500 S/s
• INL-Integral-Nonlinearity +/- 0.003 %FSR
