AD7721AR

AD7721AR Overview

Product belongs to the AD7721 series. This product is categorized as Analog to Digital Converters Tube is the packaging method for this product Weight of 0.078125 oz SMD/SMT Mounting-Style SOIC-28 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 1 Channel Supplier device package: 28-SOIC W This product's 312.5k, 468.75k. Data-Interface: SPI, Parallel bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. Configuration ADC The architecture of this product is Sigma-Delta . External is the reference type. 1 units Power-off control: 150 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Parallel Serial interface type The +/- 4.88 mV of this product is 0.2%. Number-of-Converters: 1 Converter 468.75 kS/s Sampling Rate Integral Nonlinearity: +/- 16 LSB Differential nonlinearity: +/- 8 LSB

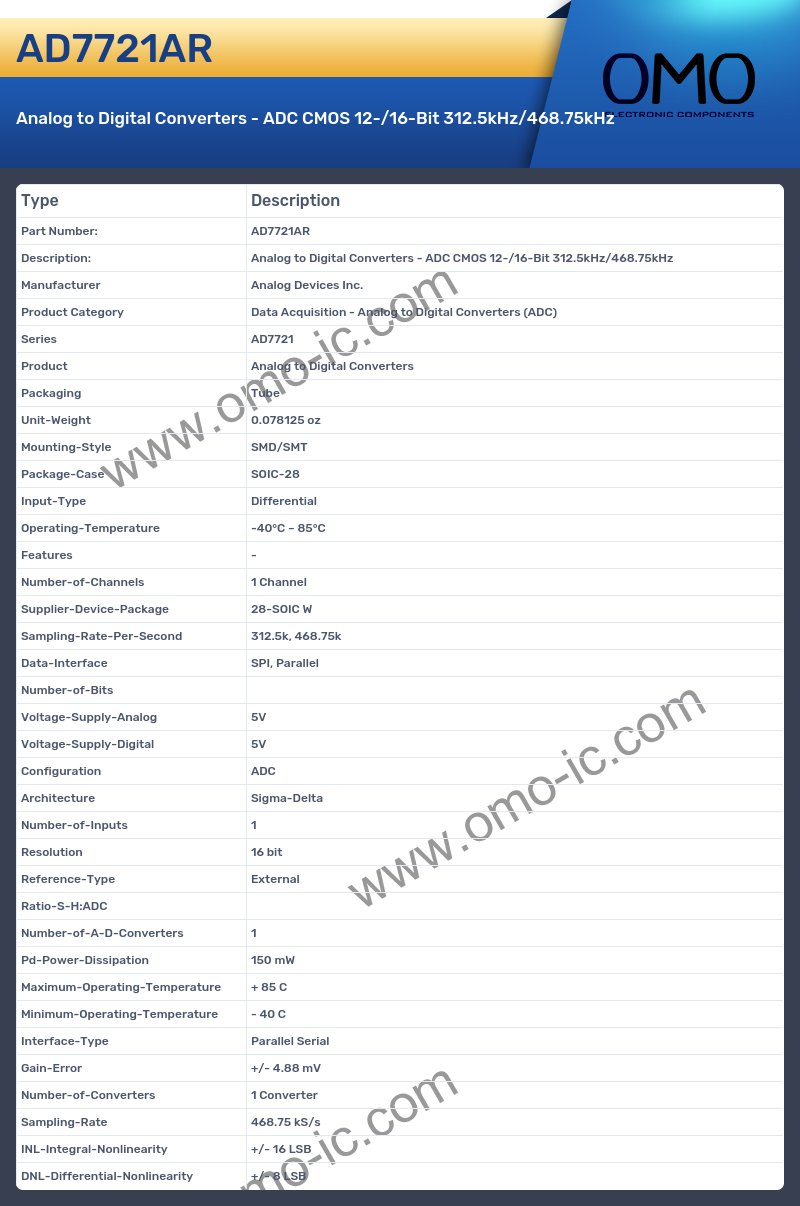

AD7721AR Image

AD7721AR Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series AD7721
• Product Analog to Digital Converters
• Packaging Tube
• Unit-Weight 0.078125 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-28
• Input-Type Differential
• Operating-Temperature -40°C ~ 85°C
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 28-SOIC W
• Sampling-Rate-Per-Second 312.5k, 468.75k
• Data-Interface SPI, Parallel
• Number-of-Bits
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Configuration ADC
• Architecture Sigma-Delta
• Number-of-Inputs 1
• Resolution 16 bit
• Reference-Type External
• Ratio-S-H:ADC
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 150 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Parallel Serial
• Gain-Error +/- 4.88 mV
• Number-of-Converters 1 Converter
• Sampling-Rate 468.75 kS/s
• INL-Integral-Nonlinearity +/- 16 LSB
• DNL-Differential-Nonlinearity +/- 8 LSB
