AD7739BRU Overview

Product belongs to the AD7739 series. This product is categorized as Analog to Digital Converters Tube is the packaging method for this product Weight of 0.007478 oz SMD/SMT Mounting-Style TSSOP-24 The Differential, Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 105°C Number of channels: 8 Channel Supplier device package: 24-TSSOP This product's 15.1k. Data-Interface: SPI, DSP 24 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 2.7 V ~ 3.6 V, 5V. Configuration MUX-ADC The architecture of this product is Sigma-Delta . External is the reference type. 1 units Power-off control: 100 mW Maximum operating temperature of + 105 C Minimum operating temperature: - 40 C This product has a Power Consumption of 85 mW. Serial 3-Wire SPI interface type The EVAL-AD7739EBZ. The +/- 0.2 %FSR of this product is 0.2%. Number-of-Converters: 1 Converter 15.1 kS/s Sampling Rate Integral Nonlinearity: +/- 0.0015 %FSR

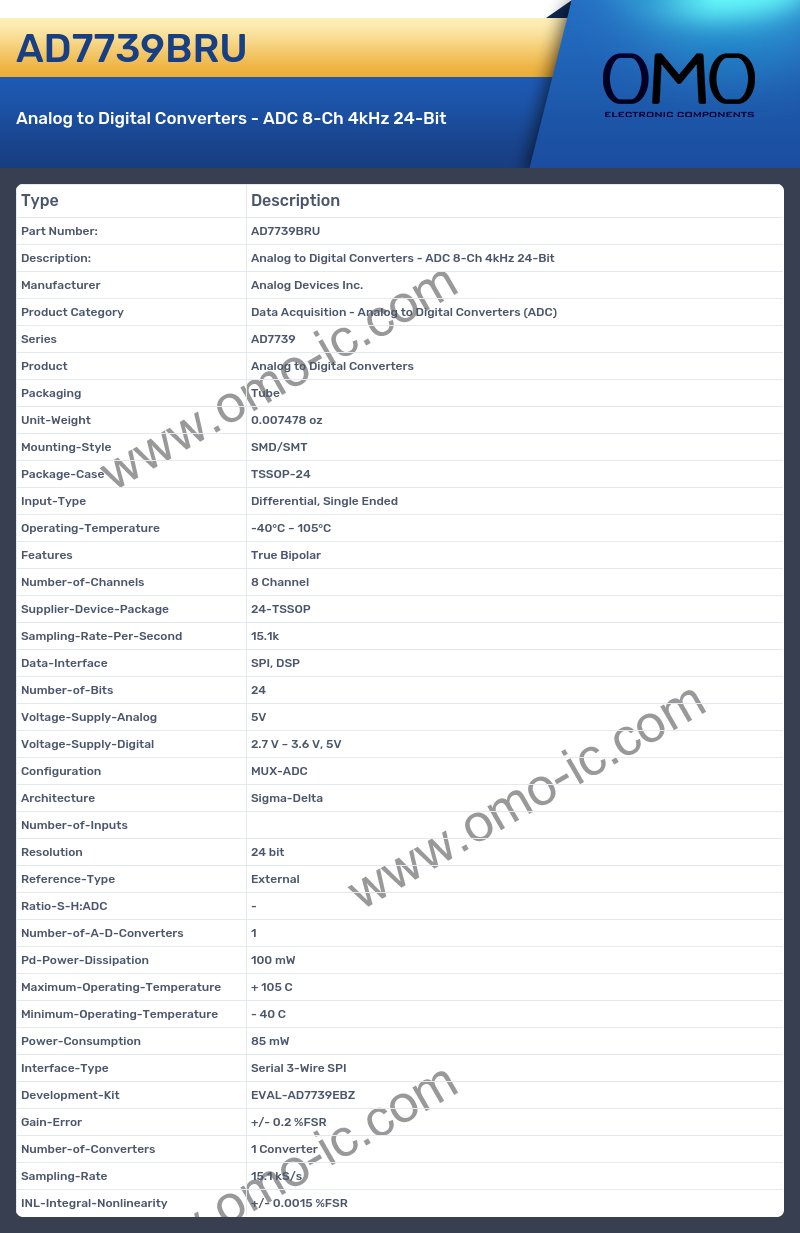

AD7739BRU Image

AD7739BRU Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series AD7739
• Product Analog to Digital Converters
• Packaging Tube
• Unit-Weight 0.007478 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-24
• Input-Type Differential, Single Ended
• Operating-Temperature -40°C ~ 105°C
• Features True Bipolar
• Number-of-Channels 8 Channel
• Supplier-Device-Package 24-TSSOP
• Sampling-Rate-Per-Second 15.1k
• Data-Interface SPI, DSP
• Number-of-Bits 24
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 2.7 V ~ 3.6 V, 5V
• Configuration MUX-ADC
• Architecture Sigma-Delta
• Number-of-Inputs
• Resolution 24 bit
• Reference-Type External
• Ratio-S-H:ADC -
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 100 mW
• Maximum-Operating-Temperature + 105 C
• Minimum-Operating-Temperature - 40 C
• Power-Consumption 85 mW
• Interface-Type Serial 3-Wire SPI
• Development-Kit EVAL-AD7739EBZ
• Gain-Error +/- 0.2 %FSR
• Number-of-Converters 1 Converter
• Sampling-Rate 15.1 kS/s
• INL-Integral-Nonlinearity +/- 0.0015 %FSR
