AD7766BRUZ Overview

Product belongs to the AD7766 series. This product is categorized as Analog to Digital Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.006102 oz SMD/SMT Mounting-Style TSSOP-16 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 105°C Number of channels: 1 Channel Supplier device package: 16-TSSOP This product's 128k. Data-Interface: SPI 24 bits The Voltage-Supply-Analog is 2.5V. The Voltage Supply Digital for this product is 2.5V. Configuration ADC The architecture of this product is SAR . External is the reference type. 1 units Power-off control: 18 mW Maximum operating temperature of + 105 C Minimum operating temperature: - 40 C This product has a Power Consumption of 15 mW. Serial 3-Wire interface type Signal-to-Noise Ratio of 108.5 dB The 0.075 %FSR of this product is 0.2%. Number-of-Converters: 1 Converter 128 kS/s Sampling Rate Integral Nonlinearity: +/- 15 ppm

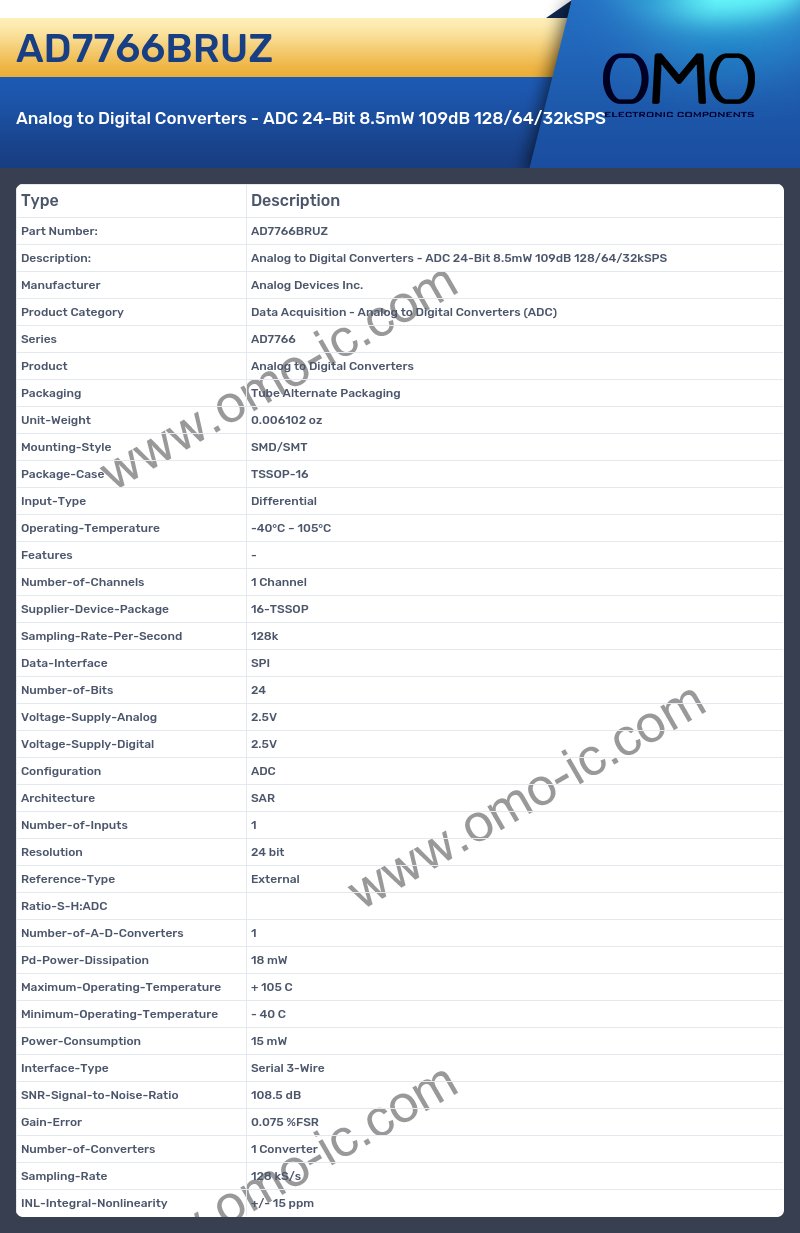

AD7766BRUZ Image

AD7766BRUZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series AD7766
• Product Analog to Digital Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.006102 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-16
• Input-Type Differential
• Operating-Temperature -40°C ~ 105°C
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 16-TSSOP
• Sampling-Rate-Per-Second 128k
• Data-Interface SPI
• Number-of-Bits 24
• Voltage-Supply-Analog 2.5V
• Voltage-Supply-Digital 2.5V
• Configuration ADC
• Architecture SAR
• Number-of-Inputs 1
• Resolution 24 bit
• Reference-Type External
• Ratio-S-H:ADC
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 18 mW
• Maximum-Operating-Temperature + 105 C
• Minimum-Operating-Temperature - 40 C
• Power-Consumption 15 mW
• Interface-Type Serial 3-Wire
• SNR-Signal-to-Noise-Ratio 108.5 dB
• Gain-Error 0.075 %FSR
• Number-of-Converters 1 Converter
• Sampling-Rate 128 kS/s
• INL-Integral-Nonlinearity +/- 15 ppm
