| Mfr. #: | AD7768BSTZ |
|---|---|
| Hersteller: | Analog Devices Inc. |
| Beschreibung: | Analog to Digital Converters - ADC 256ksps 8 ch wideband 24B SD-ADC |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | AD7768BSTZ Datenblatt |
Product belongs to the - series. This product is categorized as Analog to Digital Converters Type: Simultaneous Sampling ADC Tray Alternate Packaging is the packaging method for this product Weight of 0.012088 oz SMD/SMT Mounting-Style LQFP-64 The Differential, Pseudo-Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 105°C Number of channels: 8 Channel Supplier device package: 64-LQFP (10x10) This product's 256k. Data-Interface: SPI, DSP 24 bits The Voltage-Supply-Analog is 2 V ~ 5.5 V. The Voltage Supply Digital for this product is 2 V ~ 3.6 V. Configuration ADC The architecture of this product is Sigma-Delta . External is the reference type. 8 units Power-off control: No Shutdown Power-off control: 631 mW Maximum operating temperature of + 105 C Minimum operating temperature: - 40 C Serial SPI interface type Signal-to-Noise Ratio of 111 dB The EVAL-AD7768FMCZ. Number-of-Converters: 8 Converter 256 kS/s Sampling Rate Analog supply voltage: 2.25 V to 5 V 5 V Digital Supply Voltage: 1.8 V 2.5 V to 3.6 V SFDR: 128 dBc Signal-to-Noise-and-Distortion-Ratio: 106.9 dB Total Harmonic Distortion: - 120 dB
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

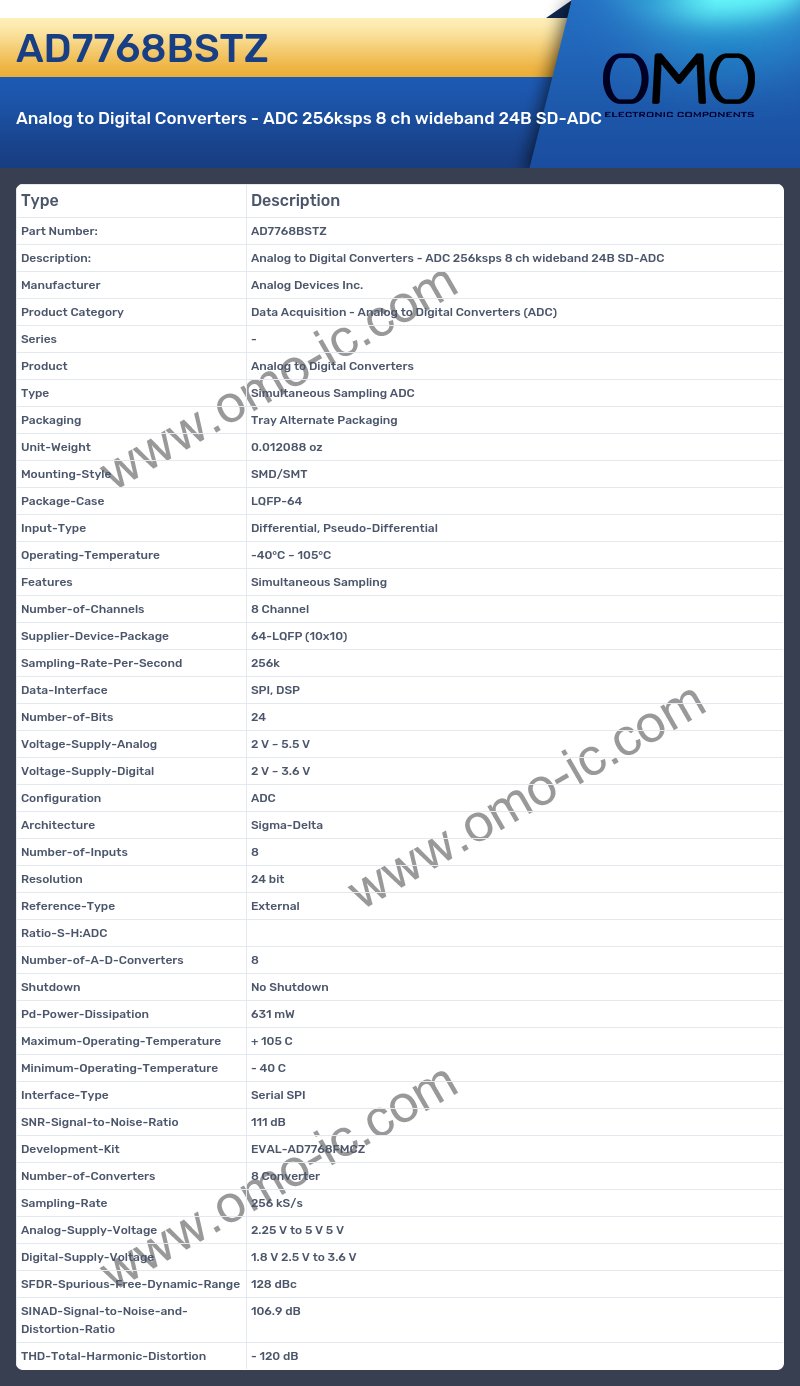

AD7768BSTZ Specifications
