AD779KD

AD779KD Overview

Product belongs to the AD779 series. This product is categorized as Analog to Digital Converters Type: S/H ADC Tube is the packaging method for this product Through Hole Mounting-Style CDIP-SB-28 The Single Ended for this product is CMOS/TTL. Operational temperature range: 0°C ~ 70°C Number of channels: 1 Channel Supplier device package: 28-CDIP This product's 128k. Data-Interface: Parallel 14 bits The Voltage-Supply-Analog is ±12V. The Voltage Supply Digital for this product is 5V. Configuration S/H-ADC The architecture of this product is SAR . External, Internal is the reference type. 1 units Power-off control: 560 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C This product has a Power Consumption of 560 mW. Parallel interface type Signal-to-Noise Ratio of 81 dB The 0.11 %FSR of this product is 0.2%. Number-of-Converters: 1 Converter 128 kS/s Sampling Rate Integral Nonlinearity: +/- 2 LSB

AD779KD Image

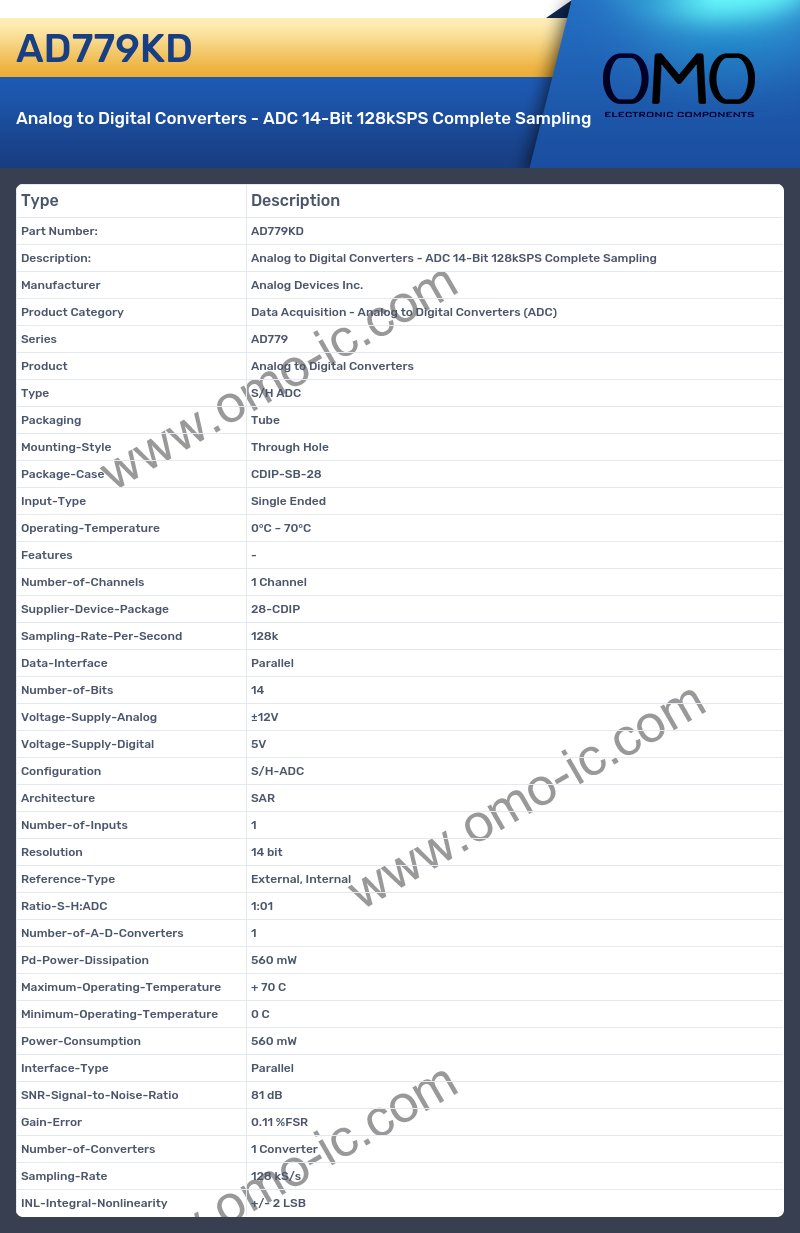

AD779KD Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series AD779
• Product Analog to Digital Converters
• Type S/H ADC
• Packaging Tube
• Mounting-Style Through Hole
• Package-Case CDIP-SB-28
• Input-Type Single Ended
• Operating-Temperature 0°C ~ 70°C
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 28-CDIP
• Sampling-Rate-Per-Second 128k
• Data-Interface Parallel
• Number-of-Bits 14
• Voltage-Supply-Analog ±12V
• Voltage-Supply-Digital 5V
• Configuration S/H-ADC
• Architecture SAR
• Number-of-Inputs 1
• Resolution 14 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1:01
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 560 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Power-Consumption 560 mW
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 81 dB
• Gain-Error 0.11 %FSR
• Number-of-Converters 1 Converter
• Sampling-Rate 128 kS/s
• INL-Integral-Nonlinearity +/- 2 LSB
